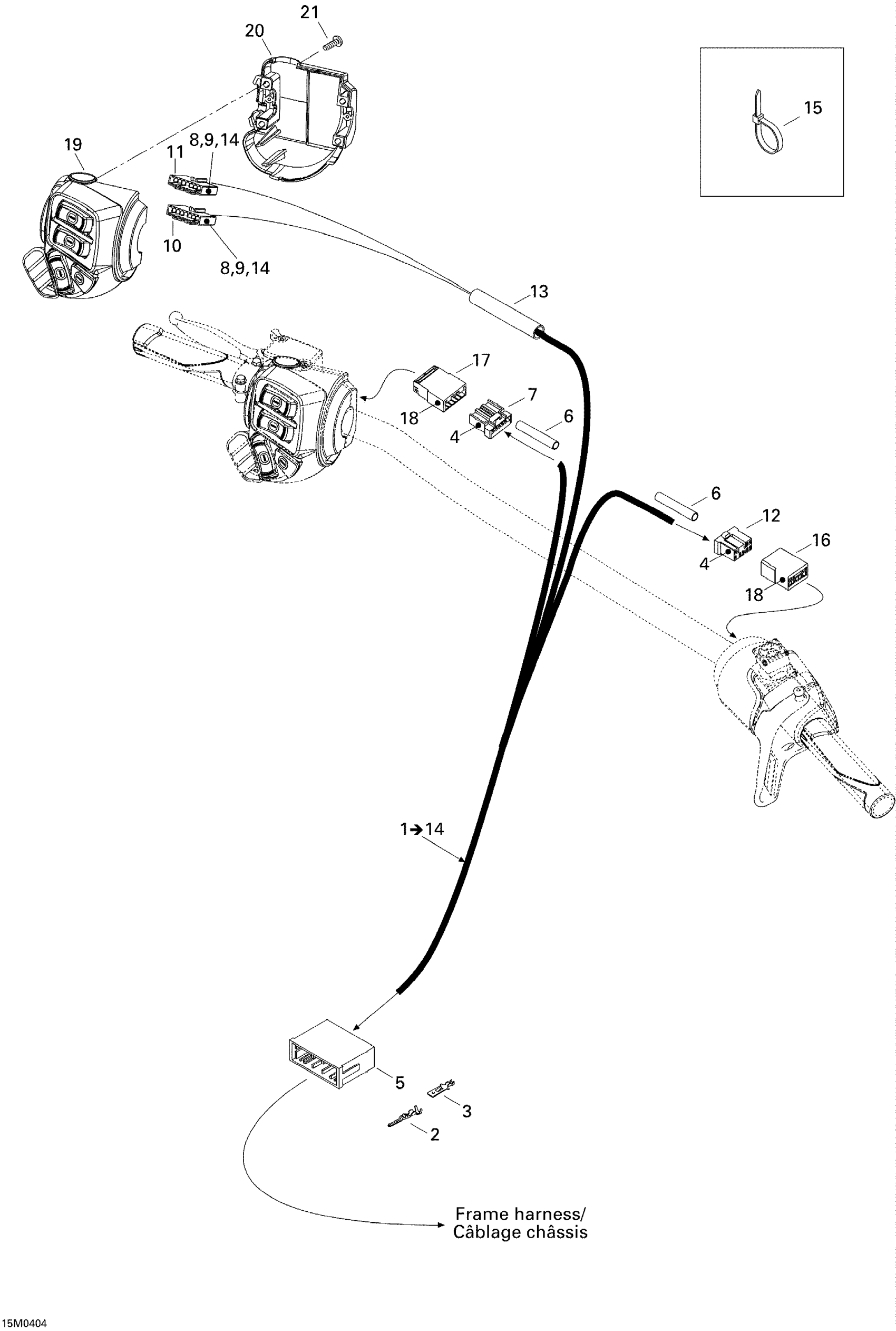

Ski-Doo Legend 500 SS, 2004 10- Steering Harness Diagram

#

Description
Price

1

Steering Wiring Harness | SPORT / INCLUDES ITEMS 1 TO 14

515176009

Unavailable

STEERING WIRING HARNESS - Call your local BRP dealership | X, Includes 3 to 16

515175991

Unavailable

2

Male Terminal

515175232

$1.58

3

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

4

Female Terminal

515175231

$4.39

5

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

6

Tubing 10 MM 1000MM Long

219704407

$2.79

7

Female Terminal Housing, 6 Circuits

515175543

$9.49

8

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

9

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

10

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

11

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

12

Female Terminal Housing, 8 Circuits

515175819

$7.62

13

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

14

Female Terminal

515175941

$2.69

15

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

16

Male Terminal Housing, 8 Circuits

515175817

$8.79

17

Male Terminal Housing, 6 Circuits

515175662

$8.79

18

Male Terminal

515175232

$1.58

19

LH Switch Housing

515176062

$209.99

20

Switch Housing Plate

515175926

$20.99

21

Torx Screw #8-18

250000263

$1.04
