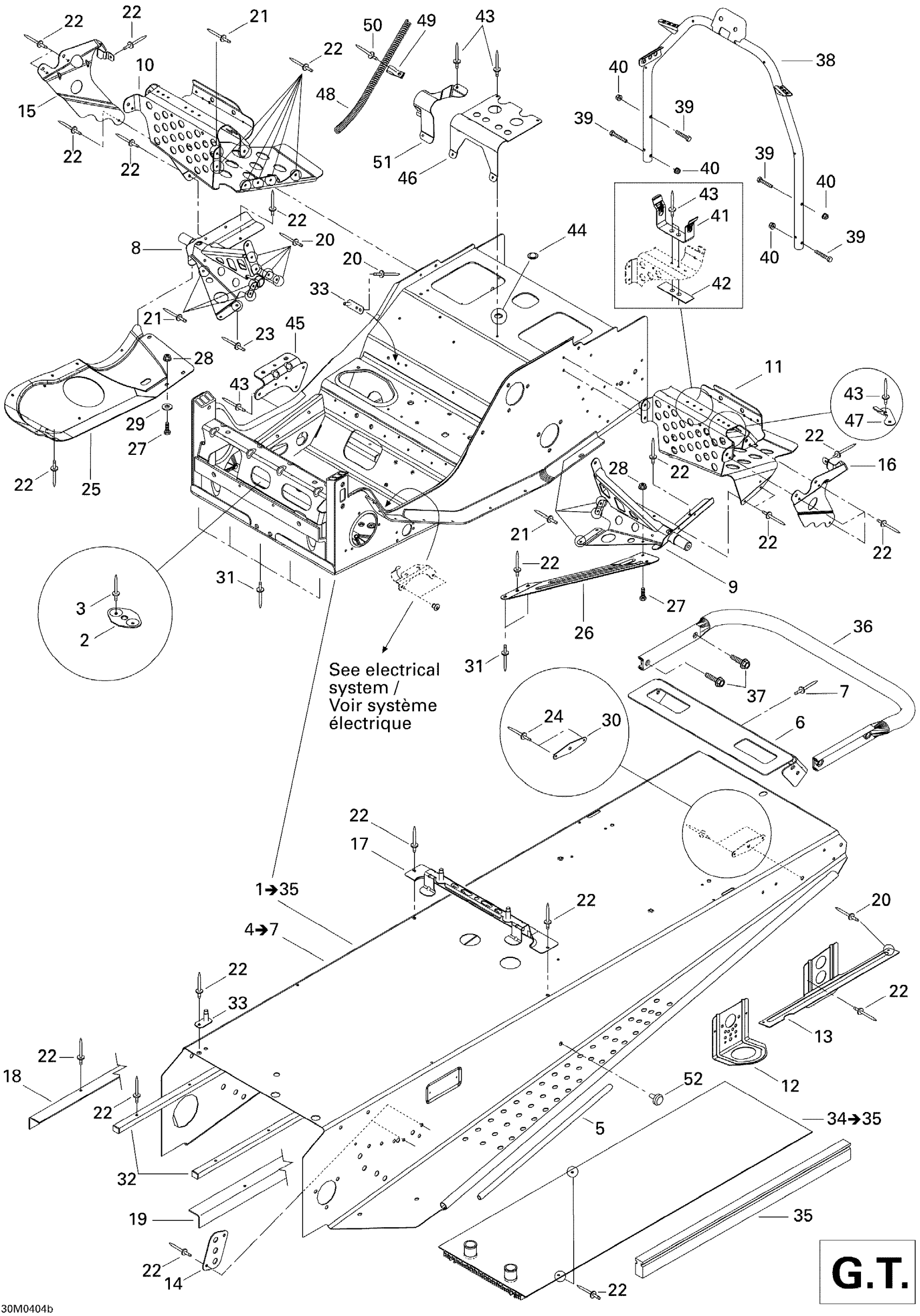

Ski-Doo Legend 500 SS, 2004 09- Frame (GT) Diagram

#

Description
Price

1

Frame | 700 / INCLUDES ITEMS 1 TO 35

415128554

Unavailable

Frame | 600 / INCLUDES ITEMS 1 TO 35

415128555

Unavailable

2

Plate Bracket

518201307

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

Forming Frame | Includes 2 to 5

415128615

Unavailable

5

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

6

Rear Cap

518322734

Unavailable

7

Pop Rivet 3/16"

390402200

$0.35

8

RH Footrest Support

518320506

Unavailable

9

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

10

RH Footrest

518323563

Unavailable

11

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

12

Front Bracket

518321495

Unavailable

13

RH Rear Bracket

518323051

Unavailable

LH Rear Bracket

518323055

Unavailable

14

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

15

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

16

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

17

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

18

RH Frame Reinforcement

518323190

Unavailable

19

LH Frame Reinforcement

518323191

Unavailable

20

Avex Rivet

390909200

$0.30

21

Avex Rivet

390909100

$0.30

22

Pop Rivet 3/16"

390402200

$0.35

23

Pop Rivet 3/16"

390402300

$0.75

24

Pop Rivet 3/16"

390402400

$0.35

25

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

RH Bottom Pan Plate | 600

518319760

Unavailable

26

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

27

Hex. Screw M5 X 20

207152044

$0.90

28

Hex. Flange Elastic Nut M5

233251414

$1.04

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Rear Reinforcement

518316767

Unavailable

31

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

32

Frame Protector

518321543

Unavailable

33

Double Bracket

518323173

Unavailable

34

Rear Radiator | Includes 15 - 16. Grand Touring 500.

518322905

Unavailable

35

Radiator Protector | Grand Touring 500.

518321656

Unavailable

36

Rear Bumper | Includes 32 to 33

517272510

Unavailable

37

Hex. Flange Screw M8 X 20

207682044

$1.15

38

Handle Support

518322755

Unavailable

39

Hex. Flange Screw M6 X 35

207663544

$0.90

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Belt Guard Bracket

518202100

$17.49

42

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

43

Pop Rivet 3/16"

390402200

$0.35

44

CAP - Call your local BRP dealership

414859400

Unavailable

45

Muffler Support

518322635

Unavailable

46

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

47

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

48

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

49

Open Clamp

518321570

$7.69

50

Pop Rivet 3/16"

293150103

$0.55

51

Hose Support

518322699

Unavailable

52

Panel Fastener

518321954

$7.69
