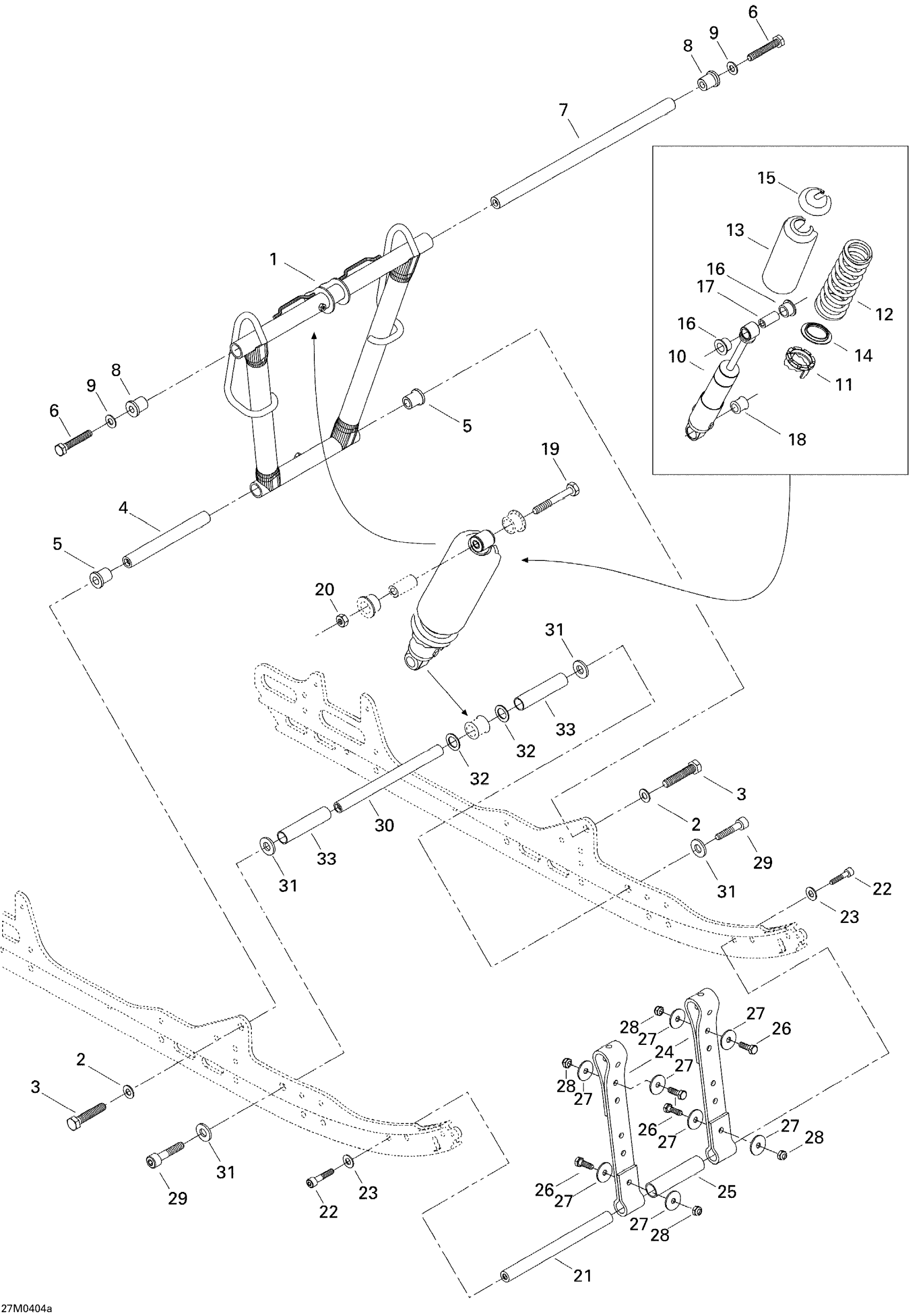

Ski-Doo Legend 500 SS, 2004 Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.20

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$11.17

9

Washer

732900049

$0.57

10

Center Shock

503189804

Unavailable

11

Adjustment Cam

505073625

$12.18

12

SPRING - Call your local BRP dealership

503189325

Unavailable

13

Protector

503193663

$35.35

14

Spring Guide

503191872

$2.18

15

Spring Stopper

706200881

$10.30

16

Urethane Bushing

503189117

$6.88

17

Bushing | Includes 240d to 240d1

503189282

$4.18

18

Bushing

503189271

$10.46

19

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

20

Elastic Locking Nut M10 X 1.5

233601416

$1.68

21

AXLE - Call your local BRP dealership

503189562

Unavailable

22

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

23

Washer

503189564

$0.72

24

Stopper Strap, Large

503190563

Unavailable

25

Spacer

503189265

$4.75

26

Hex. Screw M8 X 25

207182544

$0.74

27

Flat Washer

224081301

$0.86

28

Hex. Elastic Stop Nut M8

232581414

$0.47

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

31

Washer

503189276

$3.20

32

Washer

503189273

$3.20

33

SPACER - Call your local BRP dealership

503189274

Unavailable
