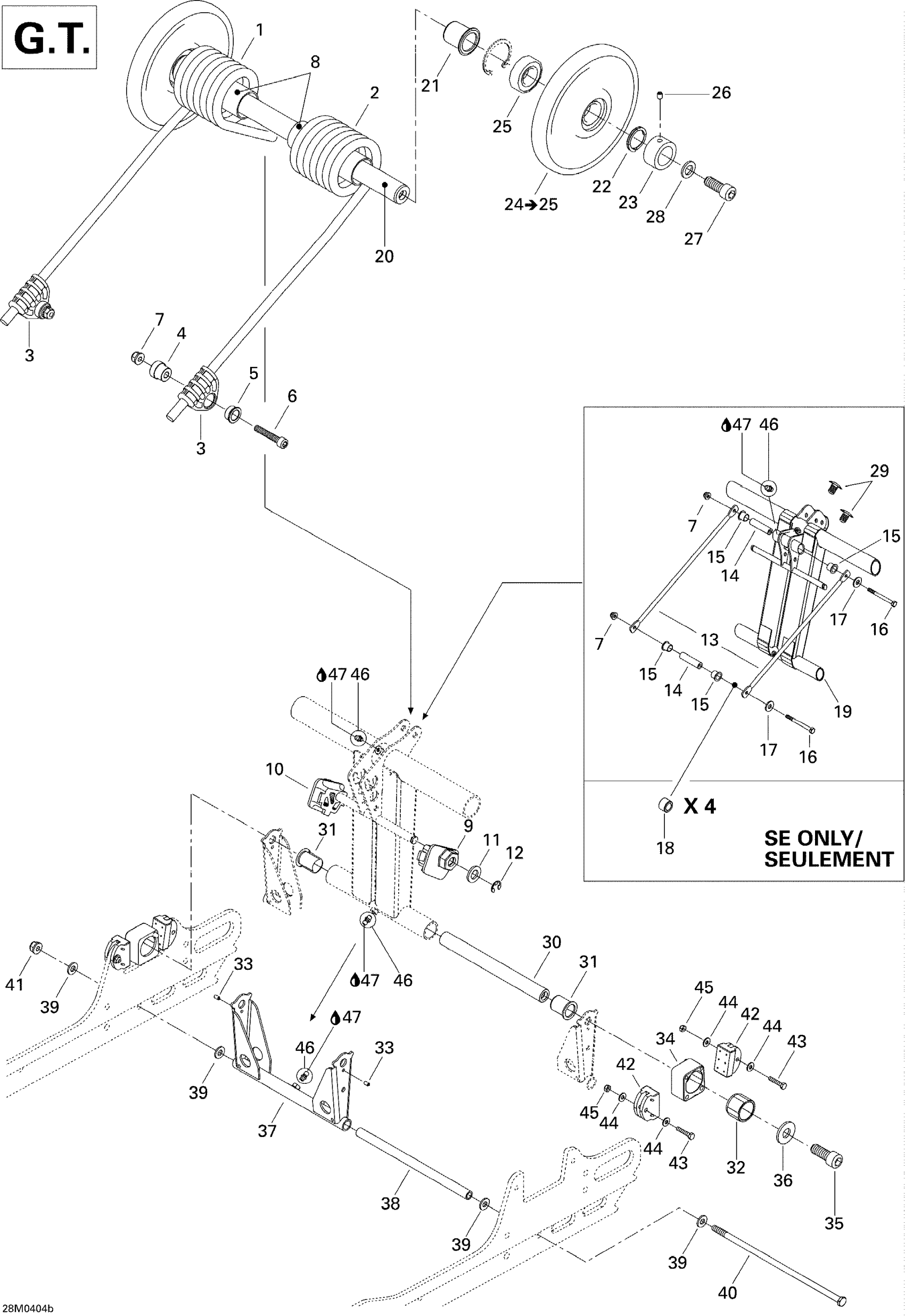

Ski-Doo Legend 500 SS, 2004 Rear Arm GT Diagram

#

Description
Price

1

RH SPRING, EUROPE - Call your local BRP dealership | SE Europe

503189992

Unavailable

1

RH SPRING, EUROPE - Call your local BRP dealership | SE Europe

503189992

Unavailable

1

RH SPRING, SQUARE - Call your local BRP dealership | SE

503190492

Unavailable

2

LH Spring, Europe | SE Europe

503189994

Unavailable

2

LH Spring, Europe | SE Europe

503189994

Unavailable

2

LH SPRING, SQUARE - Call your local BRP dealership | SE

503190494

Unavailable

3

Spring Support

503189657

Unavailable

4

Spring Guide Axle

503188934

Unavailable

5

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

6

Socket Head Screw M8 X 45

205084544

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.68

12

E-Circlip

293370013

Unavailable

13

THROTTLE ROD - Call your local BRP dealership

503190111

Unavailable

14

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

14

Bar Axle (Short)

503190113

$37.66

15

Swivel Bushing

503191555

Unavailable

16

Hex. Screw M8 X 90

207089044

$2.82

16

Hex. Screw M8 X 130

230083044

Unavailable

17

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

18

Spacer

503190114

$15.35

19

Rear Arm

503190110

Unavailable

20

Upper Axle

503189412

Unavailable

21

CUSHION - Call your local BRP dealership

503189288

Unavailable

22

Axle Spring

503189146

$7.54

23

Retainer Ring

503189147

Unavailable

24

Wheel 165 Ass’Y | Includes 24 to 25

503190269

Unavailable

25

Ball Bearing

293350115

Unavailable

26

Socket Set Screw M6 X 8

206260844

$1.25

27

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

28

Washer

503189276

Unavailable

29

Black, Dart

414644300

$0.78

30

REAR LOWER AXLE - Call your local BRP dealership

503189413

Unavailable

31

Cushion

503191640

$5.71

32

Block Guide

503189488

Unavailable

33

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

34

LH Block

503189152

Unavailable

34

RH Block

503189170

Unavailable

35

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

36

Washer

503189276

Unavailable

37

PIVOT ARM - Call your local BRP dealership

503189819

Unavailable

38

Pivot Arm Axle

503189156

Unavailable

39

Washer

503189157

$3.20

40

Bolt M8 X 248mm

503192440

Unavailable

41

Hex. Flange Elastic Nut M8

233281414

Unavailable

42

Rubber Stopper

503191291

Unavailable

43

Hex. Screw M5 X 30

207053044

Unavailable

44

Washer

250200016

Unavailable

45

Elastic Stop Nut M5

232551414

Unavailable

46

Grease Fitting

408200700

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
