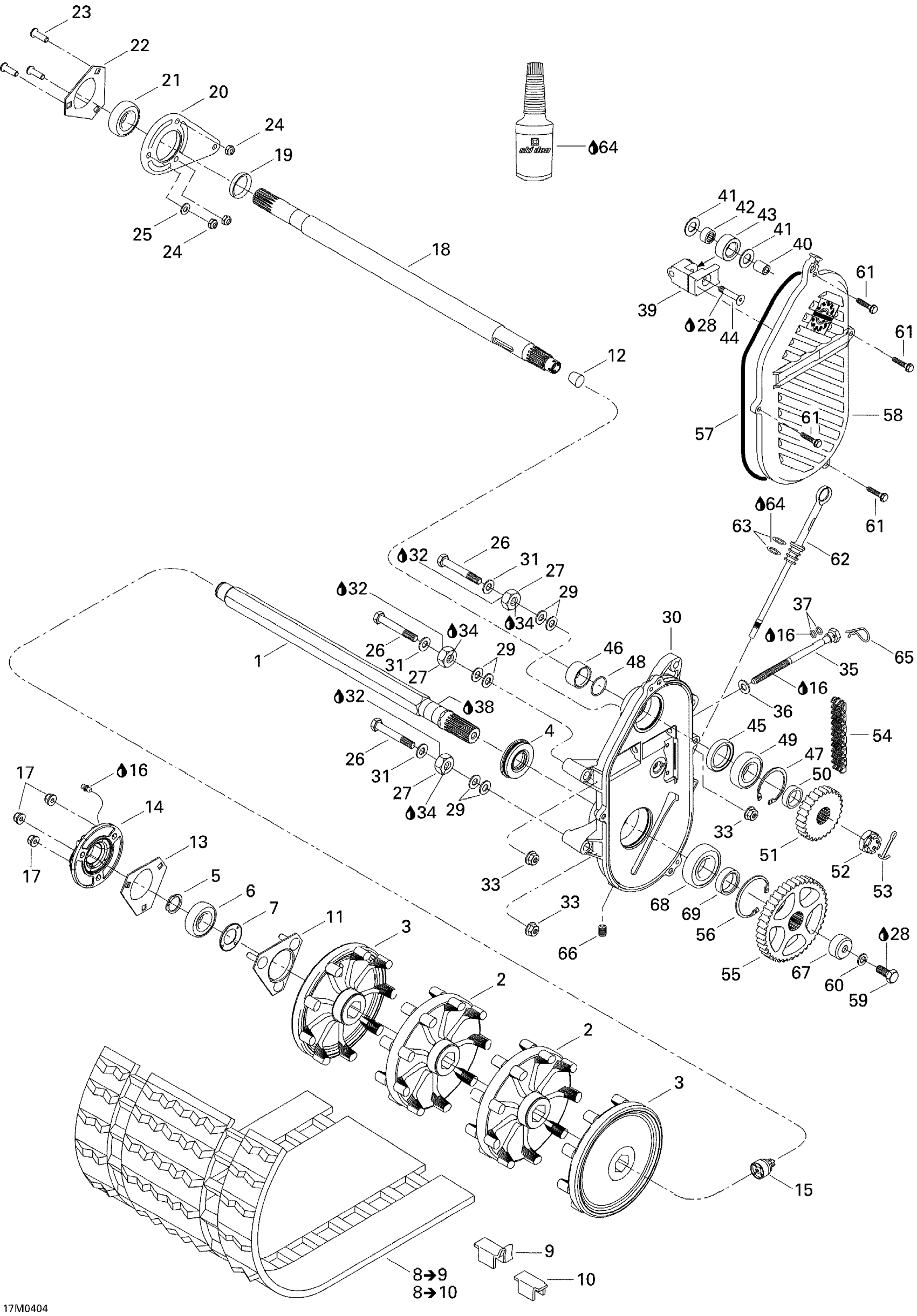

Ski-Doo Legend 500 SS, 2004 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

Track Ass’Y (15”X136"X 1.250") | Includes 8 to 9 / Legend Sport GT (Europe)

504152028

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.29

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Flange, Speedo

504152173

$76.49

15

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

19

Spacer

504149100

$12.99

20

Casting Spacer

80044200

Unavailable

21

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

22

FLANGE - Call your local BRP dealership

501025000

Unavailable

23

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Flat Washer 8 mm

234081410

$0.83

26

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

27

Spacer

504083800

Unavailable

28

Loctite 271, 10 ml

293800005

$26.99

29

WASHER - Call your local BRP dealership

504073700

Unavailable

30

CHAINCASE - Call your local BRP dealership This part replaces 504152064.

504153562

Unavailable

31

Washer

503183800

$3.28

32

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

33

Hex. Flange Elastic Nut M10

233201414

$1.58

34

Loctite 243, 10 ml

293800060

$21.49

35

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

36

Flat Washer 10 mm

234001410

$1.26

37

O-Ring

414484400

$7.51

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

Chain Tensioner

504151951

Unavailable

40

SPACER - Call your local BRP dealership

504080200

Unavailable

41

WASHER - Call your local BRP dealership

504080300

Unavailable

42

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

43

ROLLER - Call your local BRP dealership

414531300

Unavailable

44

SCREW - Call your local BRP dealership

732601144

Unavailable

45

Oil Seal

293200158

$14.22

46

SPACER - Call your local BRP dealership

507031500

Unavailable

47

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

48

O-RING - Call your local BRP dealership

414876700

Unavailable

49

Ball Bearing

293350115

$12.11

50

SHIM - Call your local BRP dealership

504147200

Unavailable

51

Sprocket 25 Teeth

504153912

$44.99

SPROCKET, 24 TEETH - Call your local BRP dealership

504139700

Unavailable

Sprocket 23 Teeth

504153911

$44.99

52

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

53

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

54

DRIVE CHAIN LARGE, 76 LINKS - Call your local BRP dealership

504151856

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

55

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

56

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

57

O-Ring

415046400

$24.99

58

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

59

Hex. Screw M10 X 25

207102544

$1.37

60

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

61

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

62

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

63

O-RING - Call your local BRP dealership

414969400

Unavailable

64

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

65

Hair Pin

414575600

$1.89

66

Plug 1/8”-27

504151921

$4.19

67

CAP - Call your local BRP dealership

504152104

Unavailable

68

Ball Bearing

504152005

$46.49

69

Shim

504152058

Unavailable
