Description

Price

1

Stator Plate A

420889905

$319.49

2

Female Terminal Housing, 4 Circuits

278001473

$26.99

3

Male Terminal

515175568

$9.12

4

Female Lock, 4 Circuits

278001474

$3.49

5

Female Terminal Housing, 2 Circuits

515175670

$8.39

6

Female Terminal

278000632

$2.09

7

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

8

Female Lock, 2 Circuits

515175675

$4.55

9

Sealing Cap

293000052

$3.19

10

Flywheel

410922966

Unavailable

11

Pickup Ass'y

410922948

$199.99

12

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

13

Female Terminal

278000632

$2.09

14

Female Terminal | Includes 2d,3a,3b,5a,10,11d

278000661

Unavailable

15

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

16

Sealing Cap

293000052

$3.19

17

Socket Head Screw M6 X 30

205063044

$1.69

18

Torx Screw M6 X 16

420640324

$2.11

19

Starting Pulley

420852590

$29.49

20

Flat Washer

420827405

$1.69

21

Socket Head Screw M8 X 12

420841520

$1.69

22

Loctite 243, 10 ml

293800060

$21.49

23

Not Available As Spare Part - Friction Washer

Unavailable

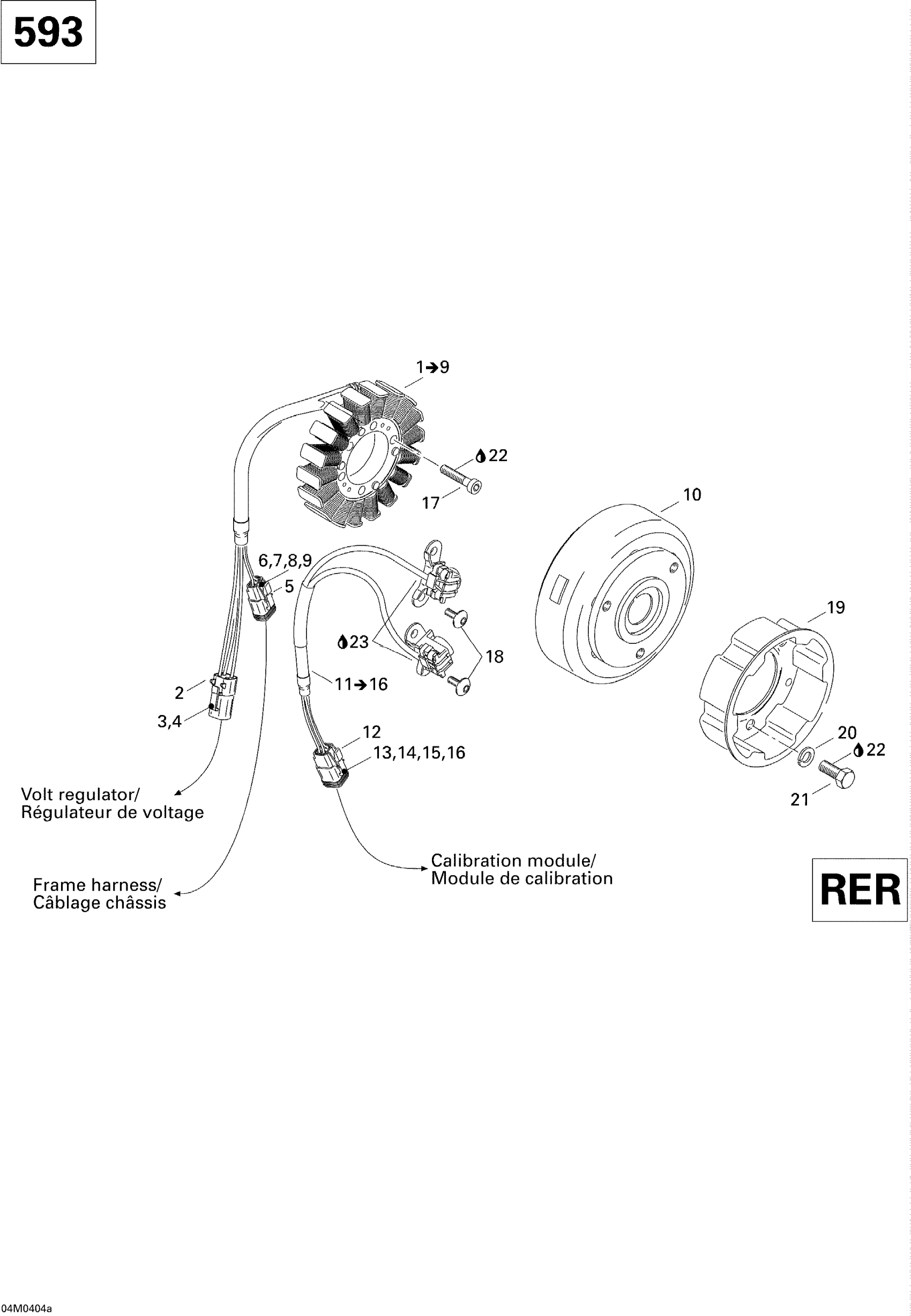

Ski-Doo Legend 500 SS, 2004 03- Magneto (12V, 360W) (593) Diagram

Stator Plate A

Female Terminal Housing, 4 Circuits

Male Terminal

Female Lock, 4 Circuits

Female Terminal Housing, 2 Circuits

Female Terminal

FEMALE TERMINAL - Call your local BRP dealership

Female Lock, 2 Circuits

Sealing Cap

Flywheel

Pickup Ass'y

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

Female Terminal

Female Terminal | Includes 2d,3a,3b,5a,10,11d

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

Sealing Cap

Socket Head Screw M6 X 30

Torx Screw M6 X 16

Starting Pulley

Flat Washer

Socket Head Screw M8 X 12

Loctite 243, 10 ml

Not Available As Spare Part - Friction Washer
