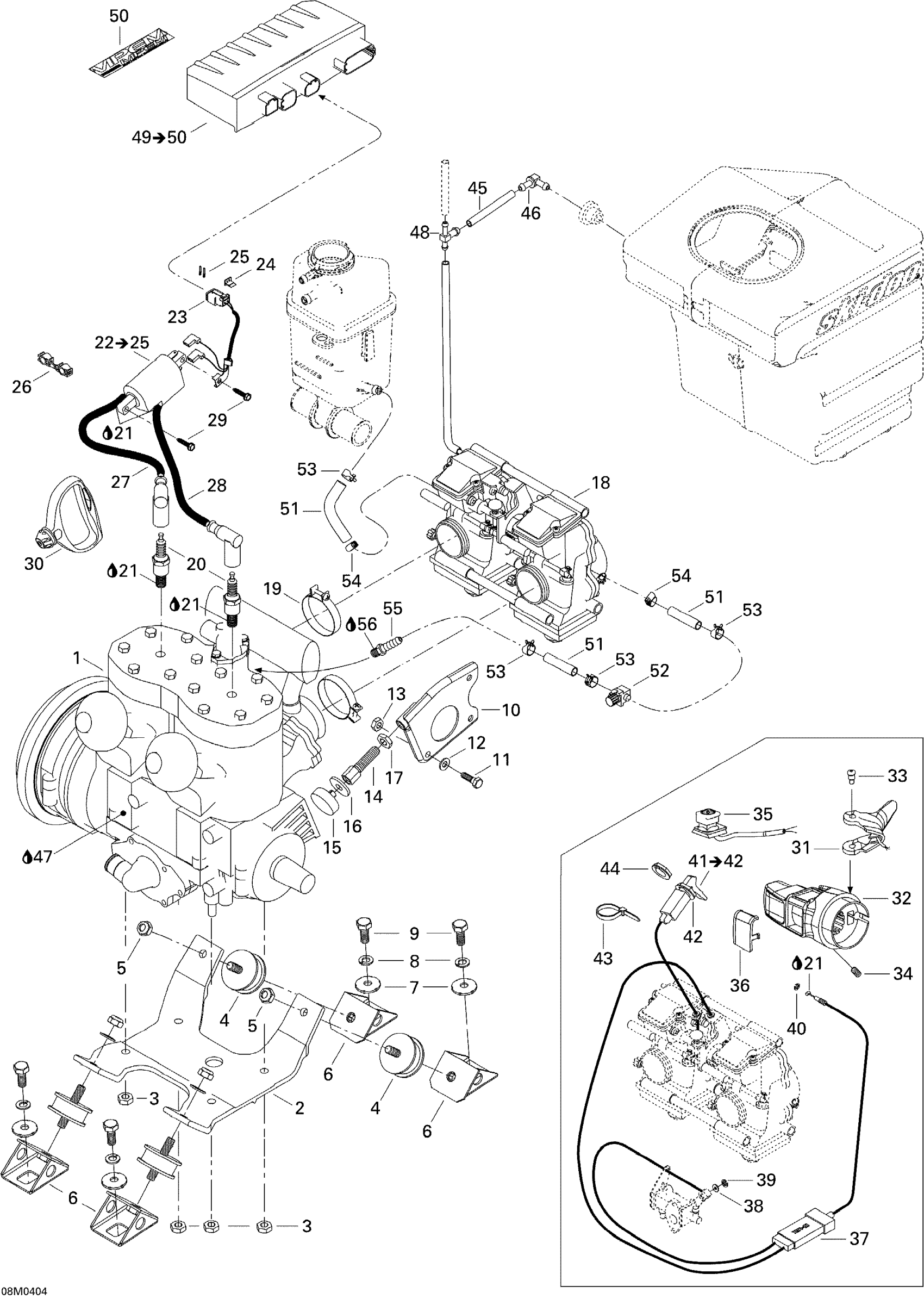

Ski-Doo Legend 500 SS, 2004 01- Engine Support Diagram

#

Description
Price

1

«593» Engine | 600

400509746

Unavailable

«693» Engine (Rer) | 700

400604026

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership

512059488

Unavailable

3

Hex. Flange Elastic Nut M10

233201414

$1.58

4

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Engine Support

512050900

Unavailable

7

Lock Washer

512056700

$3.17

8

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

9

Hex. Screw M10 X 25

207102544

$1.37

10

Support Plate

512058500

Unavailable

11

Hex. Screw M8 X 20

207182044

$0.74

12

Flat Washer 8 mm

234081410

$0.83

13

Hex. Elastic Stop Nut M8

232581414

$0.56

14

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

15

Stopper

512059056

Unavailable

16

WASHER - Call your local BRP dealership

512059057

Unavailable

17

Nut Hexagonal RH.

232026414

$1.48

18

Carburetor Kit Tm 40 B-241 | 700

403138730

Unavailable

Carburetor Kit Tm 40 B-232 | 600

403138731

Unavailable

19

Gemi Clamp

512059835

$11.60

20

Spark Plug NGK BR9ECS-5

512059552

$10.59

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Ignition Coil | INCLUDES ITEMS 22 TO 25

512059512

Unavailable

23

Female Connector, 2 Circuits

409207300

$9.85

24

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

25

Female Terminal

278000632

$2.09

26

Plastic Clip, Spark Plug Wire

410914600

$5.61

27

Cable Ass’y, 375 mm

512059696

$80.99

28

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

29

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

30

Starter Grip

572084400

$14.83

31

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

32

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

33

Flange Screw

732601143

$4.12

34

Socket Set Screw M8 X 10

414440800

$4.12

35

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

36

Switch Cover

572100901

$14.83

37

THROTTLE CABLE - Call your local BRP dealership | SPORT

512059679

Unavailable

Throttle Cable | SE

512059680

Unavailable

38

Flat Washer 8 mm, Nylon

234081100

$1.39

39

Circlip

414753500

$0.71

40

Circlip

414274500

$0.90

41

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

42

Lock Washer, Interior Teeth

394103300

Unavailable

43

Tie-Rap 173 mm

293750009

$1.04

44

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

45

Polyurethane Hose 10000Mm Long

219704410

$56.99

46

Elbow Male Connector

414580600

$4.23

47

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

48

T-Fitting

572045500

$7.51

49

CALIBRATION MODULE 700 DPM RER - Call your local BRP dealership | 700 / INCLUDES ITEMS 49 TO 50

512059832

Unavailable

CALIBRATION MODULE 600 DPM RER - Call your local BRP dealership | 600 / INCLUDES ITEMS 49 TO 50

512059833

Unavailable

50

Electrical Box Decal

516000245

Unavailable

51

Hose 8 mm

509000093

Unavailable

52

Valve 5/16” | Grand Touring 500.

512059324

$44.99

53

Spring Clamp

414655700

$0.72

54

Tridon Gear Clamp

293650170

$1.99

55

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

56

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
