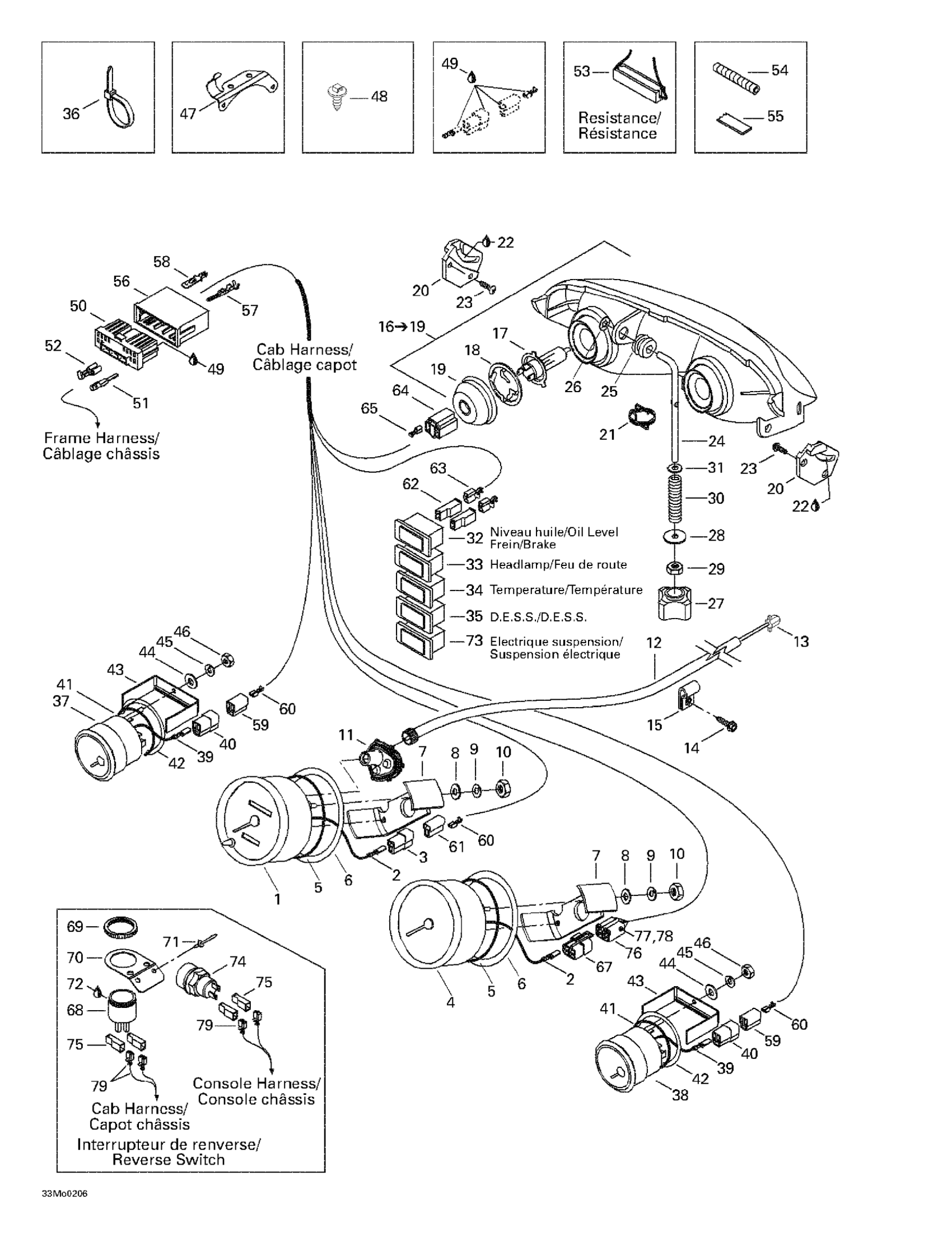

Ski-Doo Legend 500/600/700/800, 2002 10- Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175621

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.99

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

18

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

21

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

22

Grease Tube Lmz, 400 G

413707500

Unavailable

23

Headlamp Screw

732601315

Unavailable

24

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

25

Grommet - Call your local BRP dealership

415100800

Unavailable

26

Push Nut

732610072

$2.19

27

Handle - Call your local BRP dealership

515175548

Unavailable

28

Washer

224060251

$0.58

29

Elastic Stop Nut M6

232561414

$0.55

30

SPRING - Call your local BRP dealership

415100600

Unavailable

31

Flat Washer 6 mm

234061410

$1.36

32

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

33

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

34

PILOT LAMP - Call your local BRP dealership

515175727

Unavailable

Pilot Lamp (Temperature) (SE) | Legend 600. Legend 800.

515175731

Unavailable

35

Pilot Lamp (Reverse/D.E.S.S.)

515175729

Unavailable

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

37

Temperature Gauge

515175342

Unavailable

38

FUEL GAUGE - Call your local BRP dealership

515175343

Unavailable

39

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

40

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

41

O-RING - Call your local BRP dealership

414807200

Unavailable

42

WASHER - Call your local BRP dealership

517258600

Unavailable

43

Case Holder

415099800

Unavailable

44

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

45

Lock Washer | SE Models

414833700

Unavailable

46

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

47

Cable Support

515175254

Unavailable

48

Mount Dart

293730040

$1.04

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

Female Terminal Housing, 13 Circuits

515175350

$14.24

51

Female Terminal

515175231

$4.39

52

Female Terminal

515175282

$7.86

53

Resistance

515175241

$17.99

54

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

Tubing 10 MM 1000MM Long

219704407

$2.79

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 16 Mm 1000Mm Long

219704408

$7.49

55

Tape

293740005

Unavailable

56

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

57

Male Terminal

515175232

$1.58

58

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

59

Female Housing

409204300

Unavailable

60

Female Terminal

561503100

$2.41

61

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

62

Female Terminal Housing, 1 Circuit

409010400

$7.62

63

Female Terminal

409010100

$5.61

64

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

65

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

66

Hood Harness

515175641

Unavailable

67

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

68

HORN - Call your local BRP dealership

515176035

Unavailable

69

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

70

PLATE - Call your local BRP dealership

515175688

Unavailable

71

Pop Rivet 3/16"

390402200

$0.35

72

Silicone Sealant 51388, 300 ml

296000309

$36.99

73

Pilot Lamp (Temperature) (SE) | Legend 600. Legend 800.

515175731

Unavailable

74

Push Button

415130372

$122.49

75

Female Terminal Housing, 1 Circuit

409010400

$7.62

76

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

77

Male Terminal

409009200

Unavailable

78

Male Terminal

409009300

Unavailable

79

Female Terminal

409010100

$5.61
