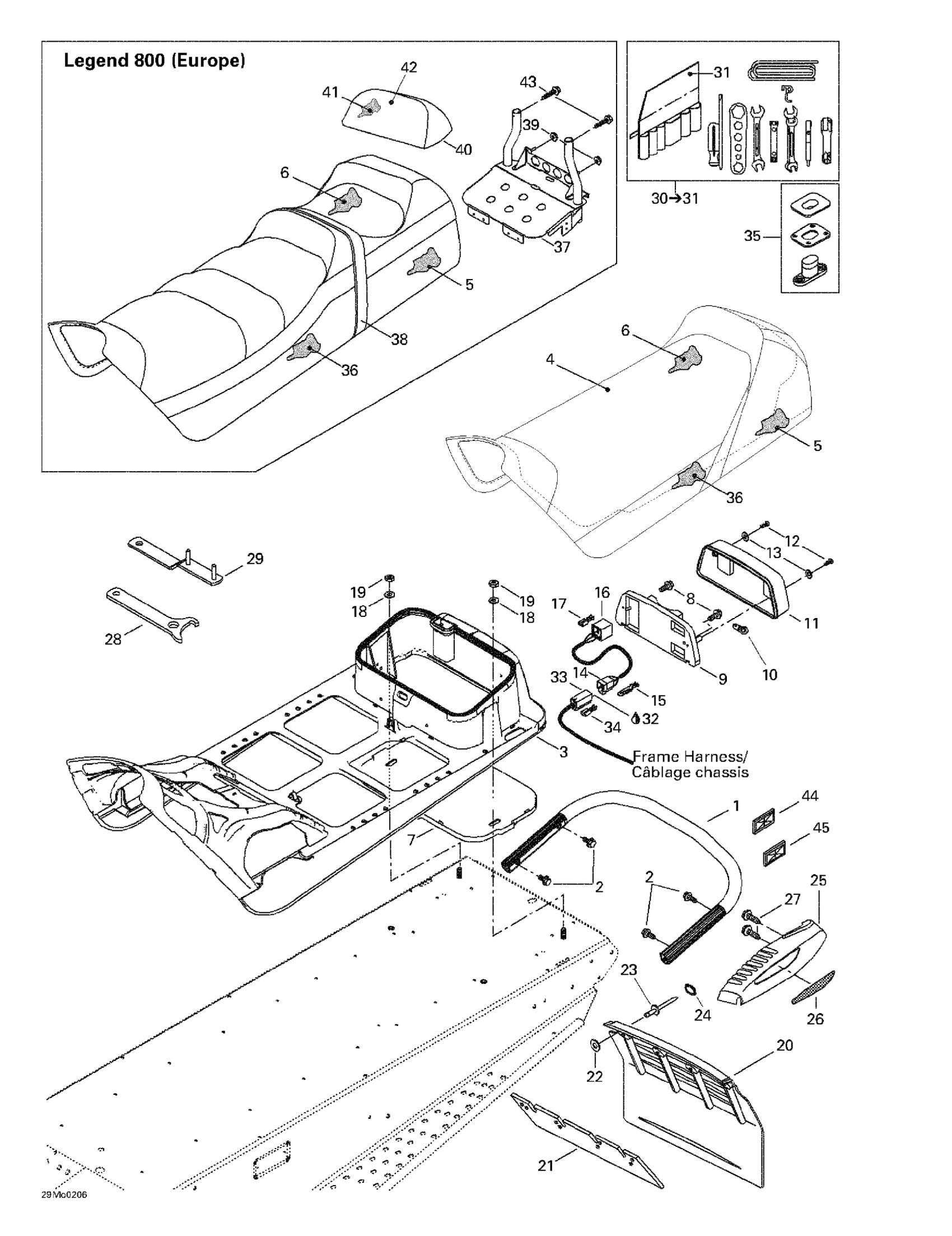

Ski-Doo Legend 500/600/700/800, 2002 09- Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Seat Base

510003983

Unavailable

Sub-Seat

510003980

Unavailable

4

Seat Cover | Legend 380 F. Legend 500 F.

510003963

Unavailable

Seat Cover (Europe) | Legend 800.

510003986

Unavailable

5

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

6

Rear Seat Foam

510003945

Unavailable

Seat Foam (Europe) | Legend 800.

510003934

Unavailable

7

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

8

Hex. Screw #10 X 1"

732603006

Unavailable

9

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

10

Bulb

520000758

$9.10

11

Lens

414513700

$28.99

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

15

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

16

Female Terminal Housing, 3 Circuits

515175250

Unavailable

17

Female Terminal

561503100

$2.41

18

Flat Washer 8 mm

234082410

$1.47

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

SNOW GUARD - Call your local BRP dealership

520000229

Unavailable

21

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

22

Flat Washer

517225900

$0.18

23

Pop Rivet 3/16”

293150087

$0.93

24

Cap

415073300

Unavailable

25

RH MOULDING KIT - Call your local BRP dealership | Sport / SE

861777700

Unavailable

LH Moulding Kit | Sport / SE

861777800

Unavailable

26

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

27

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

28

Adjustment Wrench

529000035

$2.09

29

Adjustment Wrench | LT

520000126

$1.49

30

Tool Kit | Includes 12 to 13

529035596

$27.99

31

Tool Bag

520000047

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Female Housing

409204300

Unavailable

34

Female Terminal

561503100

$2.41

35

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

36

Seat Foam | Legend SE 800 SDI.

510004032

Unavailable

37

Seat Support (Europe) | Legend 800.

510003985

Unavailable

38

Seat Belt (Europe) | Legend 800.

510004037

Unavailable

39

Hex. Flange Elastic Nut M5

233251414

$1.04

40

Backrest Ass'y (Europe) | Legend 800.

510003763

Unavailable

41

Foam (Europe) | Legend 800.

414916100

Unavailable

42

Cover (Europe) | Legend 800.

414897300

Unavailable

43

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

44

Amber, Reflector

520000271

$19.99

45

White, Reflector

415037900

$22.99
