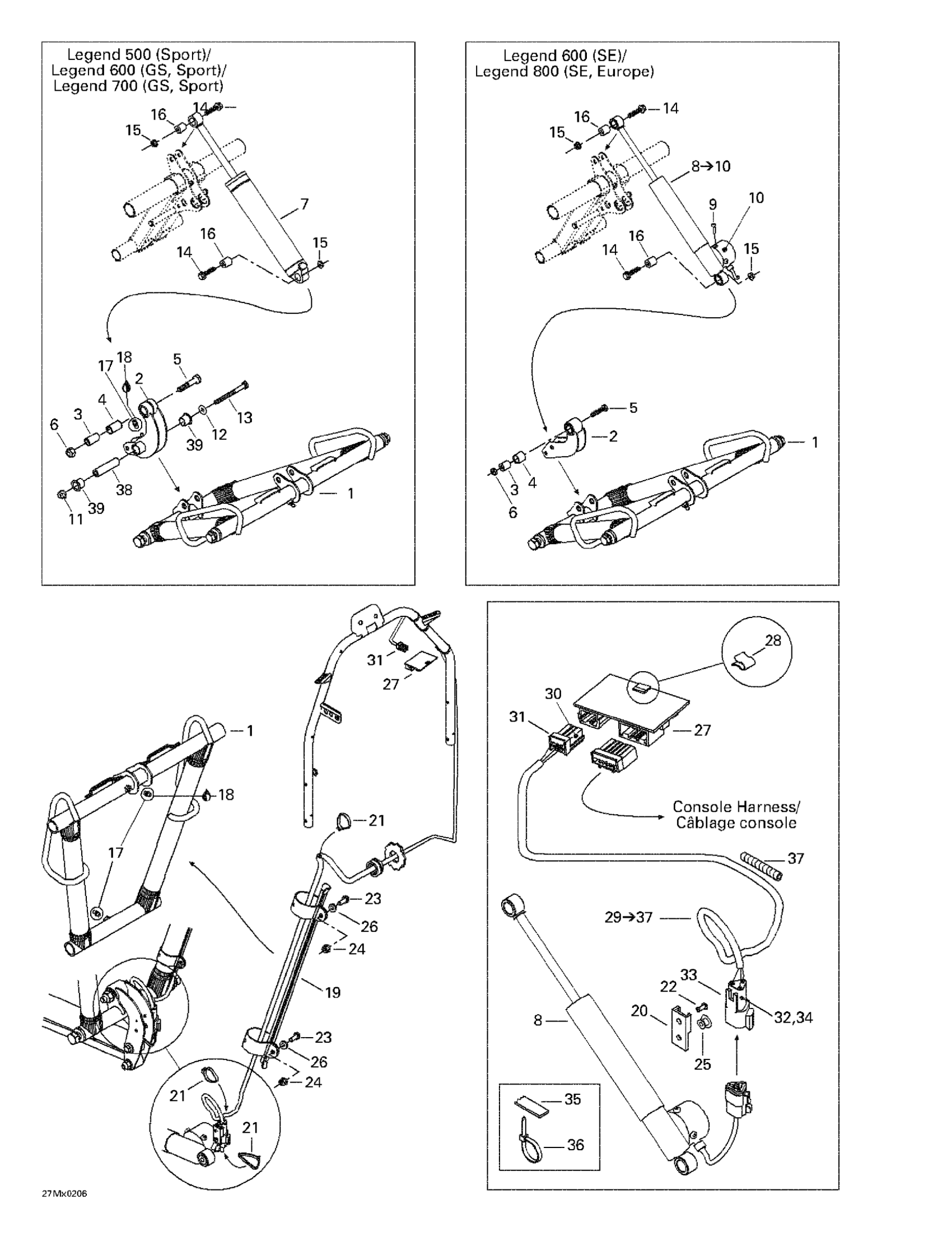

Ski-Doo Legend 500/600/700/800, 2002 Rear Shocks Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Rocker

503189845

Unavailable

Rocker

503189303

Unavailable

3

Rocker Axle

503189388

Unavailable

4

CUSHION - Call your local BRP dealership

503189626

Unavailable

5

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

6

Elastic Locking Nut M10 X 1.5

233601416

$1.69

7

Rear Shock

503191582

$164.49

Rear Shock (GS, SE) | Legend 500. Legend 600. Legend 700.

503189805

Unavailable

8

Electric Rear Shock (SE, Europe) | Includes 8 - 10. Legend 600. Legend 800.

503189781

Unavailable

9

Bolt (SE, Europe) | Legend 600. Legend 800.

503189692

Unavailable

10

Actuator (SE, Europe) | Legend 600. Legend 800.

503189693

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

13

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

14

Hex. Flange Screw M8 X 40

207684044

$1.48

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Bushing

414936000

$13.99

17

Grease Fitting

408200700

$3.49

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Grommet Support (SE, Europe) | Legend 600. Legend 800.

503189573

Unavailable

20

Bracket (SE, Europe) | Legend 600. Legend 800.

503189685

Unavailable

21

Tie-Rap 180 mm

414115200

$0.11

22

Pop Rivet 1/8" | SM5

390401600

$5.69

23

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

24

Hex. Flange Elastic Nut M5

233251414

$1.04

25

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

26

Flat Washer M5

234051410

$0.53

27

Electrical Control Unit (SE, Europe) | Legend 600. Legend 800.

515175547

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

ElectricSuspensionHarness(SE,Europe) | Includes 29 - 37. Legend 600. Legend 800.

515175553

Unavailable

30

Female Terminal

515175231

$4.39

31

Female Housing, 3 Circuits

515175495

$16.18

32

Male Terminal

278000631

$4.39

33

Male Housing

278002378

$13.99

34

Male Lock, 3 Circuits

409207600

$3.19

35

Tape

293740005

Unavailable

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

37

Hose 6 Mm 15000Mm Long

219704360

$132.49

38

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

39

ROD CUSHION - Call your local BRP dealership

503189861

Unavailable
