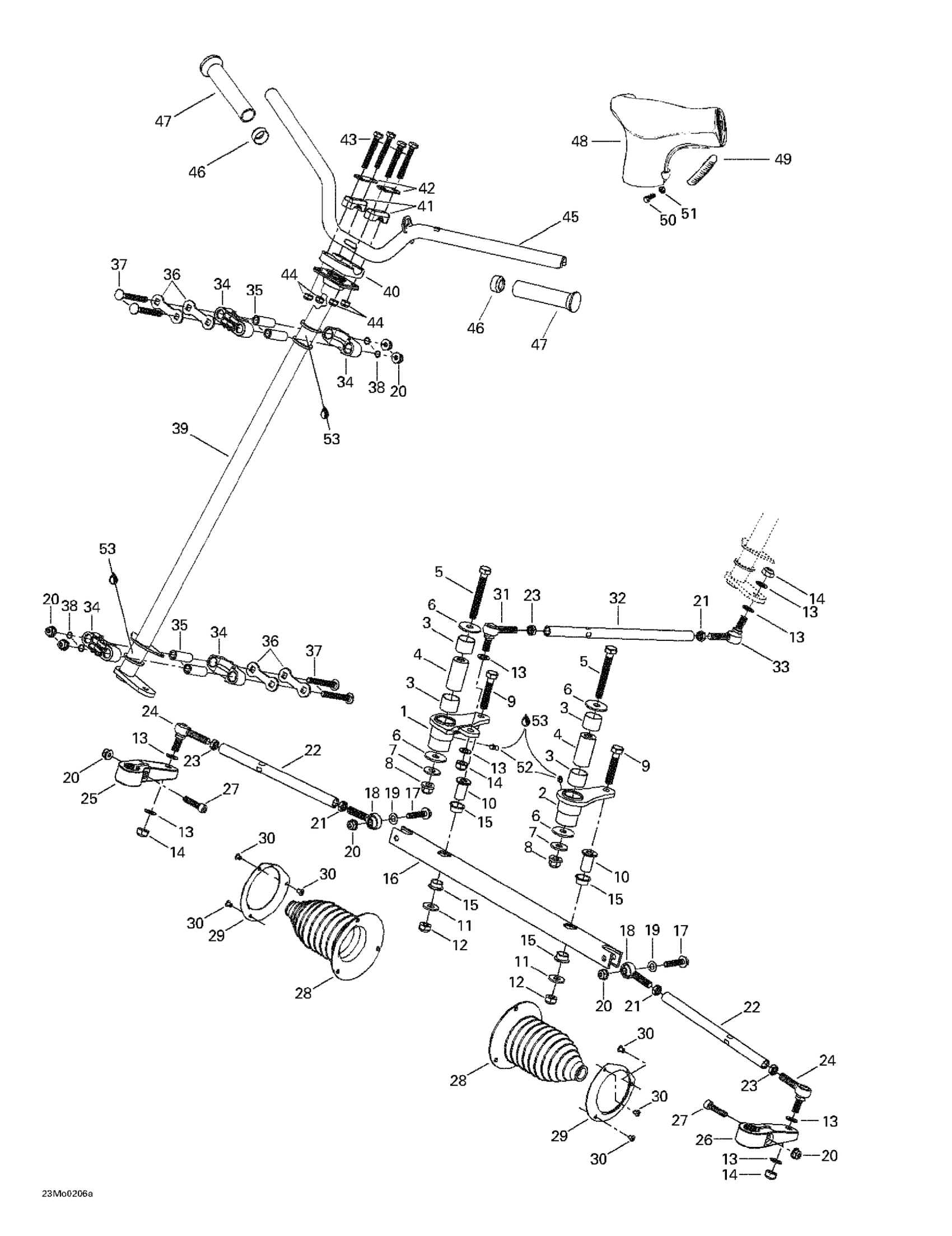

Ski-Doo Legend 500/600/700/800, 2002 07- Steering System Diagram

#

Description
Price

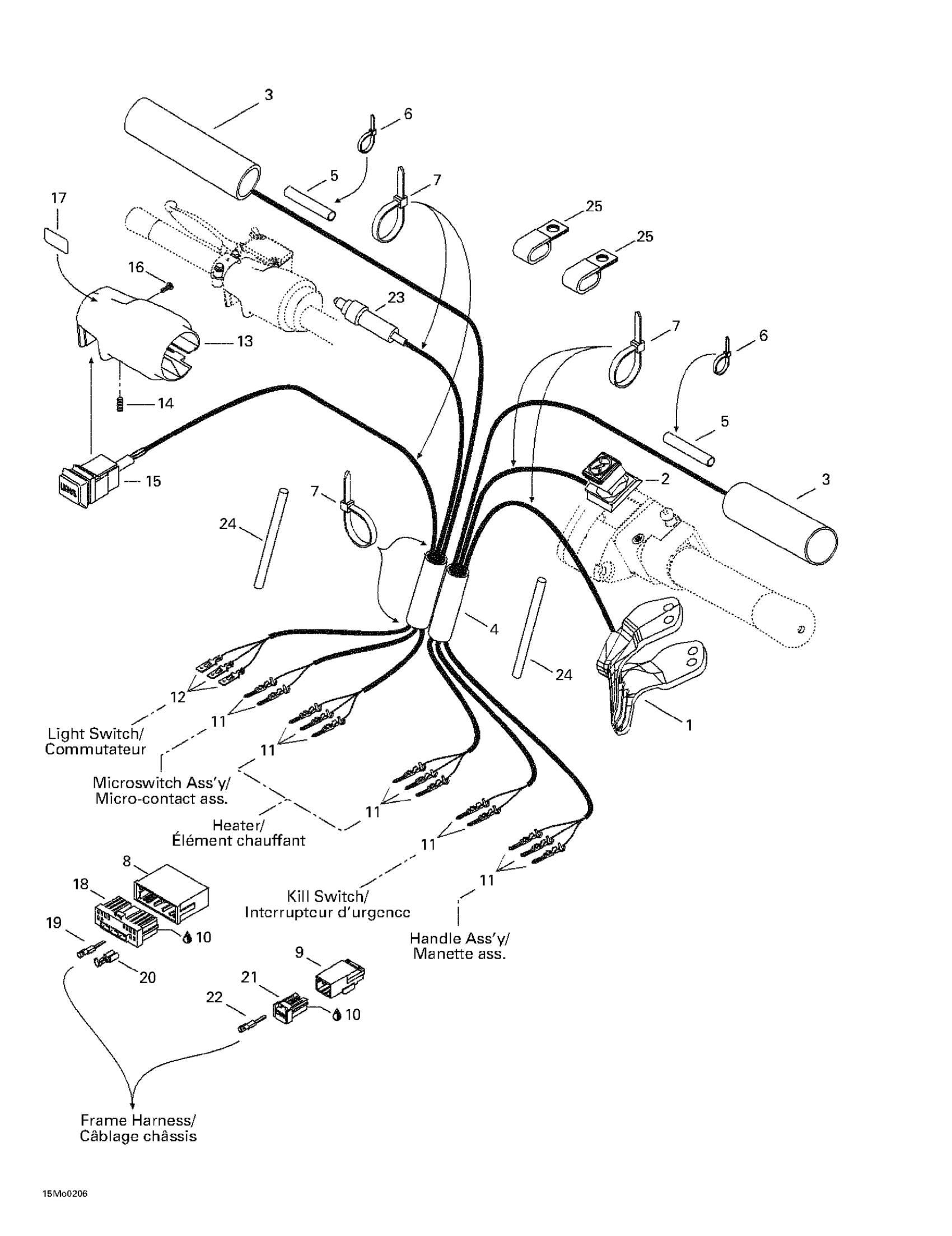

1

Throttle Handle

512059481

$76.99

1

Throttle Handle

512059481

$76.99

2

Kill Switch

515175410

Unavailable

2

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

3

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

3

Heating Element (SE) | Grand Touring 600. Grand Touring 800.

515175687

Unavailable

4

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

5

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

6

Tie Wrap 94 mm | 4X4

293750001

$1.03

7

Tie-Rap 180 mm

414115200

$0.11

8

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

9

Male Housing, 3 Circuits

515175494

$16.18

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Male Terminal

515175232

$1.58

12

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

13

BRAKE HOUSING - Call your local BRP dealership

515175696

Unavailable

14

Socket Set Screw M8 X 10

414440800

$4.12

15

Dimmer Switch

515175563

Unavailable

15

Light Switch (SE) | Grand Touring 600. Grand Touring 800.

515175686

Unavailable

16

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

17

Switch Decal

415025500

Unavailable

18

Female Terminal Housing, 13 Circuits

515175350

$14.24

19

Female Terminal

515175231

$4.39

20

Female Terminal

515175282

$7.86

21

Female Housing, 3 Circuits

515175495

$16.18

22

Female Terminal

515175231

$4.39

23

Microswitch

507032366

$98.99

24

Was 515175506 Tubing

219704426

$142.99

25

Open Clamp

515175507

$1.89
