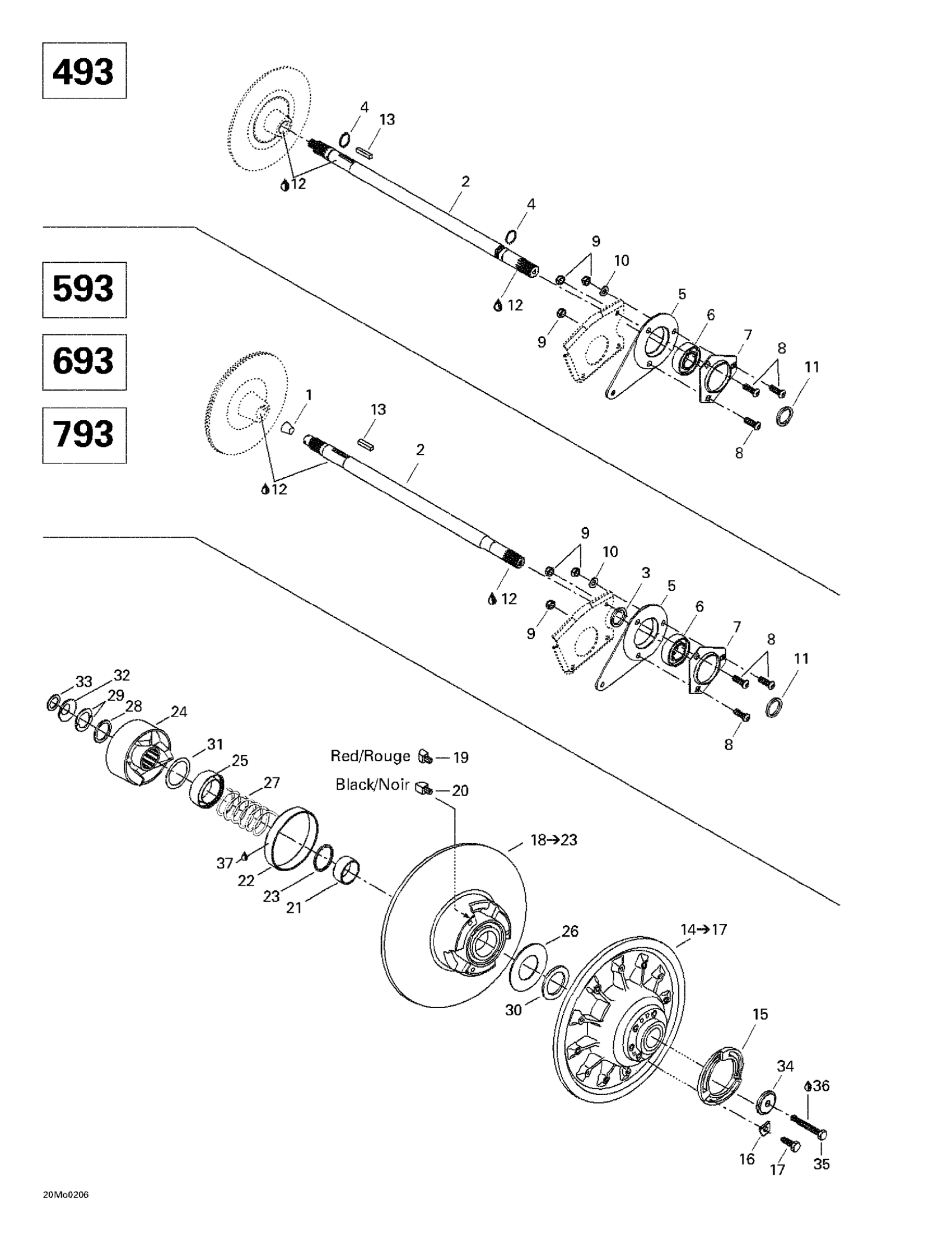

Ski-Doo Legend 500/600/700/800, 2002 05- Driven Pulley Diagram

#

Description
Price

1

CORK - Call your local BRP dealership

414784800

Unavailable

2

COUNTERSHAFT - Call your local BRP dealership | 550F

504151858

Unavailable

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

Spacer

504149100

$12.99

4

Circlip

371910000

$1.19

5

Spacer (Casting)

080044200

$21.99

6

BALL BEARING - Call your local BRP dealership

504152008

Unavailable

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

7

FLANGE - Call your local BRP dealership

501025000

Unavailable

8

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Flat Washer 8 mm

234081410

$0.83

11

Spacer

504149100

$12.99

12

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

13

KEY - Call your local BRP dealership

507021300

Unavailable

14

Fixed Flange Ass’Y | INCLUDES ITEMS 39 TO 42

417126527

Unavailable

15

Adjustment Ring

415005800

Unavailable

16

Adjustment Shim

415005900

Unavailable

17

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

18

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

19

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

20

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

21

Not Available As Spare Part - Friction Washer

Unavailable

22

BUSHING - Call your local BRP dealership

417126902

Unavailable

23

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

24

Cam Ass'y

417126385

Unavailable

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

CAM ASSY 47 - Call your local BRP dealership | Modèle 800 HO

417126577

Unavailable

25

GUARD - Call your local BRP dealership

417126381

Unavailable

26

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

27

Release Spring, Purple | North America

414978300

$33.99

28

Spacer

417126375

Unavailable

29

HALF KEY - Call your local BRP dealership

371911000

Unavailable

30

SHIM - Call your local BRP dealership

504112300

Unavailable

31

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

32

Protector

417300055

Unavailable

33

Spacer

417300265

$2.29

34

Strength Washer

517302322

$12.63

35

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

Loctite 609, 10 ml

413703100

$26.99
