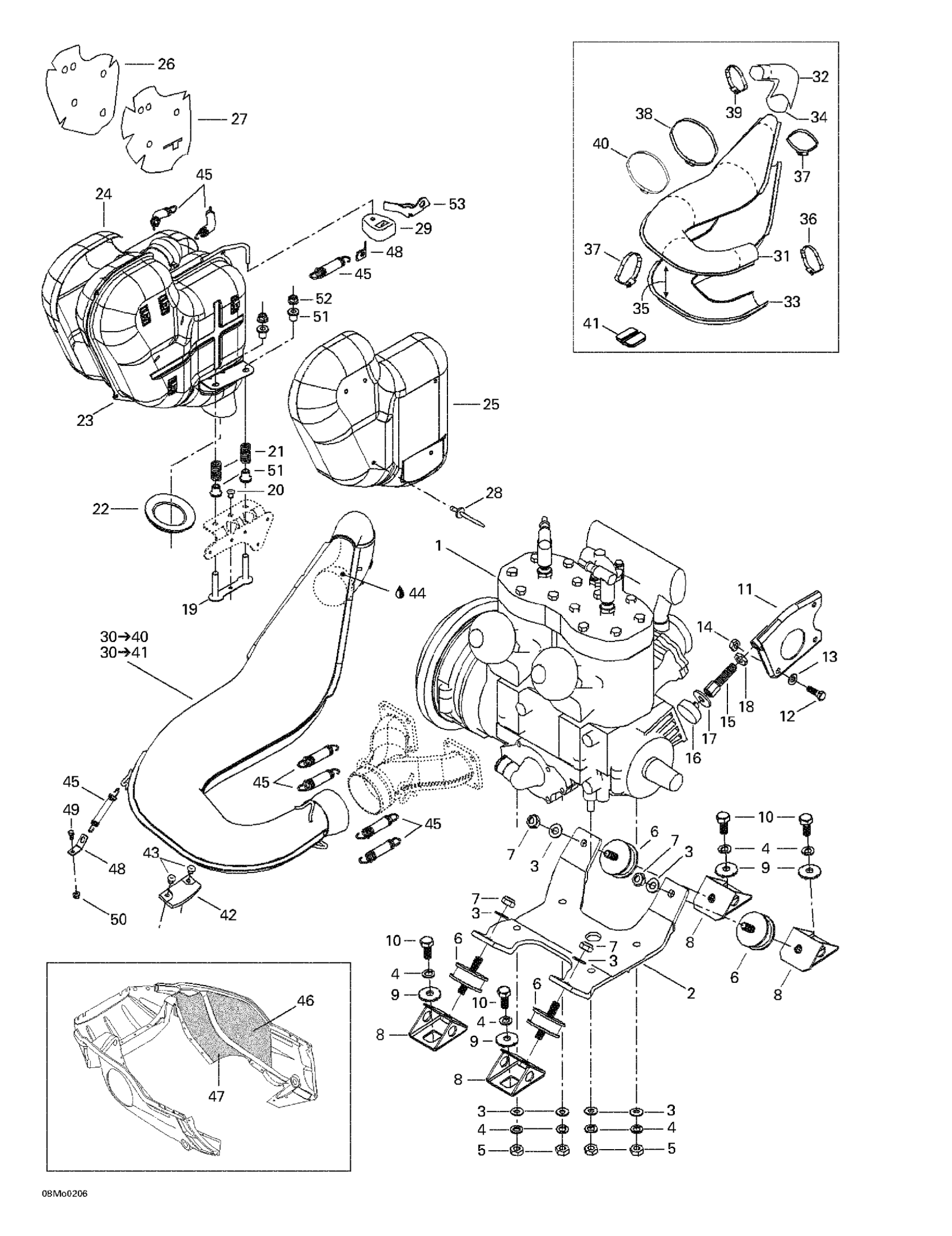

Ski-Doo Legend 500/600/700/800, 2002 01- Engine Support And Muffler Diagram

#

Description
Price

1

<<493>> Engine (RER) | Grand Touring 500.

400409426

Unavailable

<<593>> Engine (RER) | Grand Touring 600.

400509731

Unavailable

<<693>> Engine (RER) | Grand Touring 700.

400604024

Unavailable

<<793>> Engine (RER) | Grand Touring 800.

400702610

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership

512059488

Unavailable

Engine Support

512059173

Unavailable

3

Flat Washer 10 mm

234001410

$1.26

4

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

5

Hex. Nut M10 X 1.5

232006414

$1.37

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.69

8

Engine Support

512050900

Unavailable

9

Lock Washer

512056700

$3.17

10

Hex. Screw M10 X 25

207102544

$1.37

11

Support Plate

512058500

Unavailable

12

Hex. Screw M8 X 20

207182044

$0.74

13

Flat Washer 8 mm

234081410

$0.83

14

Hex. Elastic Stop Nut M8

232581414

$0.56

15

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

16

Stopper

512059056

Unavailable

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Nut Hexagonal RH.

232026414

$1.48

19

Muffler Bracket

514053263

Unavailable

20

Pop Rivet 3/16"

390402200

$0.35

21

SPRING - Call your local BRP dealership

414913700

Unavailable

22

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

Exhaust Grommet

514053064

Unavailable

23

Muffler | 600

514053326

Unavailable

Muffler | Grand Touring 700.

514053322

Unavailable

Muffler | Grand Touring 800.

514053288

Unavailable

24

RH Heat Shield | 600

514053160

Unavailable

RH Heat Shield | Grand Touring 700. Grand Touring 800.

514053292

Unavailable

25

LH Heat Shield | 600

514052733

Unavailable

LH HEAT SHIELD - Call your local BRP dealership

514053293

Unavailable

26

RH Insulating Wool | 600

514052734

Unavailable

RH Insulating Wool | 700

514053294

Unavailable

27

LH Insulating Wool | 600

514052844

Unavailable

LH Wooll Insulating

514053295

Unavailable

28

Pop Rivet 3/16”

390910000

$0.57

29

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

30

Tuned Pipe Ass'y | Includes 30 - 40. Grand Touring 500.

514053316

Unavailable

30

Tuned Pipe Ass'y | Includes 30 - 41. Grand Touring 600.

514053328

Unavailable

30

Tuned Pipe Ass'y | Includes 30 - 40. Grand Touring 700. Grand Touring 800.

514053336

Unavailable

31

Upper Enveloppe | Grand Touring 500.

514053167

Unavailable

Upper Enveloppe | 600

514053192

Unavailable

32

REAR UPPER ENVELOPE - Call your local BRP dealership | 600

514053193

Unavailable

REAR UPPER ENVELOPE - Call your local BRP dealership | 700

514053313

Unavailable

33

Lower Envelope | Grand Touring 500.

514053360

Unavailable

LOWER ENVELOPE - Call your local BRP dealership

514053367

Unavailable

34

REAR LOWER ENVELOPE - Call your local BRP dealership | 600

514053196

Unavailable

REAR LOWER ENVELOPE - Call your local BRP dealership | 700

514053314

Unavailable

35

Insulating Wool | Grand Touring 500.

514052716

Unavailable

Insulating Wool | Grand Touring 600.

514053197

Unavailable

Insulating Wool | 700

514053315

Unavailable

36

Norma Gear Clamp

514053074

Unavailable

37

Norma Clamp

514052924

$14.22

NORMA GEAR CLAMP - Call your local BRP dealership | Grand Touring 600. Grand Touring 700. Grand Touring 800.

514053224

Unavailable

38

Norma Gear Clamp

514052735

Unavailable

39

Norma Gear Clamp

293650118

$13.16

Norma Gear Clamp

293650090

$4.54

Norma Clamp

293650079

$11.60

40

Norma Gear Clamp | Grand Touring 500.

514052962

Unavailable

Norma Gear Clamp | Grand Touring 600.

514052902

Unavailable

Gear Clamp (Norma)

514052861

$8.29

41

Rubber Pad | 600

514053180

Unavailable

42

Rubber Pad

570044100

Unavailable

43

Pop Rivet 3/16"

390406500

$0.88

44

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

45

Spring

415107100

$6.35

46

Reflective Sheet

514052718

Unavailable

47

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

48

Spring Bracket

514053436

$11.47

49

Hex. Screw M5 X 12

207151244

$0.90

50

Hex. Flange Elastic Nut M5

233251414

$1.04

51

GUIDE - Call your local BRP dealership

514053343

Unavailable

52

Hex. Flange Nut M8

233081416

$1.15

53

SUPPORT - Call your local BRP dealership

514053442

Unavailable
