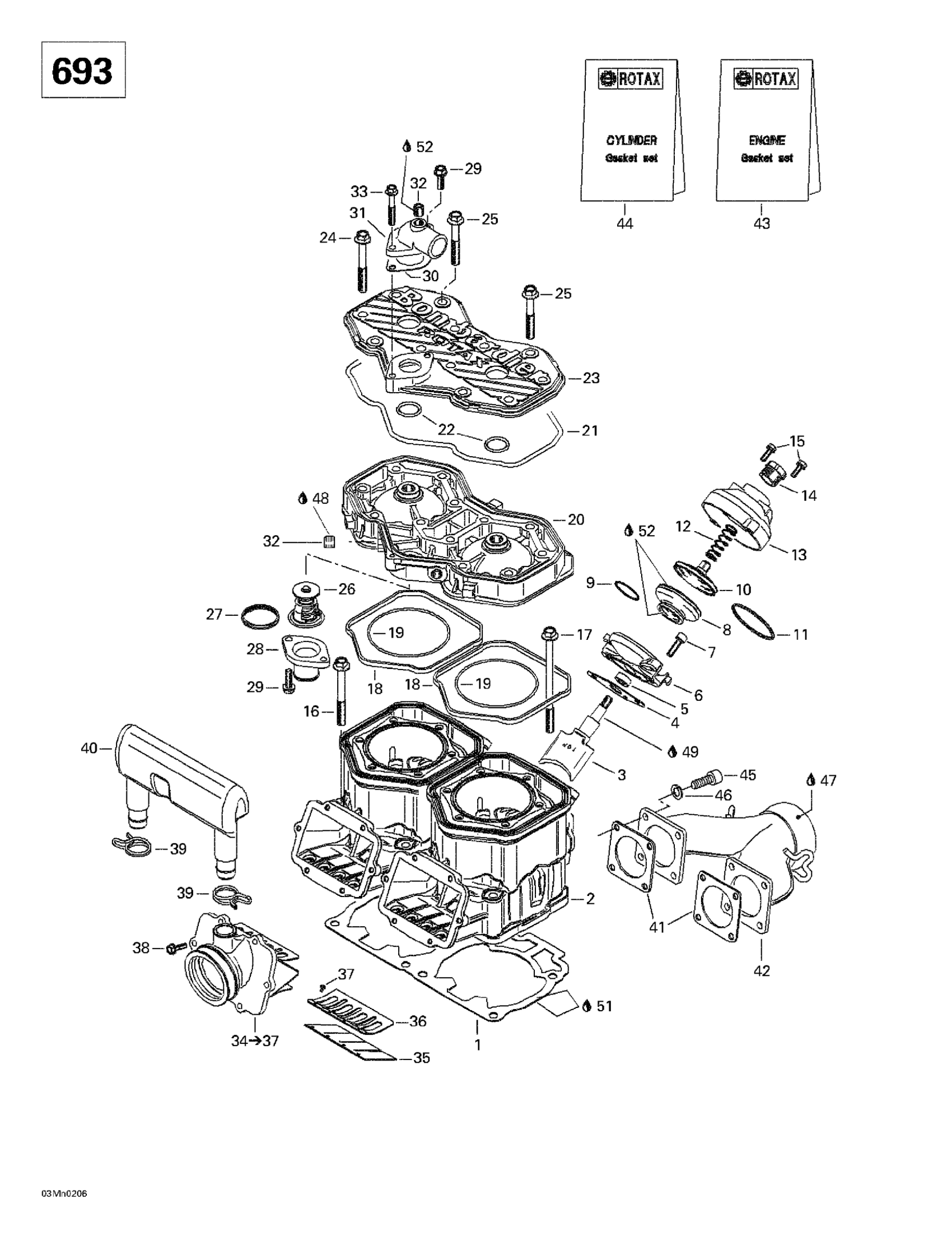

Ski-Doo Legend 500/600/700/800, 2002 01- Cylinder, Exhaust Manifold, Reed Valve (693) Diagram

#

Description
Price

1

Double Gasket 0.8 mm

420431163

$23.49

Gasket 0.7 mm

420431162

$23.49

Gasket 0.6 mm

420431161

$23.49

Gasket 0.5 mm

420431160

$17.53

2

Cylinder-Nicasil | Grand Touring 700.

420923693

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

4

Gasket

420250239

$7.37

5

Oil Seal | Included in gasket kit

420950732

$9.27

6

Valve Housing

420854266

$96.49

7

Socket Head Screw M6 X 20

205062044

$1.26

8

Exhaust Bellows

420260723

$42.49

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

Spring This part replaces 420239944.

420239954

$7.51

13

Valve Cover

420911552

$38.99

14

Adjuster Screw

420241221

$14.22

15

Hex. Tapping Screw M5 X 20

420841555

$1.69

16

Hex. Collar Screw

420640524

$13.16

17

Hex. Collar Screw

420640534

$14.28

18

Rubber Ring

420931590

$6.19

19

O-RING - Call your local BRP dealership

420931840

$14.49

20

CYLINDER HEAD (SILVER) - Call your local BRP dealership | Grand Touring 700.

420923457

Unavailable

21

O-Ring This part replaces 290950320.

420950320

$14.28

22

O-Ring

420430782

$5.39

23

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

24

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

25

Hex. Screw M8 X 56.5

420941627

$8.57

26

Thermostat This part replaces 414834100.

420922519

$63.99

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

29

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

30

Gasket

420850338

$11.60

31

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

32

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

33

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

34

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$254.49

35

Reed Pedal

420924680

$38.99

36

Reed Pedal Stop

420924695

$15.28

37

Phillips Screw M3 X 5

420941215

$1.69

38

Taptite Screw M5 X 16

420941928

Unavailable

39

CLAMP - Call your local BRP dealership

420851440

Unavailable

40

Intake Resonator

420867817

Unavailable

41

Gasket

420850552

$8.85

42

Exhaust Manifold | Grand Touring 700.

420973591

Unavailable

43

ENGINE GASKET SET - Call your local BRP dealership | Grand Touring 700.

420888603

Unavailable

44

Cylinder Gasket Set

420888608

Unavailable

45

Socket Head Screw M6 X 20

205062044

$1.26

46

Lock Washer M6, Black

234161471

$0.53

47

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

48

Loctite 243, 10 ml

293800060

$21.49

49

Molykote G-N, 50 g

420297433

$26.99

50

Dow Corning 111, 150 g

413707000

$59.99

51

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

52

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
