Description

Price

1

DOUBLE GASKET 0.8 MM - Call your local BRP dealership | Grand Touring 500.

420931589

Unavailable

Gasket 0.8 mm

420431423

$25.99

DOUBLE GASKET 0.7 MM - Call your local BRP dealership | Grand Touring 500.

420931960

Unavailable

Gasket 0.7 mm

420431422

$27.49

DOUBLE GASKET 0.6 MM - Call your local BRP dealership | Grand Touring 500.

420931587

Unavailable

Gasket 0.6 mm

420431421

$20.49

DOUBLE GASKET 0.5 MM - Call your local BRP dealership | Grand Touring 500.

420931588

Unavailable

Gasket 0.5 mm

420431420

$23.99

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

2

Cylinder With Sleeve | Grand Touring 500.

420613605

Unavailable

2

REBUILD-CYLINDER 493 2000 - Call your local BRP dealership

421000568

Unavailable

Cylinder With Sleeve

420613628

$425.99

Cylinder With Sleeve

420613628

$425.99

3

EXHAUST VALVE - Call your local BRP dealership | Grand Touring 500.

420854490

Unavailable

Exhaust Valve

420854371

$59.49

4

O-Ring

420430110

$4.44

Oil Seal | Included in gasket kit

420950732

$9.27

5

Gasket

420250239

$7.37

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

Valve Housing

420854266

$96.49

7

Socket Head Screw M6 X 20

205062044

$1.26

8

Exhaust Bellows

420260723

$42.49

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

SPRING - Call your local BRP dealership

420239948

Unavailable

Spring This part replaces 420239944.

420239954

$7.51

13

Valve Cover

420911552

$38.99

Valve Cover

420911552

$38.99

14

Adjuster Screw

420241221

$14.22

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

Hex. Tapping Screw M5 X 20

420841555

$1.69

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

17

Rubber Ring

420931590

$6.19

18

O-Ring | Grand Touring 500.

420831792

$15.89

O-Ring | Legend 600.

293850540

Unavailable

19

Cylinder Head (Silver) | Grand Touring 500.

420923882

Unavailable

CYLINDER HEAD - Call your local BRP dealership

420923459

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$14.28

21

O-Ring

420430782

$5.39

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

24

Hex. Screw M8 X 56.5

420941627

$8.57

25

Thermostat This part replaces 414834100.

420922519

$63.99

26

SEALING RING - Call your local BRP dealership

420931270

Unavailable

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

29

Gasket

420850338

$11.60

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

CYLINDER SLEEVE - Call your local BRP dealership | Grand Touring 500.

420923861

Unavailable

CYLINDER SLEEVE - Call your local BRP dealership | Legend 600.

420923441

Unavailable

34

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

35

Reed Valve Ass'y

420924519

$54.99

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Reed Pedal

420924532

$42.49

38

Reed Pedal Stop

420924539

$13.16

39

Phillips Screw M3 X 5

420941215

$1.69

40

CARBURETOR SOCKET - Call your local BRP dealership

420867882

Unavailable

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867817

Unavailable

44

GASKET - Call your local BRP dealership | Grand Touring 500.

420931615

Unavailable

Gasket

420931610

$11.65

45

Exhaust Manifold | Grand Touring 500.

420973650

Unavailable

Exhaust Manifold

420979543

Unavailable

46

Engine Gasket Set | Grand Touring 500.

420888721

Unavailable

ENGINE GASKET SET - Call your local BRP dealership | Grand Touring 600.

420888583

Unavailable

47

CYLINDER GASKET SET - Call your local BRP dealership | Grand Touring 500.

420888726

Unavailable

Gasket Set, Cylinder

420893075

$174.49

48

Socket Head Screw M8 X 25

205082544

$1.15

49

Hex. Screw M8 X 20

207182044

$0.74

50

Lock Washer 8 mm

234181401

$0.92

51

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

52

Loctite 243, 10 ml

293800060

$21.49

53

Molykote G-N, 50 g

420297433

$26.99

54

Dow Corning 111, 150 g

413707000

$59.99

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

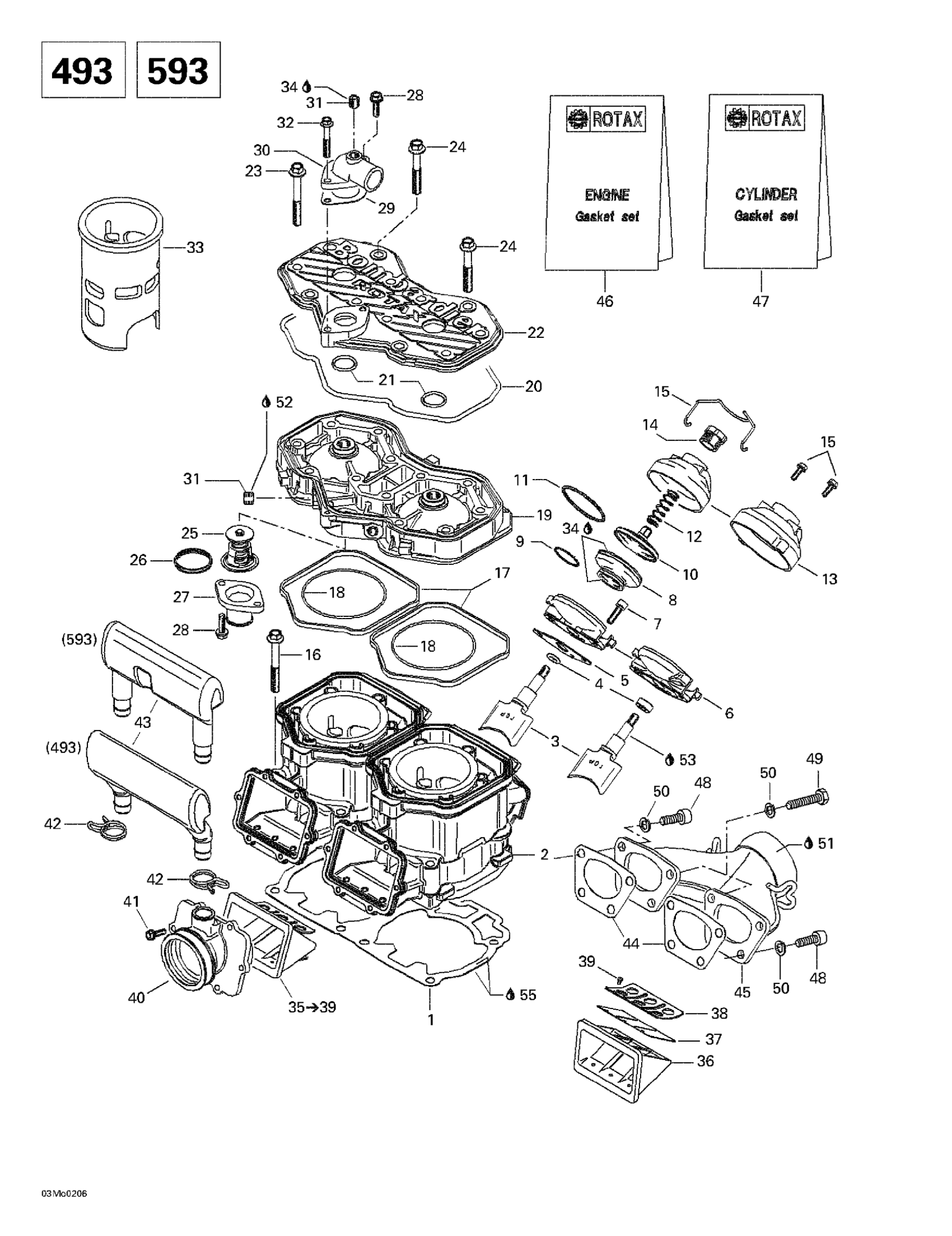

Ski-Doo Legend 500/600/700/800, 2002 01- Cylinder, Exhaust Manifold, Reed Valve (493 Diagram
