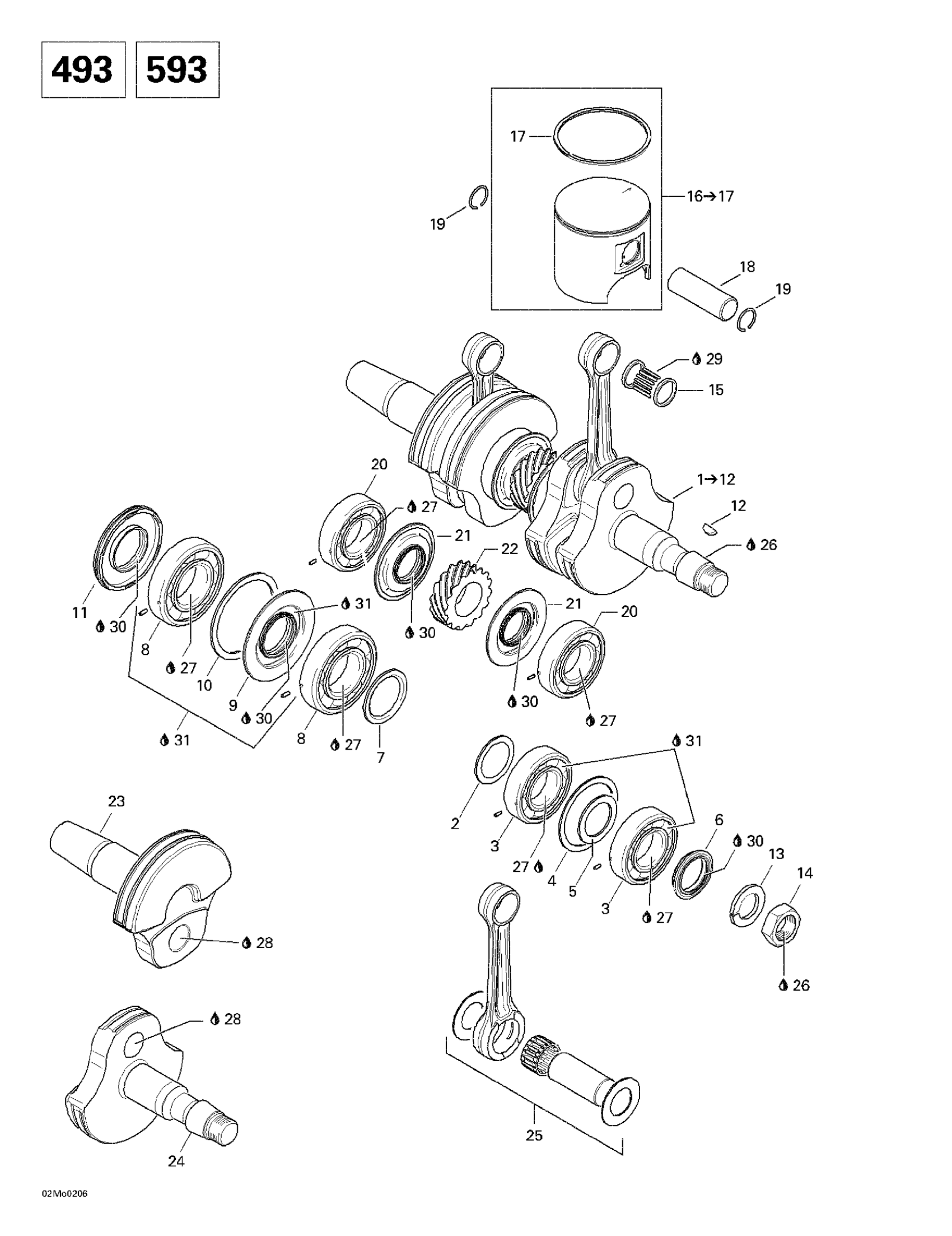

Ski-Doo Legend 500/600/700/800, 2002 01- Crankshaft And Pistons (493) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 12. Grand Touring 500.

420888461

Unavailable

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

Ball Bearing 6206

420832590

$48.49

4

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

Oil Seal

420931795

$17.63

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

Ball Bearing 6207 | With drive pin

420832575

$52.99

9

Oil Seal

420931455

$35.99

10

Retaining Disk

420927710

$7.41

11

Oil Seal This part replaces 290831952.

420831952

$18.01

12

Woodruff Key

420246015

$3.17

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

Needle Bearing

420832320

$30.49

Needle Bearing

420832445

$27.49

16

Piston Ass’y, 1 Ring 69.40 mm | Includes 16 - 17. Grand Touring 500.

420888445

Unavailable

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

OVERSIZE PISTON ASS?Y, 1 RING 69.65 MM - Call your local BRP dealership | Grand Touring 500.

420888446

Unavailable

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

17

SEMI-TRAPEZ RING 69.50 MM - Call your local BRP dealership | Grand Touring 500.

420815043

Unavailable

Semi-Trapez Ring, 1st

420815156

$51.99

Oversize Semi-Trapez Ring 69.75 mm | Grand Touring 500.

420815044

Unavailable

Semi-Trapez Ring, Standard

420815155

$51.99

18

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

Piston Pin

420916412

$30.99

19

Piston Circlip

420945735

$4.46

Piston Circlip

420845106

$3.93

20

Ball Bearing 6206

420832590

$48.49

21

Oil Seal | Included in gasket kit

420931940

$30.49

22

Central Gear, 15 Teeth

420834350

$104.99

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

24

Crankshaft This part replaces 420818693.

420818697

$255.49

25

Rod Repair Kit, Mag Side | Grand Touring 500.

420888463

Unavailable

Rod Repair Kit, MAG Side

420890973

$313.99

ROD REPAIR KIT, PTO SIDE - Call your local BRP dealership | Grand Touring 500.

420888464

Unavailable

Rod Repair Kit, PTO Side

420890974

$313.99

26

Loctite 243, 10 ml

293800060

$21.49

27

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

28

Sealant Loctite 648

219703000

$45.99

29

Dow Corning 111, 150 g

413707000

$59.99

30

Petamo Grease, GHY133N, 400 g

420899271

$67.99

31

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
