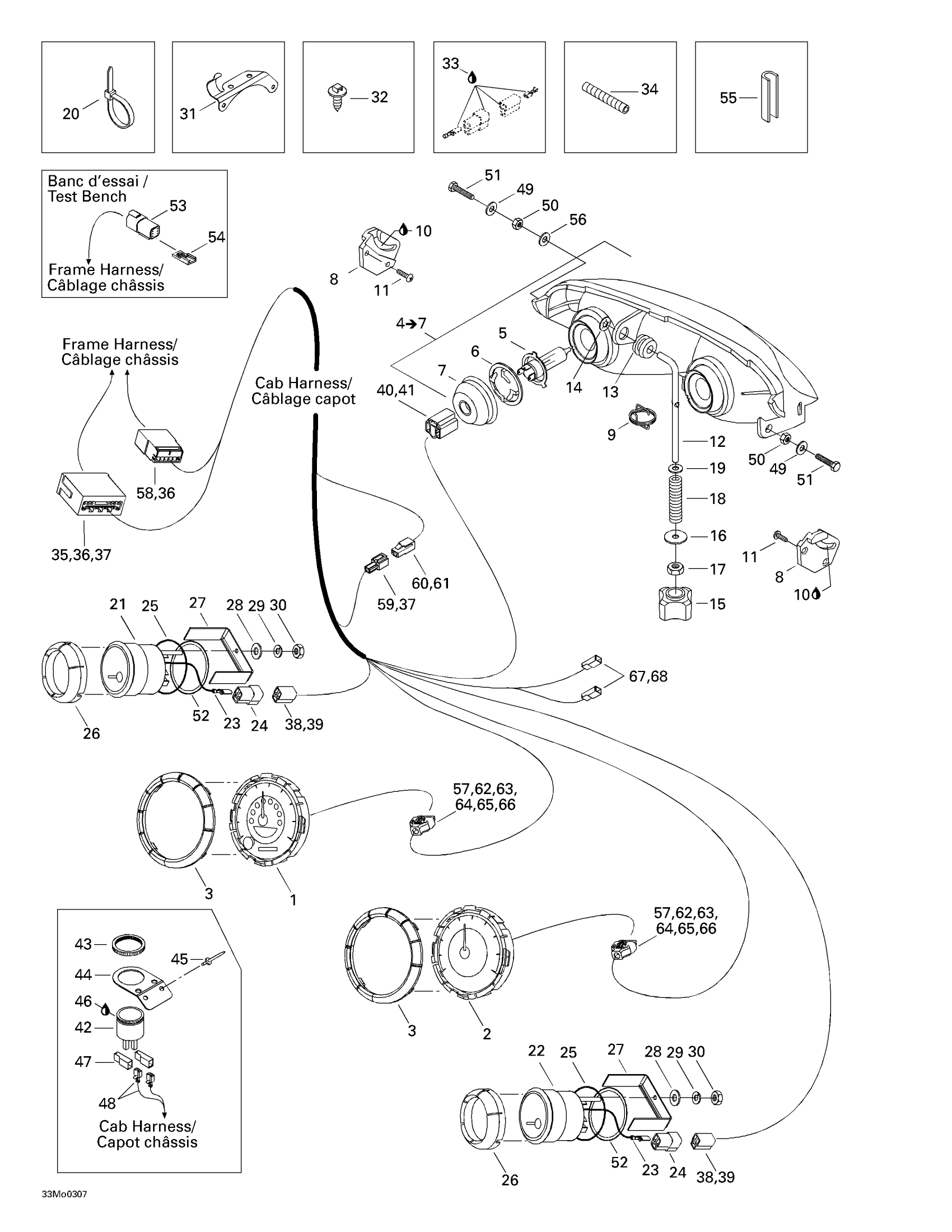

Ski-Doo Legend 500/600/700, 2003 Cab Harness Diagram
#
1
Electronic Speedometer, Kmh
515175942
Unavailable
2
Tachometer
515175943
Unavailable
3
Gauge Ring This part replaces 515176242.
515179005
Unavailable
4
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
5
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
6
BULB HOLDER - Call your local BRP dealership
515176385
Unavailable
7
COVER - Call your local BRP dealership
515175911
Unavailable
8
RH Support
517289300
Unavailable
LH Support
517289400
Unavailable
9
SPRING - Call your local BRP dealership | Europe
515175324
Unavailable
10
Grease Tube Lmz, 400 G
413707500
Unavailable
11
Headlamp Screw
732601315
Unavailable
12
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
13
Grommet - Call your local BRP dealership
415100800
Unavailable
14
Push Nut
732610072
Unavailable
15
Handle - Call your local BRP dealership
515175548
Unavailable
16
Washer
224060251
Unavailable
17
Elastic Stop Nut M6
232561414
Unavailable
18
SPRING - Call your local BRP dealership
415100600
Unavailable
19
Flat Washer 6 mm
234061410
Unavailable
20
Tie Wrap 142 mm
293750002
Unavailable
Tie-Rap 173 mm
293750009
Unavailable
21
Temperature Gauge
515175601
Unavailable
22
FUEL GAUGE - Call your local BRP dealership
515175529
Unavailable
23
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
25
O-RING - Call your local BRP dealership
414807200
Unavailable
26
RING GAUGE - Call your local BRP dealership
515175711
Unavailable
27
Case Holder
415099800
Unavailable
28
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
29
Lock Washer | SE Models
414833700
Unavailable
30
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
31
Cable Support
515175254
Unavailable
33
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
34
TUBING 6 MM - Call your local BRP dealership
515175442
Unavailable
Tubing 10 MM 1000MM Long
219704407
Unavailable
Was 409901800 Tubing (13 mm)
219704400
Unavailable
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
35
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175720
Unavailable
37
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
38
Female Housing
409204300
Unavailable
39
Female Terminal
561503100
Unavailable
40
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
41
FEMALE TERMINAL - Call your local BRP dealership
515175321
Unavailable
42
HORN - Call your local BRP dealership
515176035
Unavailable
44
PLATE - Call your local BRP dealership
515175688
Unavailable
46
Silicone Sealant 51388, 300 ml
296000309
Unavailable
49
Flat Washer M5
234051410
Unavailable
50
NUT M5 - Call your local BRP dealership
250100018
Unavailable
51
Hex. Screw M5 X 35
207053544
Unavailable
52
WASHER - Call your local BRP dealership
517258600
Unavailable
55
Was 271000110 Protection Trim
219704353
Unavailable
56
Flat Washer 10 mm
234001410
Unavailable
57
Female Housing, 24 Circuits
515175801
Unavailable
58
Male Terminal Housing, 6 Circuits
515175662
Unavailable
59
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
60
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
62
Plug
515175812
Unavailable
63
Retainer Block
515175802
Unavailable
64
Wire Seal
515175803
Unavailable
67
Female Terminal
410010100
Unavailable
