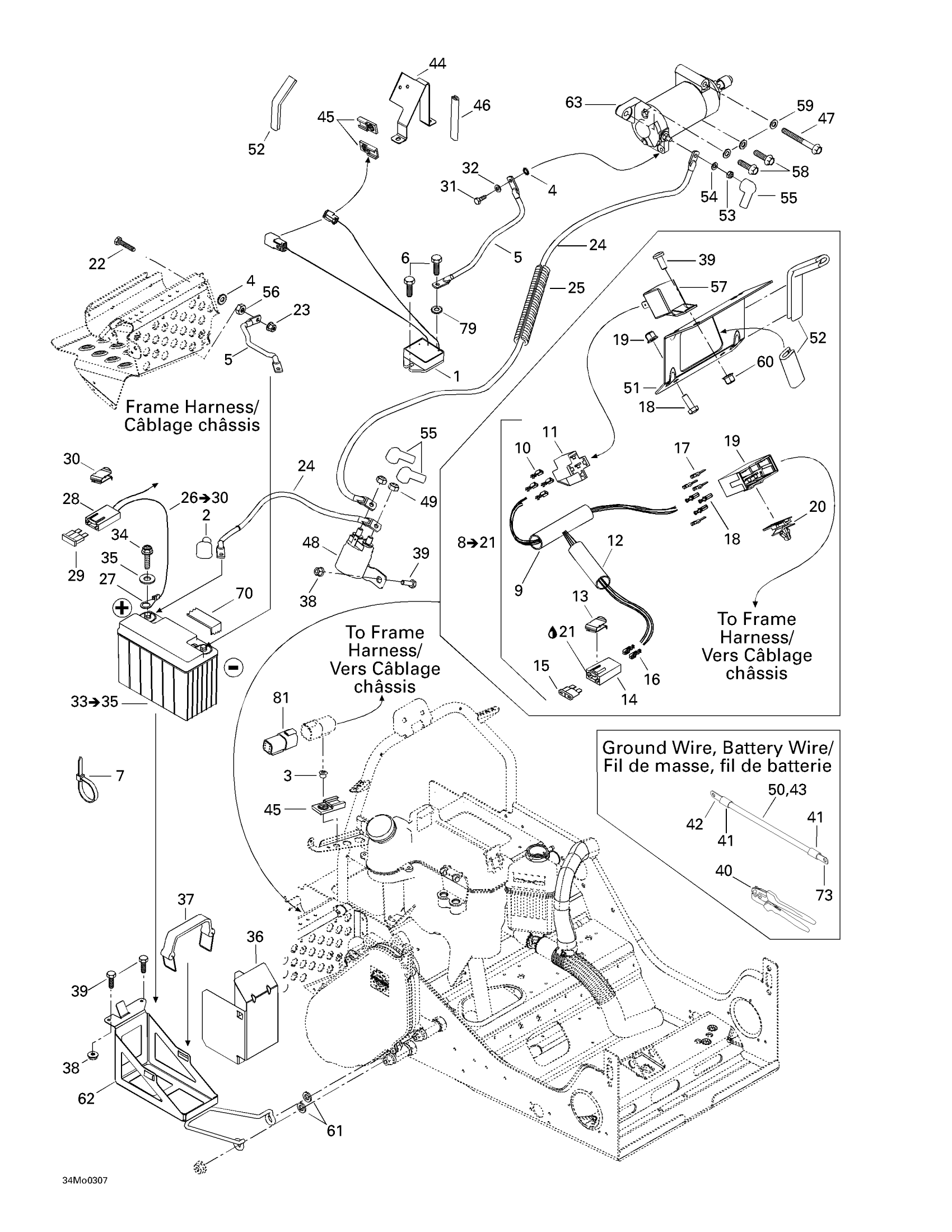

Ski-Doo Legend 500/600/700, 2003 Battery And Starter Diagram

#

Description
Price

1

Voltage Regulator

515175968

$226.09

2

Protection Cap

570151000

$17.88

3

Pop-Rivets 3/16”

390906400

Unavailable

4

Lock Washer Serrated M6

250200041

$1.06

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Taptite Screw

290841543

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie-Rap 173 mm

293750009

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 368 mm

293750008

$0.97

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

8

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.16

9

Was 409901800 Tubing (13 mm)

219704400

$10.79

10

Female Terminal

561503100

Unavailable

11

Female Housing, 5 Circuits

409209900

$8.72

12

Tubing 6 Mm 3000Mm Long

219704425

$12.75

13

CLIP - Call your local BRP dealership

409014200

Unavailable

14

Fuse Holder

409004000

$6.79

15

Fuse, 5 Amperes | CE

278000344

$3.12

16

Female Terminal

409011600

$4.96

17

Male Terminal

515175232

$1.45

18

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

19

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

20

Housing Support

515175283

$8.18

21

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

22

Hex. Flange Screw M6 X 20

207662044

$1.91

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Was 409901700 Tubing (9 mm)

219704399

$77.58

26

Battery Fuse Wire | Includes 21 to 22

515175489

$14.58

27

Open Barrel

278000992

$2.06

28

Fuse Holder

409004000

$6.79

29

Fuse, 30 Amperes

410917200

$3.12

30

CLIP - Call your local BRP dealership

409014200

Unavailable

31

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

32

Flat Washer 6 mm

234061410

$1.19

33

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$144.75

34

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

35

Flat Washer 6 mm

234061410

$1.19

36

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

37

Battery Strap

515176044

$16.39

38

Hex. Flange Elastic Nut M5

233251414

$1.91

39

Hex. Screw M5 X 14

207151444

$0.82

40

Crimp Plier

529035730

Unavailable

41

Was 710000483 Heat Shrink Tubing

219704447

$72.36

42

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

43

Cable Battery, no 6, meter)

278001690

Unavailable

44

Housing Support

515175842

Unavailable

45

Clip

270000141

$9.57

46

Was 271000110 Protection Trim

219704353

$14.58

47

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.57

48

Starter Relay

515176011

$59.67

49

Elastic Stop Nut M6

232561414

$1.78

50

Ground Cable Battery, no 6, meter)

278001680

Unavailable

Ground Cable Battery, No. 4, Meter

278001681

Unavailable

51

Fuse Holder

515175907

Unavailable

52

Was 271000110 Protection Trim

219704353

$14.58

53

Elastic Stop Nut M6

232561414

$1.78

54

Flat Washer 6 mm

234061410

$1.19

55

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

56

Hex. Nut M6

232061414

$0.51

57

Relay | DS 650 X

710010053

Unavailable

58

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

59

Flat Washer With Teflon 8 mm

250200008

$3.58

60

Hex. Flange Elastic Nut M5

233251414

$1.91

61

Washer

503175800

$3.16

62

Battery Support

515175718

Unavailable

63

Electric Starter Ass'y

515176133

$319.49
