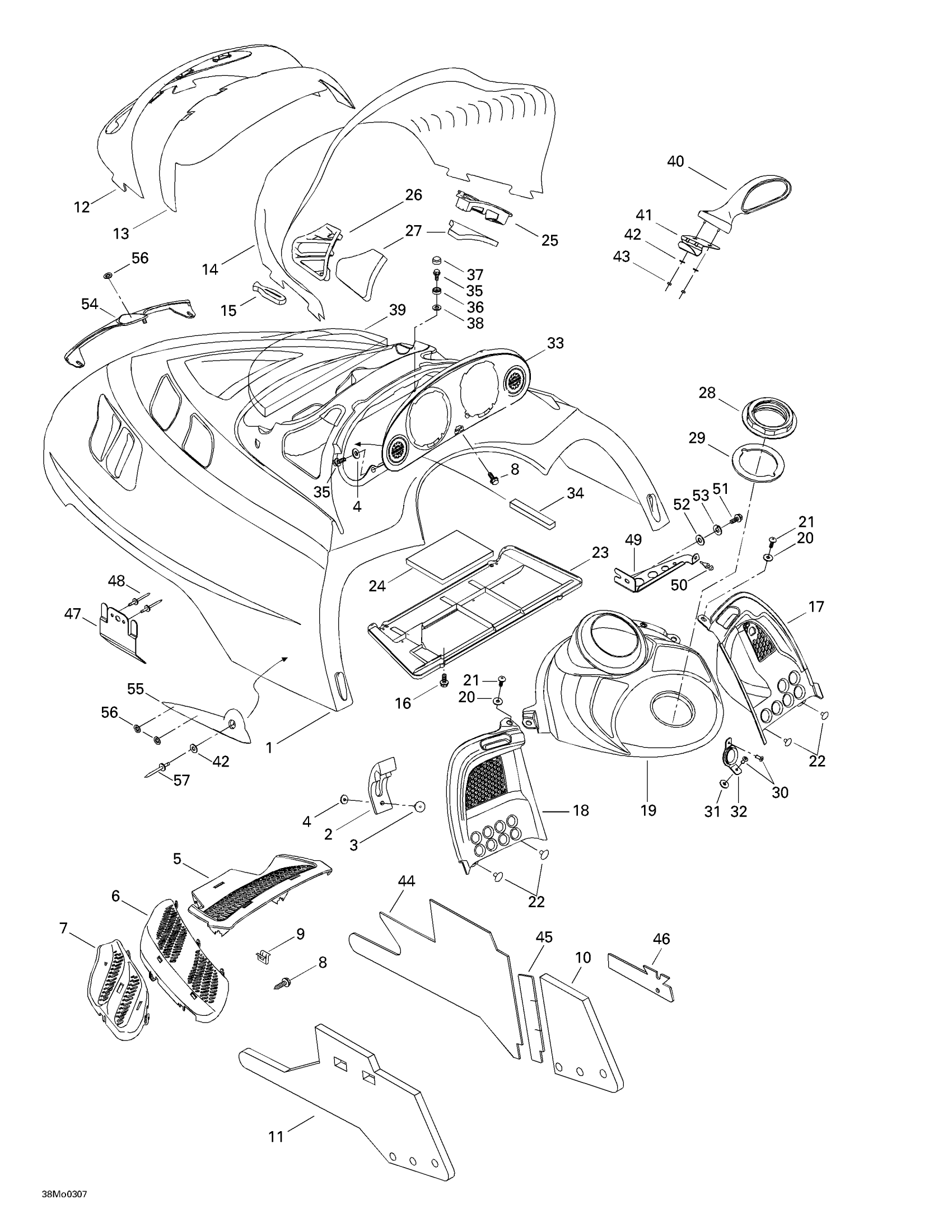

Ski-Doo Legend 500/600/700, 2003 Cab, Console Diagram
#
1
HOOD, BLACK, B-160 - Call your local BRP dealership | BLACK (B-160)
517302740
Unavailable
Hood, Blue, B-225
517302755
Unavailable
2
Hood Latch
570027100
Unavailable
4
Washer
517124300
Unavailable
5
CENTER GRILL, BLACK - Call your local BRP dealership
517302026
Unavailable
6
RH Intermediate Grill, Black | Grand Touring 500.
517302028
Unavailable
RH Intermediate Grill, Black
517302671
Unavailable
LH Intermediate Grill, Black | Grand Touring 500.
517302031
Unavailable
LH Intermediate Grill, Black
517302672
Unavailable
7
RH Side Grille
517302034
Unavailable
LH Side Grille
517302036
Unavailable
8
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
9
Edge Clip
517302785
Unavailable
10
RH Side Foam
517302675
Unavailable
11
LH Side Foam
517302630
Unavailable
12
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership
517302158
Unavailable
Headlamp Moulding
517302762
Unavailable
13
WINDSHIELD SUPPORT - Call your local BRP dealership
517302003
Unavailable
14
WINDSHIELD - Call your local BRP dealership
517302356
Unavailable
15
Windshield Latch
570023800
Unavailable
16
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
17
RH CONSOLE - Call your local BRP dealership
517302005
Unavailable
18
LH CONSOLE - Call your local BRP dealership
517302006
Unavailable
19
Center Console | Sport & Sport GT
517302757
Unavailable
Center Console | Grand Touring 600. Grand Touring 700.
517302758
Unavailable
20
Washer | DS 650 X
391301600
Unavailable
22
Pop Rivet 3/16"
293150103
Unavailable
23
AIR INTAKE PLATE - Call your local BRP dealership
517302836
Unavailable
24
Secondary Foam
517302425
Unavailable
25
RH AIR INTAKE GRILL - Call your local BRP dealership
517302024
Unavailable
26
LH AIR INTAKE GRILL - Call your local BRP dealership
517302025
Unavailable
27
Air Intake Foam
517302151
Unavailable
28
CONSOLE NUT - Call your local BRP dealership
517302043
Unavailable
29
Gasket
293250029
Unavailable
30
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
31
Rubber Stopper
517302286
Unavailable
32
Rope Guide
517302129
Unavailable
33
Indicator Support
517302760
Unavailable
Indicator Support | SE
517302761
Unavailable
34
Foam
517302420
Unavailable
37
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
38
Flat Washer 4 mm, Stainless
234042600
Unavailable
39
CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM
517302317
Unavailable
40
RH Mirror
517302679
Unavailable
LH Mirror
517302681
Unavailable
41
Retainer Plate
517302539
Unavailable
42
Washer
517124300
Unavailable
44
Reflective Sheet
514053624
Unavailable
45
Reflective Sheet
514053450
Unavailable
46
Reflective Sheet | FOR RIM CAB ONLY
514053391
Unavailable
47
Hood Guide
517302615
Unavailable
49
RH Console Support
517302621
Unavailable
50
Rubber Stopper
517302624
Unavailable
52
Flat Washer 6 mm
234061410
Unavailable
54
Front Hood Moulding
517302780
Unavailable
55
RH Hood Moulding
517302781
Unavailable
LH Hood Moulding
517302782
Unavailable
56
Push Nut
732610072
Unavailable
57
Pop Rivet 3/16”
293150092
Unavailable
