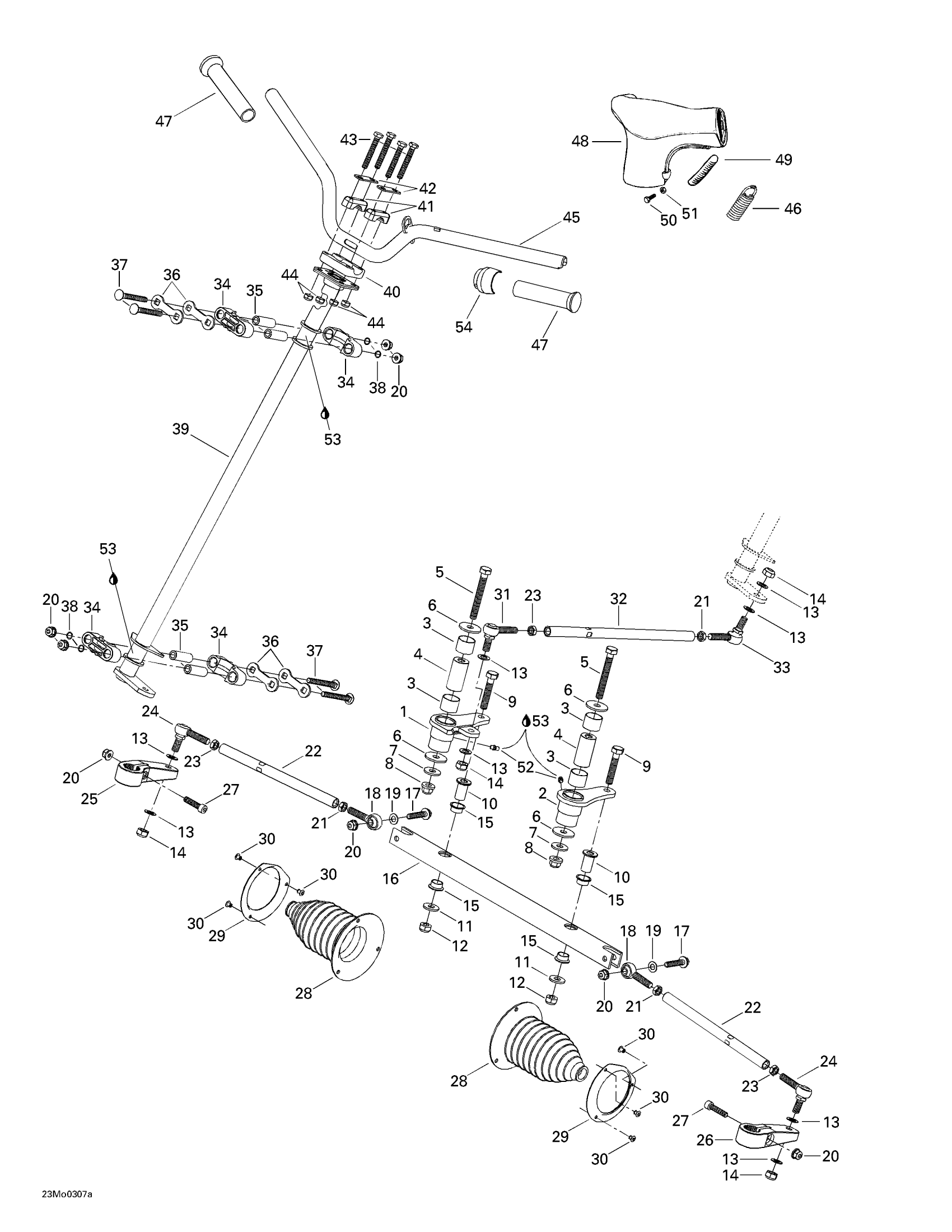

Ski-Doo Legend 500/600/700, 2003 Steering System Diagram
#
1
RH Swivel Arm
506151506
Unavailable
2
LH SWIVEL ARM - Call your local BRP dealership
506151623
Unavailable
3
BUSHING SWIVEL - Call your local BRP dealership
506149900
Unavailable
4
PIVOT SWIVEL - Call your local BRP dealership
506150100
Unavailable
5
Hex. Screw M10 X 80
207008086
Unavailable
6
Washer 10 mm
506150000
Unavailable
8
Flange Nut M10
732610084
Unavailable
10
BAR PIVOT - Call your local BRP dealership
506147300
Unavailable
11
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
14
Elastic Flange Nut M10
232501416
Unavailable
15
Swivel Bushing
503191555
Unavailable
16
Bar-Swivel
506147000
Unavailable
17
Hex. Flange Screw M8 X 40
207684044
Unavailable
18
LH BALL JOINT - Call your local BRP dealership
506151496
Unavailable
19
Washer
506151252
Unavailable
20
Hex. Flange Elastic Nut M8
233281414
Unavailable
21
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
22
Tie-Rod
506151374
Unavailable
23
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
24
Ball Joint
506151491
Unavailable
25
RH STEERING ARM - Call your local BRP dealership
506145800
Unavailable
26
LH STEERING ARM - Call your local BRP dealership
506145900
Unavailable
27
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083544
Unavailable
28
TIE-ROD CAP - Call your local BRP dealership
570070500
Unavailable
29
RETAINER RING - Call your local BRP dealership
506151100
Unavailable
30
Pop Rivet 3/16"
390402300
Unavailable
31
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
32
TIE-ROD - Call your local BRP dealership
506151375
Unavailable
33
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
34
Housing Half
506150400
Unavailable
35
Housing Bushing
506150500
Unavailable
36
Stopper Plate
506150600
Unavailable
37
Carriage Bolt M8 X 70
207787044
Unavailable
38
O-RING - Call your local BRP dealership
506151140
Unavailable
39
Main Tube
506147100
Unavailable
Main Tube | SE MODELS
506151429
Unavailable
40
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
41
Steering Support
709400919
Unavailable
42
Stiffner
709400509
Unavailable
HEX. SCREW M8 X 60 - Call your local BRP dealership
207086044
Unavailable
44
Hex. Elastic Stop Nut M8
232581414
Unavailable
Elastic Stop Nut M8
232281414
Unavailable
45
HANDLEBAR - Call your local BRP dealership | Sport / Sport GT
506151687
Unavailable
46
Keyway | Sport / Sport GT
506151661
Unavailable
47
Handle Grip
506152238
Unavailable
48
STEERING PAD - Call your local BRP dealership | Sport / Sport GT
506151597
Unavailable
49
KEYWAY - Call your local BRP dealership | Sport / Sport GT
572106200
Unavailable
50
Phillips Screw M5 X 20
208652044
Unavailable
51
Hex. Flange Elastic Nut M5
233251414
Unavailable
52
Grease Fitting
408200700
Unavailable
53
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
54
ADAPTATOR - Call your local BRP dealership
506151566
Unavailable
