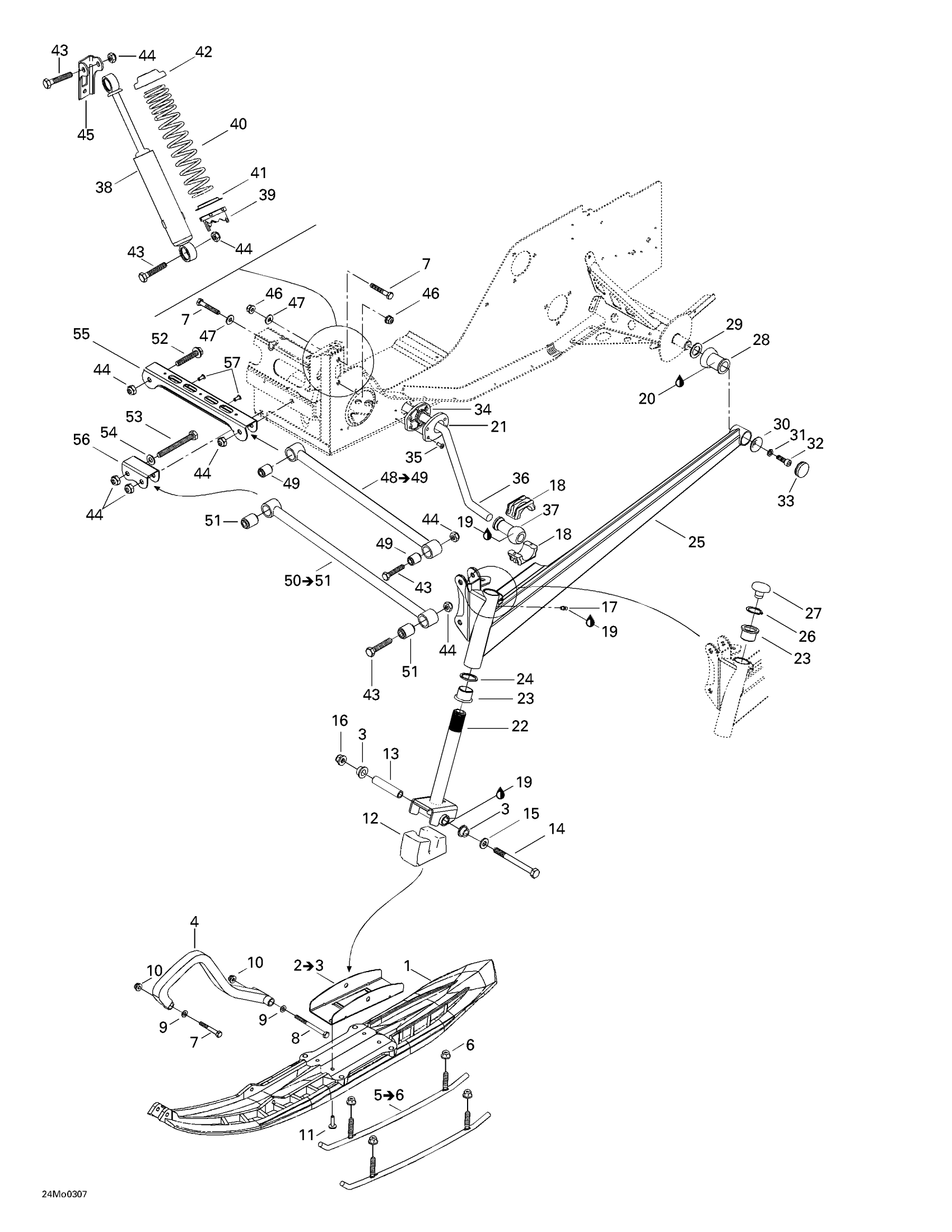

Ski-Doo Legend 500/600/700, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

Labrador Blue, Precision Ski | GSX Ltd (Silver/Blue)

505071031

Unavailable

Deep Black, Precision Ski | Sport

505070727

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

Black, Handle

505070963

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

Unavailable

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

Unavailable

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

Unavailable

16

Flange Nut M10

732610084

Unavailable

17

Grease Fitting

408200700

Unavailable

18

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

Grease, Super Lube

293550030

Unavailable

21

Plate

505070542

Unavailable

22

Ski Leg

506151234

Unavailable

23

Cushion

505070003

Unavailable

24

WASHER - Call your local BRP dealership

505070004

Unavailable

25

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

26

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

27

Cap

572091300

$8.97

28

DAMPER - Call your local BRP dealership

570062200

Unavailable

29

WASHER - Call your local BRP dealership

503146700

$4.42

30

Cup | Package Hunter

705007171

Unavailable

31

Lock Washer 8 mm

234181401

Unavailable

32

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

33

CAP - Call your local BRP dealership

572045900

Unavailable

34

BUSHING - Call your local BRP dealership

505070139

Unavailable

35

Pop Rivet 3/16”

390407200

$0.66

36

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

37

BALL JOINT - Call your local BRP dealership

505070819

Unavailable

38

FRONT SHOCK ASSY - Call your local BRP dealership

505071113

Unavailable

39

Adjustment Cam

505073625

Unavailable

40

Spring

505070686

Unavailable

41

Spring Guide

503187500

Unavailable

42

Spring Stopper

706200881

$10.30

43

Hex. Screw M10 X 55

207005544

$1.85

44

Elastic Locking Nut M10 X 1.5

233601416

$1.68

45

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

46

Hex. Flange Elastic Nut M8

233281414

Unavailable

47

Washer

506151245

Unavailable

48

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

49

Bushing

505070025

Unavailable

50

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

51

Bushing

505070025

Unavailable

52

Hex. Flange Screw M10 X 55

207605544

Unavailable

53

Hex. Screw M10 X 95

207009544

Unavailable

54

Flat Washer 10 mm

234001410

Unavailable

55

Upper Arm Bracket

505070010

Unavailable

56

Lower Arm Bracket

505070011

Unavailable

57

Pop Rivet 3/16"

390402200

$0.26
