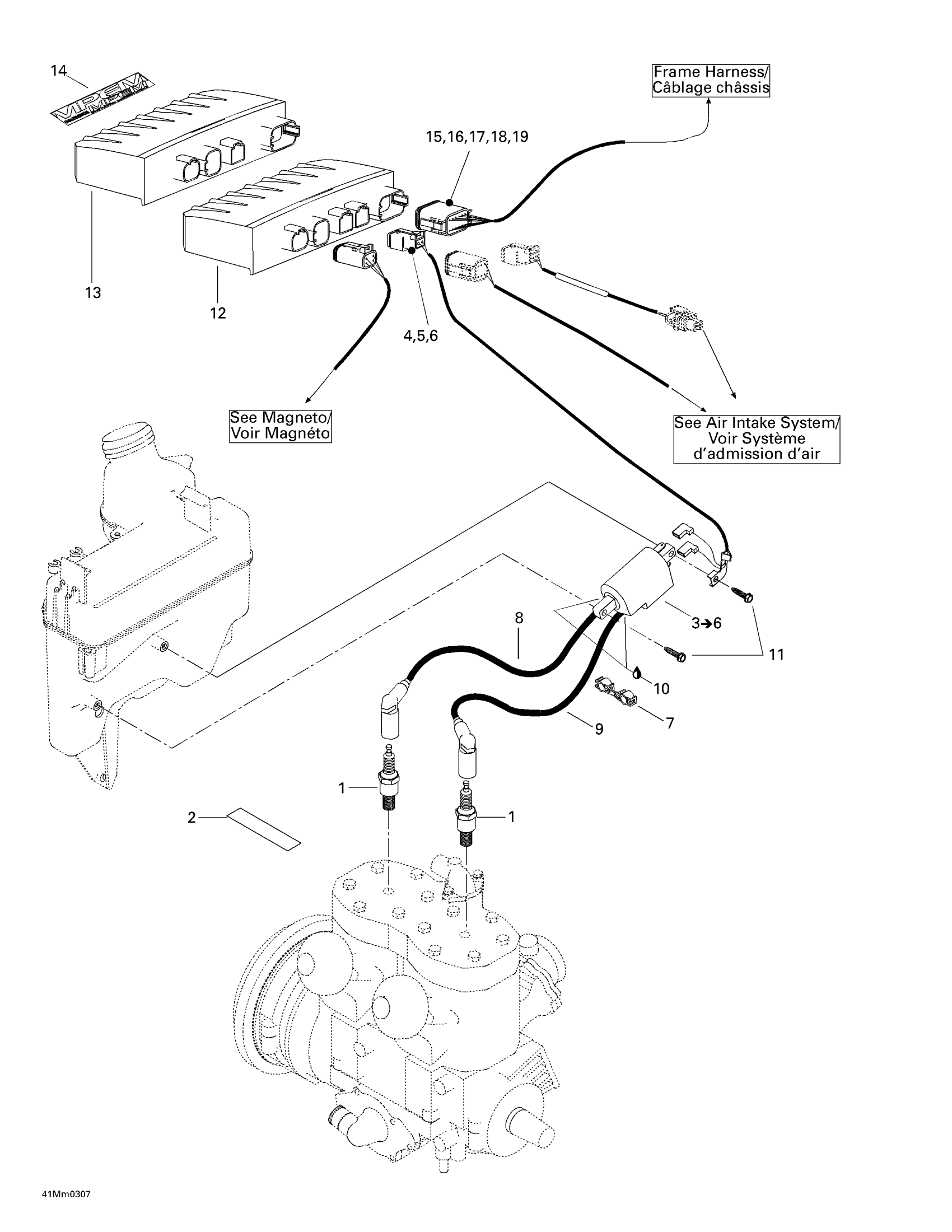

Ski-Doo Legend 500/600/700, 2003 Ignition Diagram
#
Description
Price
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
2
Spark Plug Decal
516000986
Unavailable
3
Ignition Coil | INCLUDES ITEMS 22 TO 25
512059512
Unavailable
5
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
6
Female Terminal
278000632
Unavailable
7
Plastic Clip, Spark Plug Wire
410914600
Unavailable
8
Cable Ass’y, 375 mm
512059696
Unavailable
9
CABLE ASSY, 455 MM - Call your local BRP dealership
512059486
Unavailable
10
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
11
14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.
296000365
Unavailable
12
Calibration Module | Grand Touring 700.
512059652
Unavailable
Calibration Module | Grand Touring 600.
512059653
Unavailable
13
Calibration Module | Grand Touring 500.
512059638
Unavailable
Calibration Module | Grand Touring 600.
512059641
Unavailable
Calibration Module | Grand Touring 700.
512059654
Unavailable
14
Electrical Box Decal
516000245
Unavailable
15
FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership
515175704
Unavailable
16
Female Terminal
278000632
Unavailable
17
FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership
515175679
Unavailable
18
Sealing Cap
293000052
Unavailable
19
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
