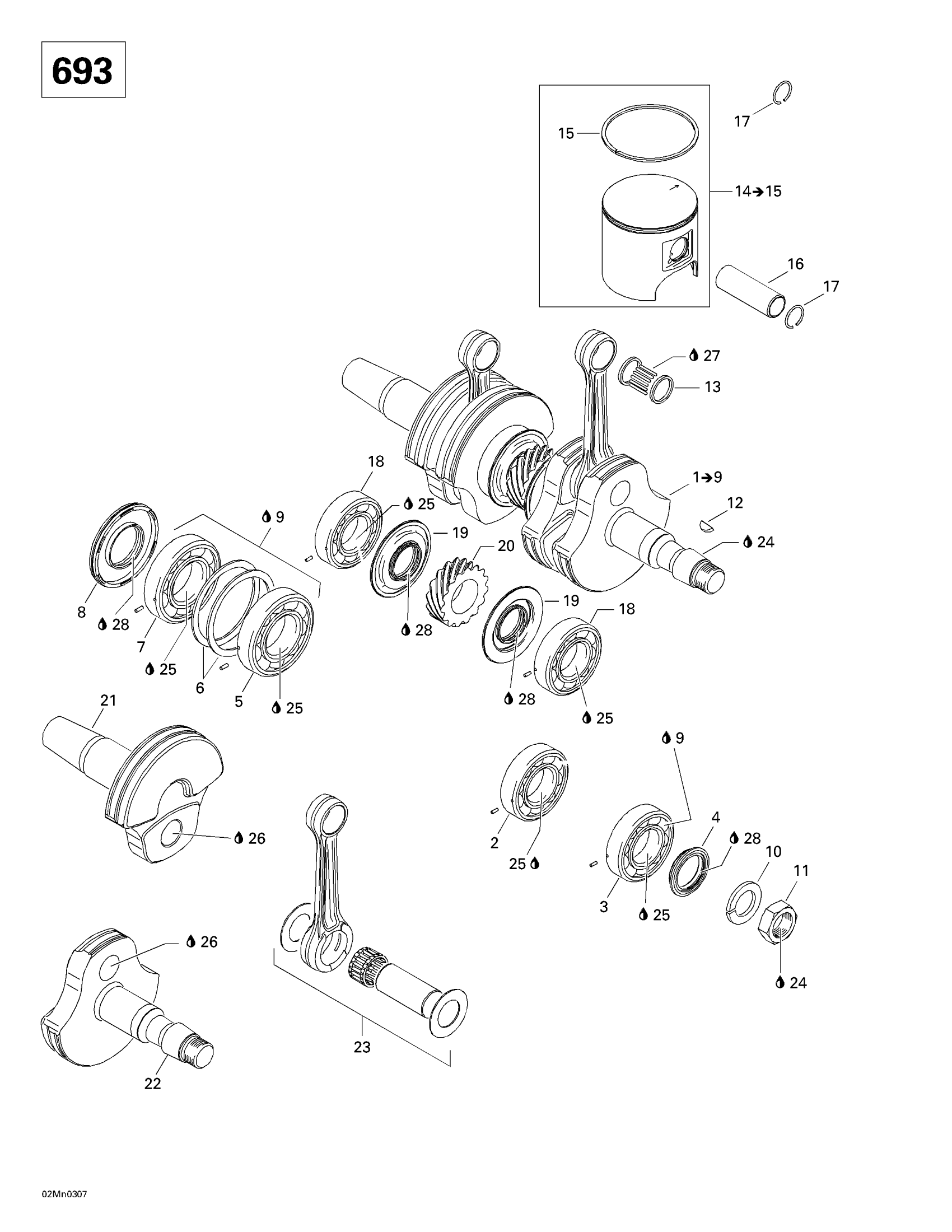

Ski-Doo Legend 500/600/700, 2003 Crankshaft And Pistons (693) Diagram

#

Description
Price

1

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$96.89

3

Ball Bearing 6207 | With drive pin

420832575

$50.74

4

Oil Seal

420931795

$16.89

5

Ball Bearing | With drive pin

420832602

$96.89

6

Washer

420926190

$9.37

7

Ball Bearing 6208 | With drive pin

420832600

$76.12

8

Oil Seal | Included in gasket kit

420931284

$23.05

9

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

10

Lock Washer, 22 mm

420945759

$1.55

11

Hex. Nut, M22 X 1.5

420842239

$14.27

12

Woodruff Key

420246015

$3.11

13

Needle Bearing

420832445

$26.12

14

Piston Ass’y, 1 Ring 77.88 mm | INCLUDES ITEMS 13 TO 14

420888298

Unavailable

15

SEMI-TRAPEZ RING - Call your local BRP dealership

420815226

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

17

Piston Circlip

420845106

$3.52

18

Ball Bearing 6207 | With drive pin

420832575

$50.74

19

Oil Seal

420931455

$34.58

20

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

21

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

22

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

23

Rod Repair Kit, Mag Side

420889093

Unavailable

Rod Repair Kit, PTO Side | Grand Touring 700.

420888094

Unavailable

24

Loctite 243, 10 ml

293800060

$20.77

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Sealant Loctite 648

219703000

$35.72

27

Dow Corning 111, 150 g

413707000

$57.82

28

Petamo Grease, GHY133N, 400 g

420899271

$57.17
