Description

Price

1

CRANKCASE ASS'Y - Call your local BRP dealership

420888769

Unavailable

Crankcase Ass‘Y | INCLUDES ITEMS 1 TO 12

420889083

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$1.94

3

Hex. Collar Screw M8 x 45

420640432

$1.94

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.28

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

6

Socket Head Screw M6 X 30

205063044

$1.42

7

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable

8

Check Valve

420956511

$28.57

9

Center Pin 8 X 12

420632010

$3.07

10

Cable Grommet

420860965

$13.58

11

Cap

420960770

$4.00

12

Ball Bearing

420232100

$15.57

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$12.65

16

Ball Bearing

420232100

$15.57

17

Rotary Seal

420650371

$35.72

18

O-Ring

420950890

$4.28

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.85

21

Thrust Washer

420227945

$3.86

22

Water Impeller

420222505

$14.92

23

Gasket This part replaces 420931810.

420931811

$13.26

24

Water Pump Housing

420922630

$59.20

25

Hex. Screw M6 X 25

420240034

$1.56

26

O-Ring

293300041

$7.05

27

Oil Pump Ass'y

420888780

$386.89

OIL PUMP ASSY - Call your local BRP dealership | 800 H.O. no DPM

420888770

Unavailable

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Hose 1500Mm Long

219704404

$13.62

30

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

31

Short Block Ass’Y | Grand Touring 500.

420049304

Unavailable

Short Block Ass’Y | Grand Touring 600.

420059307

Unavailable

Short Block Ass’Y

420069308

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Sealant Loctite 648

219703000

$35.72

34

Dow Corning 111, 150 g

413707000

$57.82

35

Petamo Grease, GHY133N, 400 g

420899271

$57.17

36

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

37

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

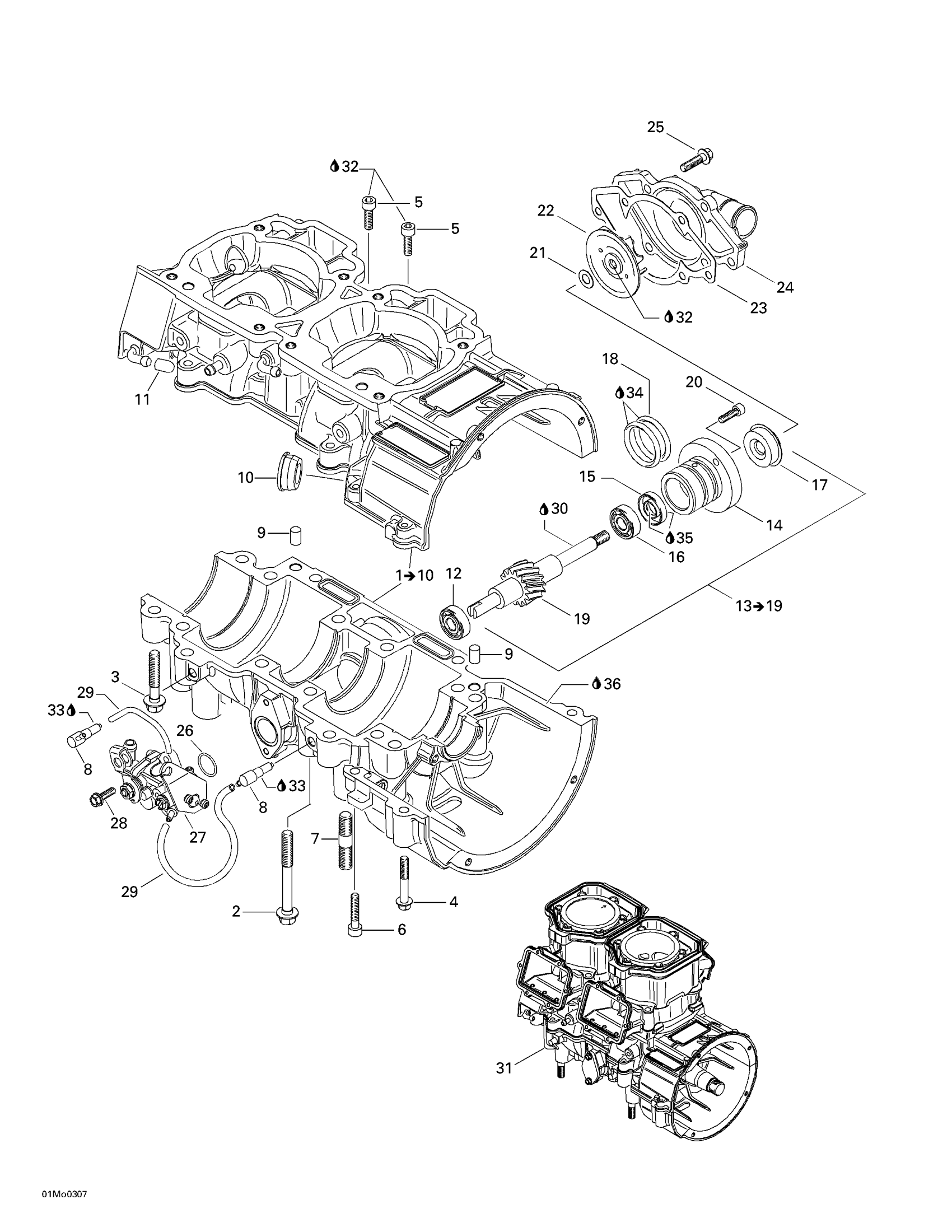

Ski-Doo Legend 500/600/700, 2003 Crankcase, Water Pump And Oil Pump Diagram
