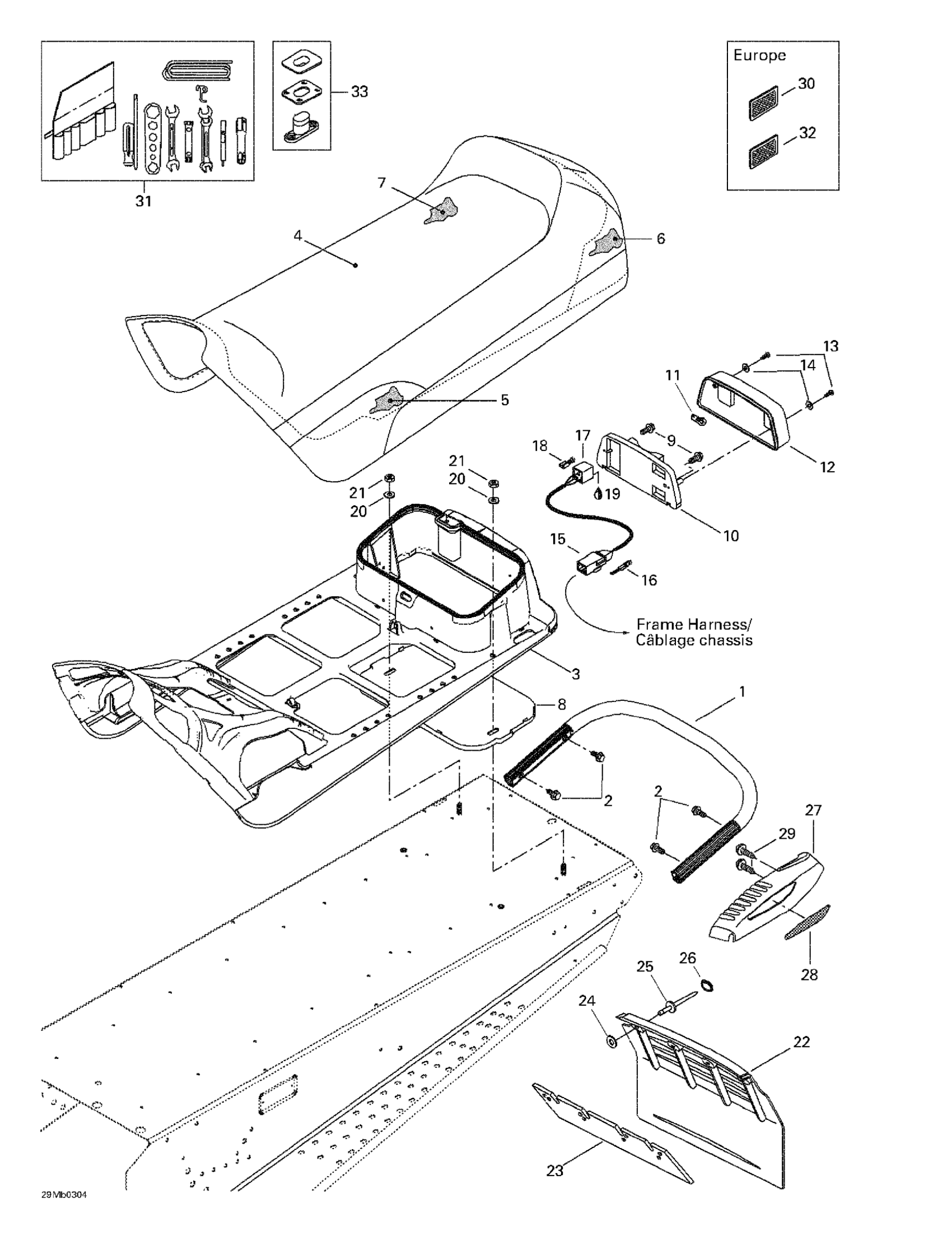

Ski-Doo Legend 380F/550F, 2003 Seat And Accessories Diagram
#
Description
Price
1
REAR BUMPER - Call your local BRP dealership
518322708
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Seat Base
510003983
Unavailable
4
Seat Cover
510004063
Unavailable
Seat Cover | Sport / SE (B-160)
510004151
Unavailable
5
SEAT FOAM - Call your local BRP dealership
510003944
Unavailable
6
Rear Seat Foam
510003945
Unavailable
7
Seat Foam | Legend SE 800 SDI.
510004032
Unavailable
8
UNDER CHEST - Call your local BRP dealership
572107601
Unavailable
9
Hex. Screw #10 X 1"
732603006
Unavailable
10
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
12
Lens
414513700
Unavailable
13
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
14
Washer - Call your local BRP dealership
414516400
Unavailable
17
Female Terminal Housing, 3 Circuits
515175250
Unavailable
18
Female Terminal
561503100
Unavailable
19
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
21
Hex. Elastic Stop Nut M8
232581414
Unavailable
22
SNOW GUARD - Call your local BRP dealership
520000229
Unavailable
Snow Guard
572103804
Unavailable
23
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
25
Pop Rivet 3/16”
293150087
Unavailable
26
Cap
415073300
Unavailable
27
RH MOULDING KIT - Call your local BRP dealership | Sport / SE
861777700
Unavailable
LH Moulding Kit | Sport / SE
861777800
Unavailable
28
RH Reflector, Red
516000237
Unavailable
RH Reflector, Yellow, Europe | SE GT Europe
516000241
Unavailable
LH Reflector, Red
516000238
Unavailable
LH Reflector, Yellow, Europe | SE GT Europe
516000242
Unavailable
29
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
31
Tool Kit
529035881
Unavailable
33
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
