Partiron

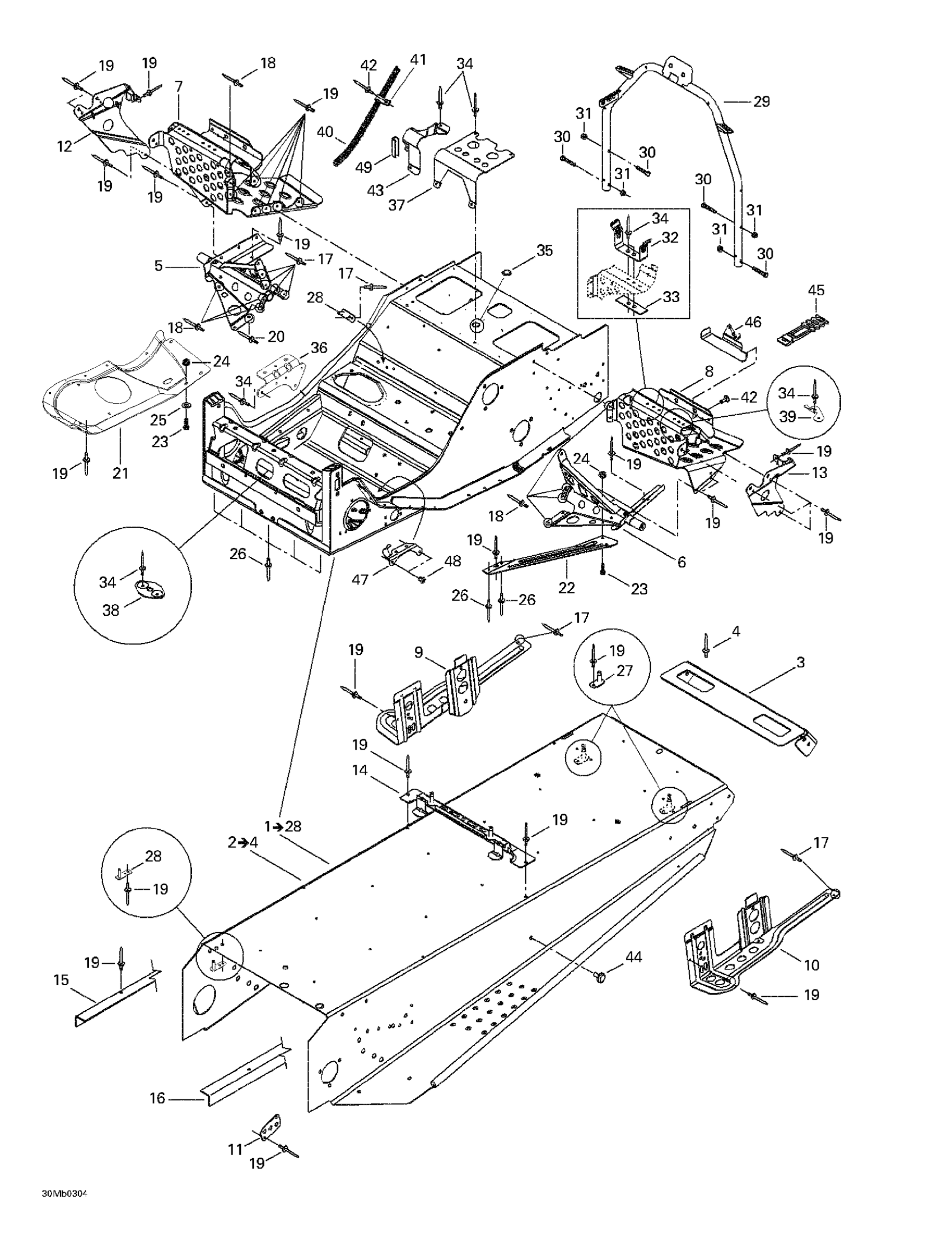

Ski-Doo Legend 380F/550F, 2003 Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 28.

415128550

Unavailable

2

Forming Frame | Includes Items 2 to 4

518323023

Unavailable

3

REAR CAP - Call your local BRP dealership

518321303

$40.74

4

Pop Rivet 3/16"

390402200

$0.26

5

RH Footrest Support

518320506

Unavailable

6

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

$104.58

7

RH Footrest

518323563

Unavailable

8

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

9

RH Slide Bracket

518319742

Unavailable

10

LH Slide Bracket

518319743

Unavailable

11

Reinforcement Plate

518321321

Unavailable

12

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

$12.65

13

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

$12.65

14

FUEL TANK BRACKET - Call your local BRP dealership

518321510

$17.66

15

RH Frame Reinforcement

518323193

Unavailable

16

LH Frame Reinforcement

518323195

Unavailable

17

Avex Rivet

390909200

Unavailable

18

Avex Rivet

390909100

$0.29

19

Pop Rivet 3/16"

390402200

$0.26

20

Pop Rivet 3/16"

390402300

Unavailable

21

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

$25.35

22

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

$11.06

23

Hex. Screw M5 X 20

207152044

$0.88

24

Hex. Flange Elastic Nut M5

233251414

Unavailable

25

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

26

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

27

Seat Bracket

518323321

Unavailable

28

Double Bracket

518323173

Unavailable

29

Handle Support

518322755

Unavailable

30

Hex. Flange Screw M6 X 35

207663544

$0.74

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Belt Guard Bracket

518202100

$16.12

33

REINFORCEMENT - Call your local BRP dealership

518207500

$6.31

34

Pop Rivet 3/16"

390402200

$0.26

35

CAP - Call your local BRP dealership

414859400

$2.78

36

Muffler Support

518322635

Unavailable

37

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

38

Plate Bracket

518201307

Unavailable

39

TOOL KIT BRACKET - Call your local BRP dealership

518322031

$3.82

40

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

41

Open Clamp

518321570

Unavailable

42

Pop Rivet 3/16"

293150103

Unavailable

43

Hose Support

518322699

Unavailable

44

Panel Fastener

518321954

Unavailable

45

LATCH - Call your local BRP dealership

570069700

Unavailable

46

Tool Kit Support

518321999

Unavailable

47

Cable Support

515175254

Unavailable

48

Pop Rivet 3/16"

390402300

Unavailable

49

Was 271000110 Protection Trim

219704353

Unavailable
