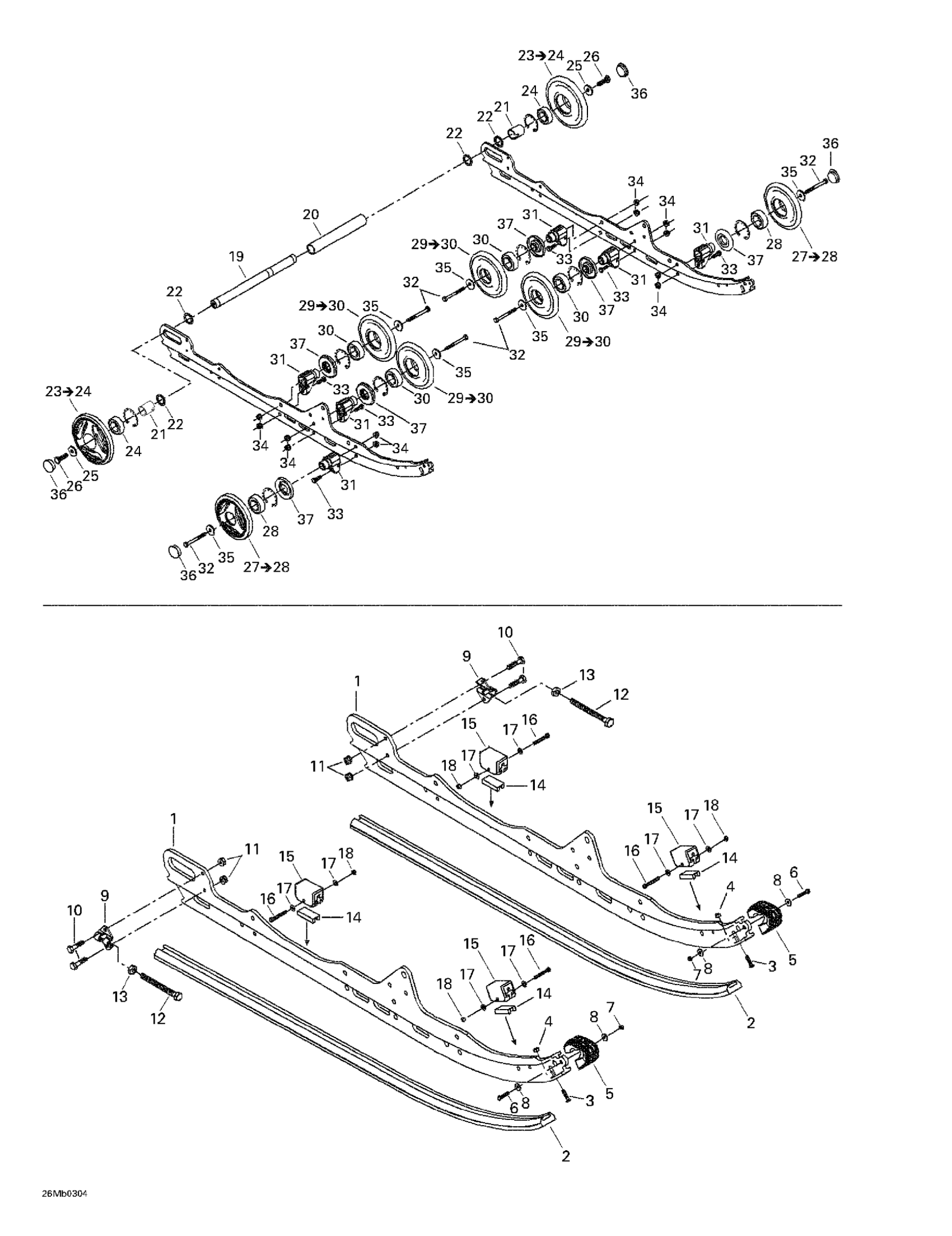

Ski-Doo Legend 380F/550F, 2003 Rear Suspension Diagram

#

Description
Price

1

Runner

503189707

Unavailable

2

Runner Shoe

560103300

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.72

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Reinforcement Stopper

572084800

$5.25

15

Rubber Stopper

570063000

Unavailable

16

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Elastic Stop Nut M5

232551414

$0.72

19

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

20

SPACER - Call your local BRP dealership

503188941

Unavailable

21

Outer Spacer

503189809

$15.35

22

Washer

503180400

$3.37

23

Wheel 165 mm Yellow

503190817

$49.97

23

Wheel 165 mm

503190856

$49.97

24

Ball Bearing

293350115

$11.15

25

Washer

503183300

$5.68

26

Hex. Screw With Nylon

250000019

$1.42

27

Wheel 135, Yellow

503190785

$32.28

27

Wheel 135 | Includes 18 to 19

503190797

$32.28

28

Ball Bearing

293350115

$11.15

29

Wheel 135

503191029

$32.28

30

Ball Bearing

293350115

$11.15

31

SUPPORT - Call your local BRP dealership

503190389

Unavailable

32

Hex. Screw M8 X 80

207088044

$1.58

33

Hex. Screw M8 X 25

207182544

$0.74

34

Hex. Flange Elastic Nut M8

233281414

$1.14

35

Washer

503183100

$3.08

36

Wheel Cap

570063600

$3.28

37

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
