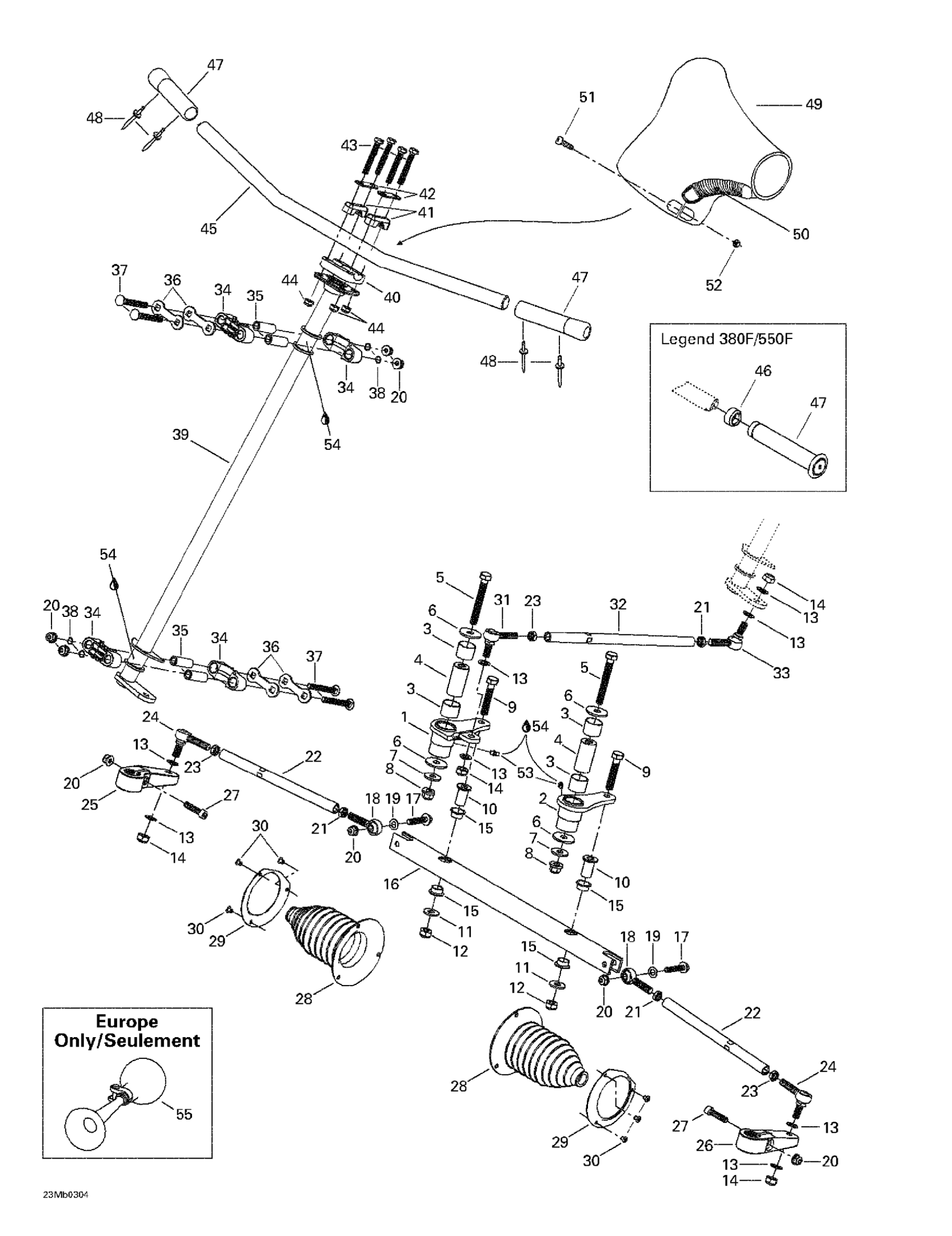

Ski-Doo Legend 380F/550F, 2003 Steering System Diagram

#

Description
Price

1

Handle Ass’Y

512059624

Unavailable

1

Handle Ass'y

512060214

Unavailable

2

Kill Switch

515175410

Unavailable

3

Brake Switch

507032318

Unavailable

4

DIMMER SWITCH - Call your local BRP dealership

507032314

Unavailable

5

Microswitch

507032366

Unavailable

6

Male Terminal

515175232

$1.49

7

Heating Element

515175682

Unavailable

7

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

8

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

9

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

10

Tie Wrap 94 mm | 4X4

293750001

$0.83

11

Tie-Rap 180 mm

414115200

$0.09

12

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

13

Male Housing, 3 Circuits

515175494

$15.35

14

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

15

Male Terminal

515175232

$1.49

16

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

17

BRAKE HOUSING - Call your local BRP dealership

515175696

Unavailable

18

Socket Set Screw M8 X 10

414440800

$4.00

19

LIGHT SWITCH - Call your local BRP dealership

515175814

Unavailable

20

Male Terminal

515175232

$1.49

21

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

22

Switch Decal

415025500

Unavailable
