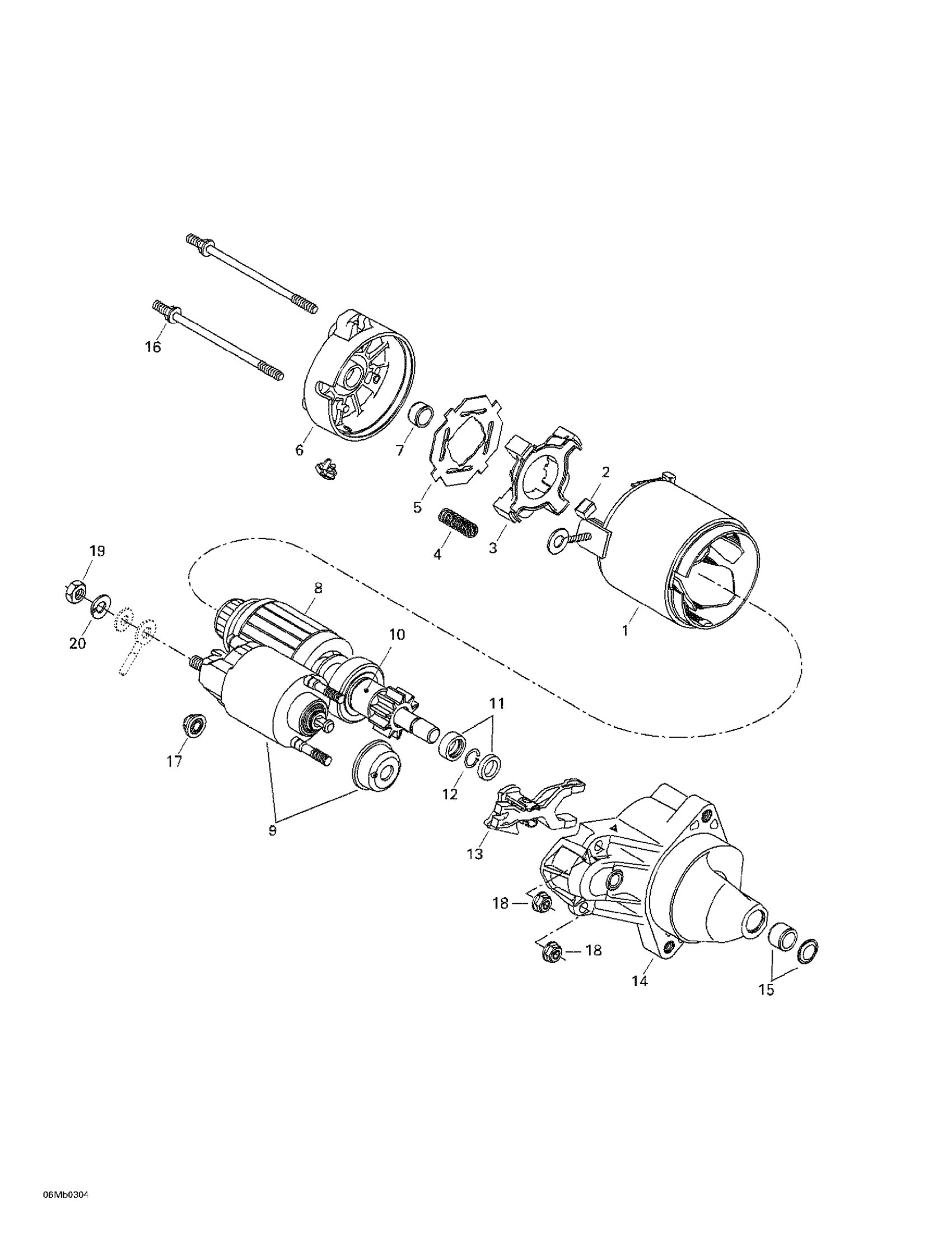

Ski-Doo Legend 380F/550F, 2003 Electric Starter Diagram

#

Description
Price

1

STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A

515175795

Unavailable

1

Starter Housing

410213106

Unavailable

2

BRUSH KIT - Call your local BRP dealership

410213107

$15.35

3

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

4

BRUSH SPRING - Call your local BRP dealership

410209800

$1.91

5

INSULATOR - Call your local BRP dealership

410209900

Unavailable

6

HOUSING - Call your local BRP dealership

410213108

$18.43

7

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

8

Armature Assy.

410210200

Unavailable

9

SWITCH ASSY. - Call your local BRP dealership

410210300

$194.99

10

STARTER CLUTCH - Call your local BRP dealership

410210400

$201.51

11

NUT - Call your local BRP dealership

410212500

$28.43

12

CIRCLIP - Call your local BRP dealership

410212600

$4.77

13

Lever

410213109

Unavailable

14

Housing

410213113

Unavailable

15

BRASS BUSHING - Call your local BRP dealership

410210900

$8.77

16

BOLT - Call your local BRP dealership

410212000

$10.00

17

NUT - Call your local BRP dealership

410211100

$4.77

18

NUT - Call your local BRP dealership

410211200

$4.77

19

Hex. Nut M8

232081414

Unavailable

20

Lock Washer 8 mm

234181401

Unavailable
