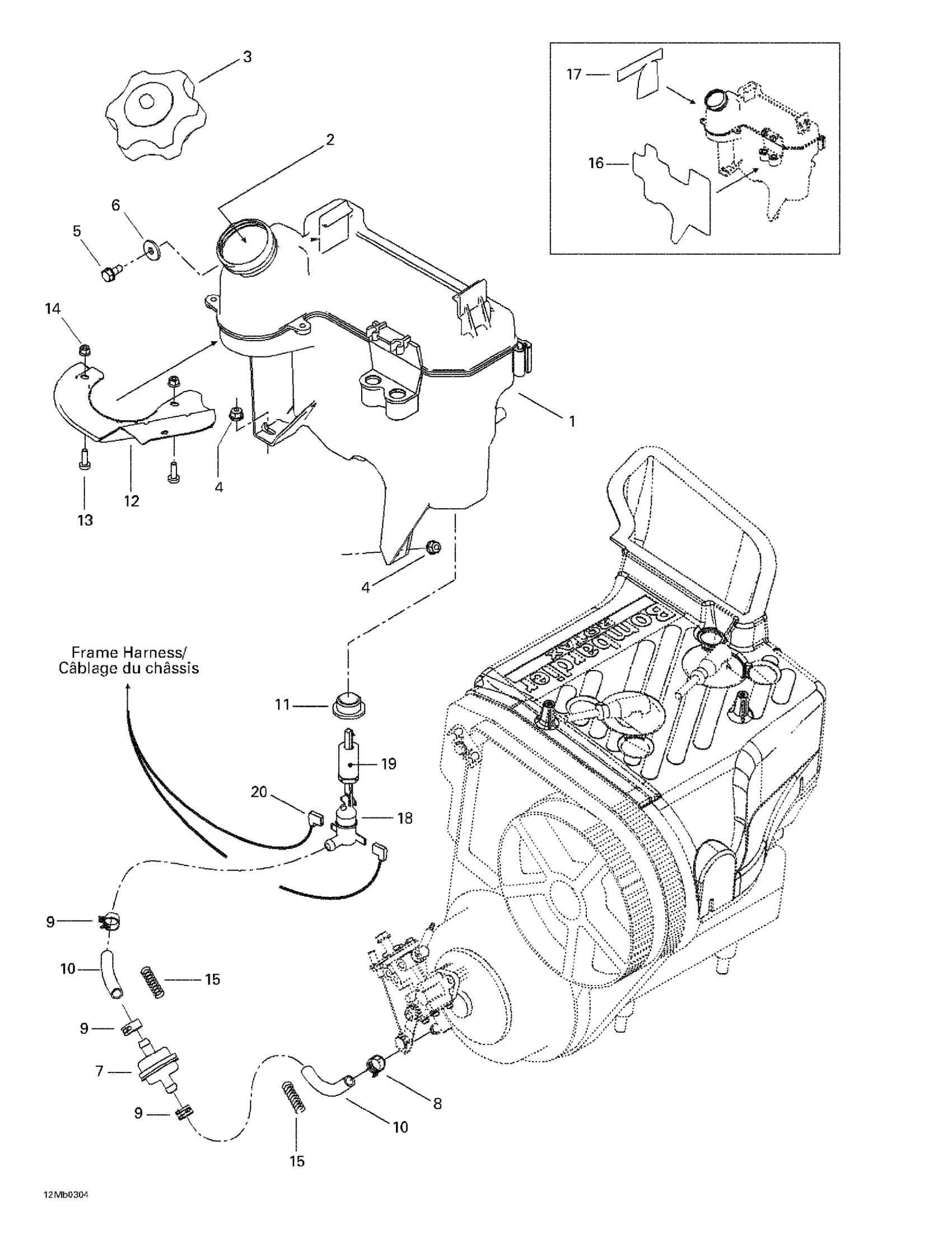

Ski-Doo Legend 380F/550F, 2003 Oil Tank And Support Diagram
#
Description
Price
1
Injection Oil Tank
519000041
Unavailable
2
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.
293600120
Unavailable
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
Unavailable
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership
413710500
Unavailable
3
CAP - Call your local BRP dealership
519000042
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
6
Lock Washer Serrated M6
250200041
Unavailable
8
Spring Clamp
414420700
Unavailable
11
Insulating Ring
570023000
Unavailable
12
Deflector
519000043
Unavailable
13
Hex. Screw M5 X 16
208651641
Unavailable
14
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
SPRING_COMPRESSION - Call your local BRP dealership
414940300
Unavailable
16
REFLECTIVE SHEET - Call your local BRP dealership
519000059
Unavailable
17
REFLECTIVE SHEET - Call your local BRP dealership
519000051
Unavailable
18
LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A
414681800
Unavailable
19
Float
414681900
Unavailable
