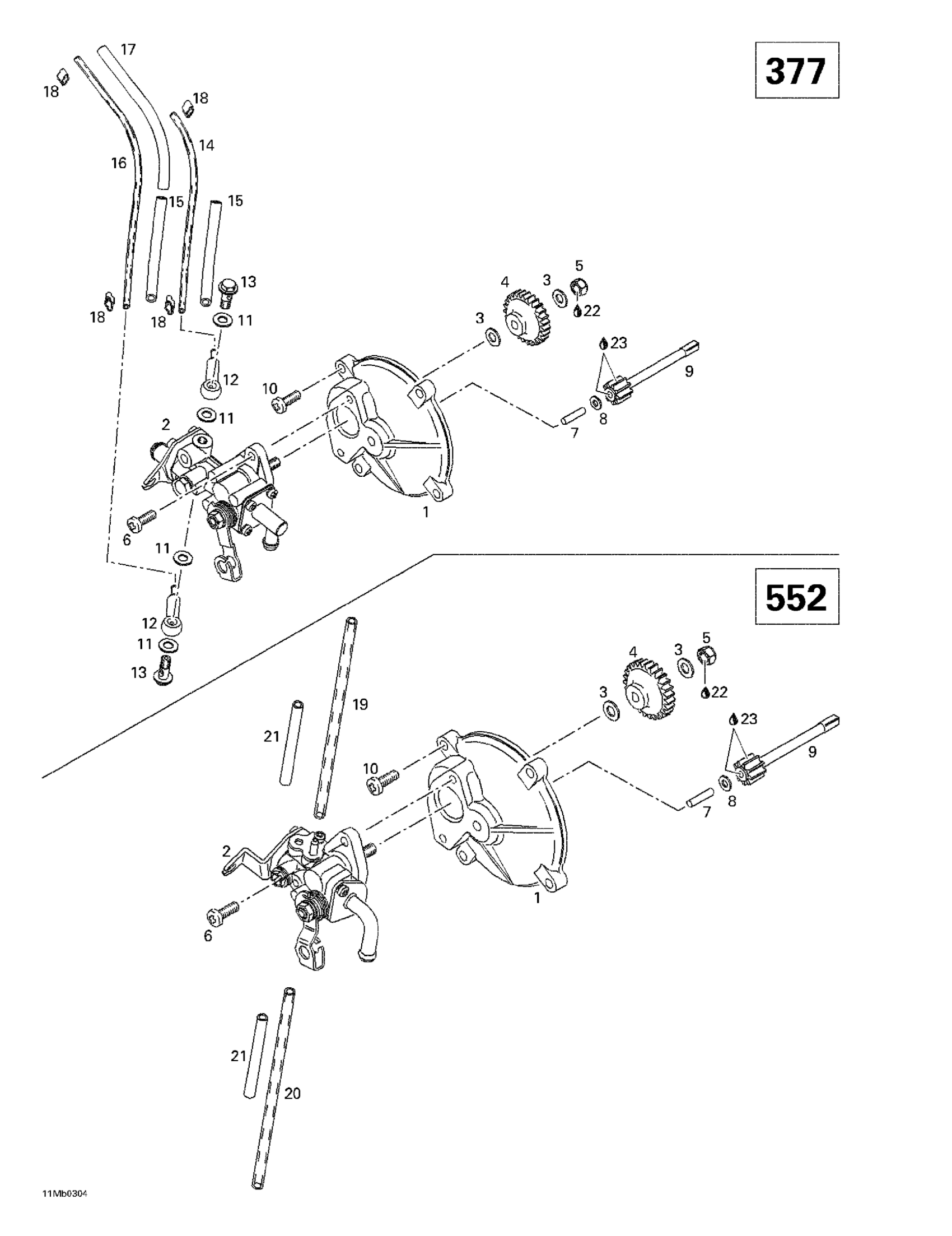

Ski-Doo Legend 380F/550F, 2003 Oil Injection System Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

Oil Pump Ass'y | 380 F.

420887997

Unavailable

OIL PUMP ASSY - Call your local BRP dealership

420889070

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$14.10

5

Elastic Stop Nut M6

232561414

$1.78

6

Screw

420841971

$2.82

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$0.81

9

Gear, 9 Teeth

420935970

$14.90

10

SCREW - Call your local BRP dealership

420841976

Unavailable

11

Sealing Washer

404146600

$0.72

12

Valve Ass’Y

420956010

$16.39

13

Banjo Bolt M6 X 16

404146800

Unavailable

14

Oil Hose 1500Mm Long

219704404

$15.64

15

Isolation Line 90 mm | 380 F.

420960750

Unavailable

16

Oil Hose 1500Mm Long

219704404

$15.64

17

Hose 6 Mm 15000Mm Long

219704360

$120.12

18

Clamp

420853840

$4.15

19

Oil Hose 1500Mm Long

219704404

$15.64

20

Oil Hose 1500Mm Long

219704404

$15.64

21

Isolation Line

420960728

$4.15

22

Loctite 243, 10 ml

293800060

$21.49

23

Dow Corning 111, 150 g

413707000

$59.99
