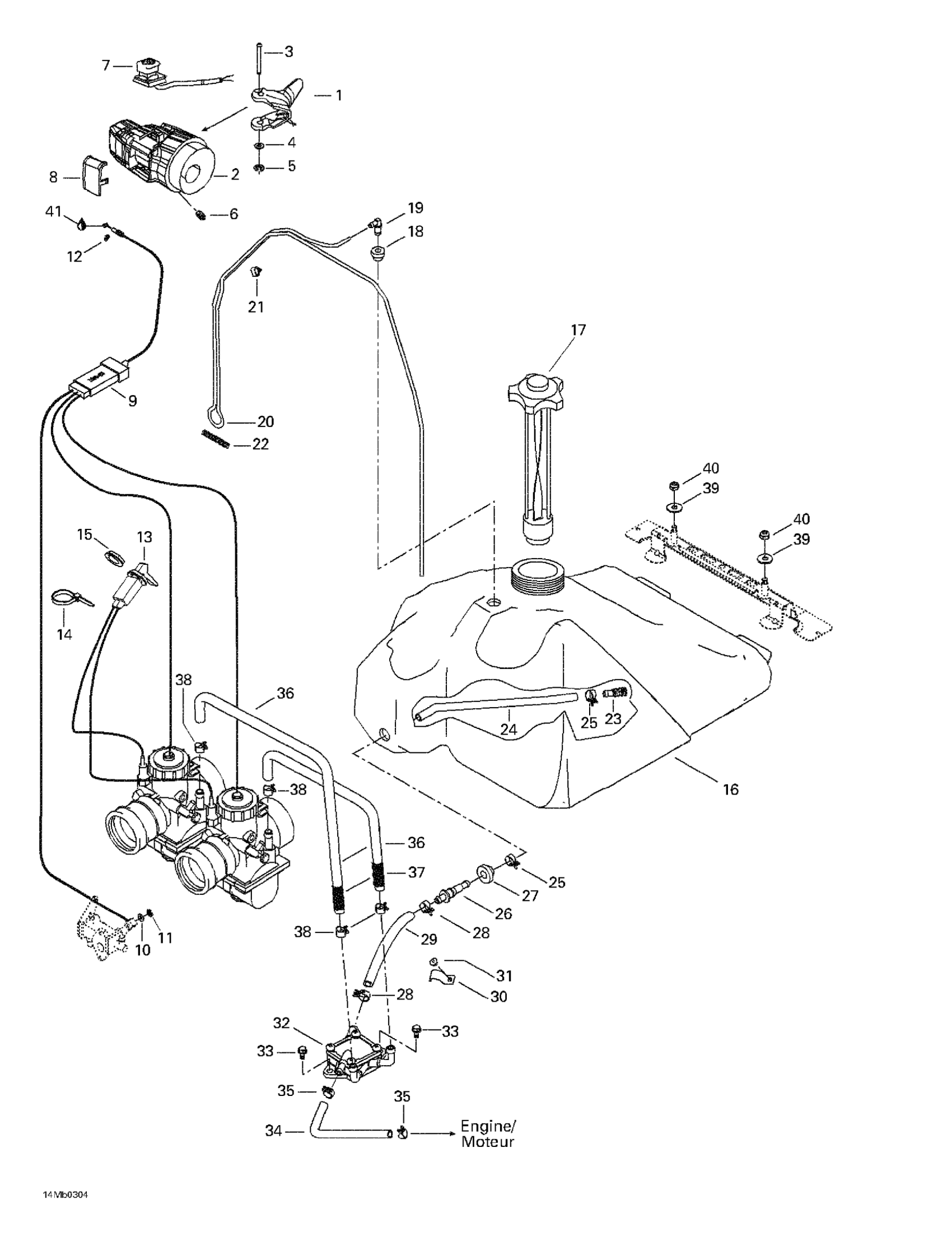

Ski-Doo Legend 380F/550F, 2003 Fuel System Diagram

#

Description
Price

1

Handle Ass’Y

512059624

$85.79

Handle Ass'y

512060214

$114.15

2

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

Throttle Handle Housing

572100900

Unavailable

3

Lever Pin

414438700

$10.81

4

Flat Washer M5, Stainless

234051600

$0.73

5

Circlip | Model-RS

414439000

$4.01

6

Socket Set Screw M8 X 10

414440800

$3.88

7

Kill Switch

515175410

Unavailable

8

Switch Cover

572100901

$14.10

9

THROTTLE CABLE - Call your local BRP dealership

512059625

Unavailable

10

Flat Washer 8 mm, Nylon

234081100

$1.15

11

Circlip

414753500

$0.67

12

Circlip

414274500

$0.85

13

CHOKE CABLE - Call your local BRP dealership

512059441

Unavailable

14

Tie-Rap 173 mm

293750009

$0.97

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Fuel Tank

513032987

Unavailable

17

Fuel Tank Cap | Sport / Sport GT

513033020

$34.30

18

Grommet

513032908

$8.48

19

Male Connector

414814100

$2.12

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

21

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

22

SPRING - Call your local BRP dealership

414818200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

24

Hose

415005700

$5.47

25

Norma Spring Clamp

513033010

$8.42

26

Male Connector

414872700

Unavailable

27

Grommet | Europe

707800347

$8.70

28

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

29

Formed Hose

513032903

$27.58

30

CLIP - Call your local BRP dealership

415018200

Unavailable

31

Pop Rivet 3/16"

293150103

$0.52

32

Fuel Pump

403901813

$84.99

33

Hex. Flange Screw M6 X 16

210261650

$1.40

34

Hose

219704549

$46.24

35

Spring Clamp

414415200

$0.81

36

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

37

Tubing 16 Mm 1000Mm Long

219704408

$7.15

38

Universal Spring Clamp

513033029

$4.96

39

Flat Washer 8 mm

234082410

$1.27

40

Hex. Elastic Stop Nut M8

232581414

$0.54

41

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
