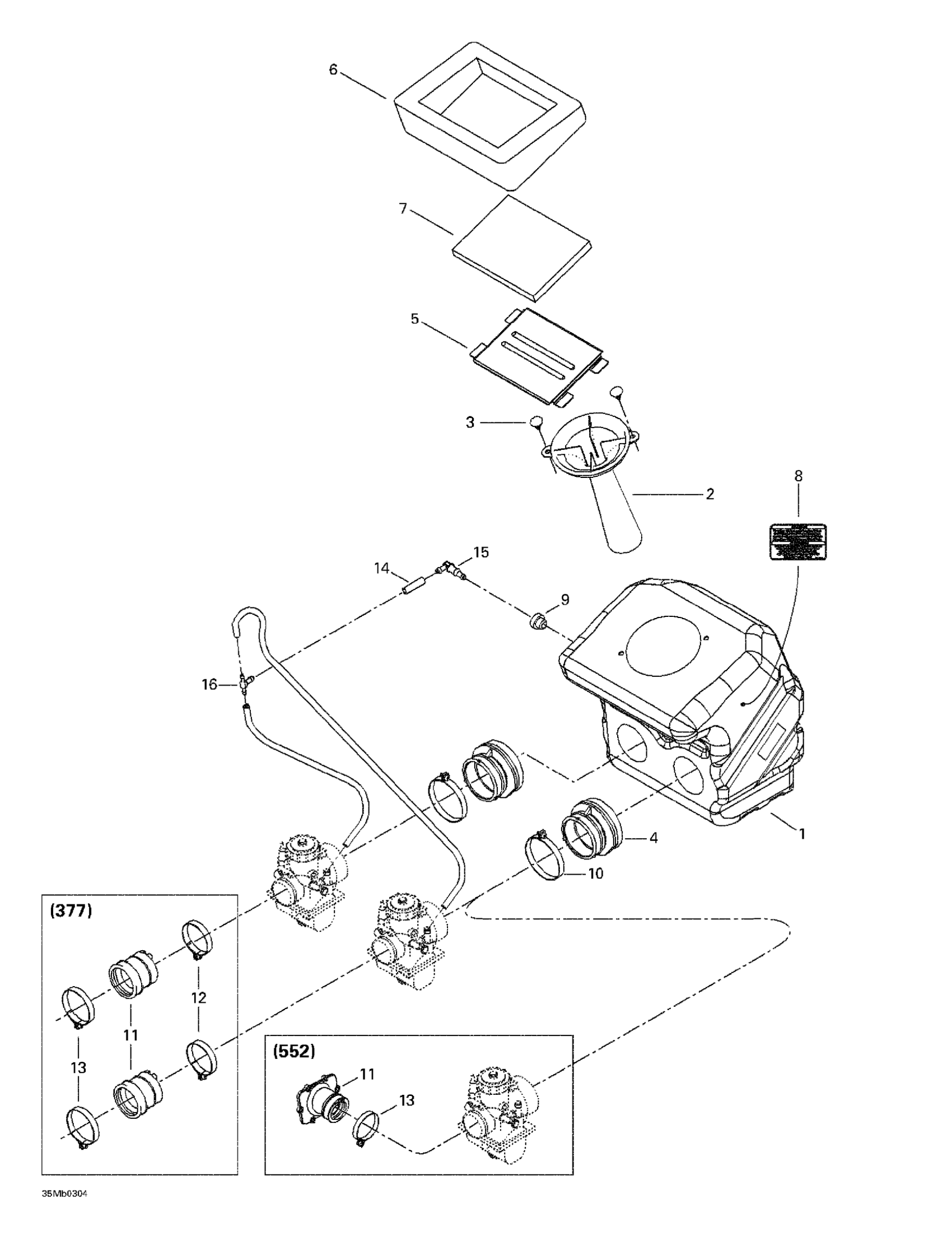

Ski-Doo Legend 380F/550F, 2003 Air Intake System Diagram

#

Description

Price

1

Air Intake | 380 F.

508000211

Unavailable

Air Intake | 550F

508000319

Unavailable

2

Inlet Tube

572054803

Unavailable

3

Black, Dart

414644300

$0.78

4

Adaptor 34 mm

508000203

Unavailable

5

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

6

Outer Foam

508000245

Unavailable

7

Air Filter

508000154

Unavailable

8

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

9

Grommet

513032908

$8.74

10

Gear Clamp

508000217

Unavailable

11

Carburetor Socket

420867100

Unavailable

Carburetor Adaptor

512059478

Unavailable

12

Clamp

512059395

Unavailable

13

Gemi Clamp | Not Shown

512059834

$10.52

14

Polyurethane Hose 10000Mm Long

219704410

Unavailable

15

Elbow Male Connector

414580600

$3.50

16

T-Fitting

572045500

Unavailable
