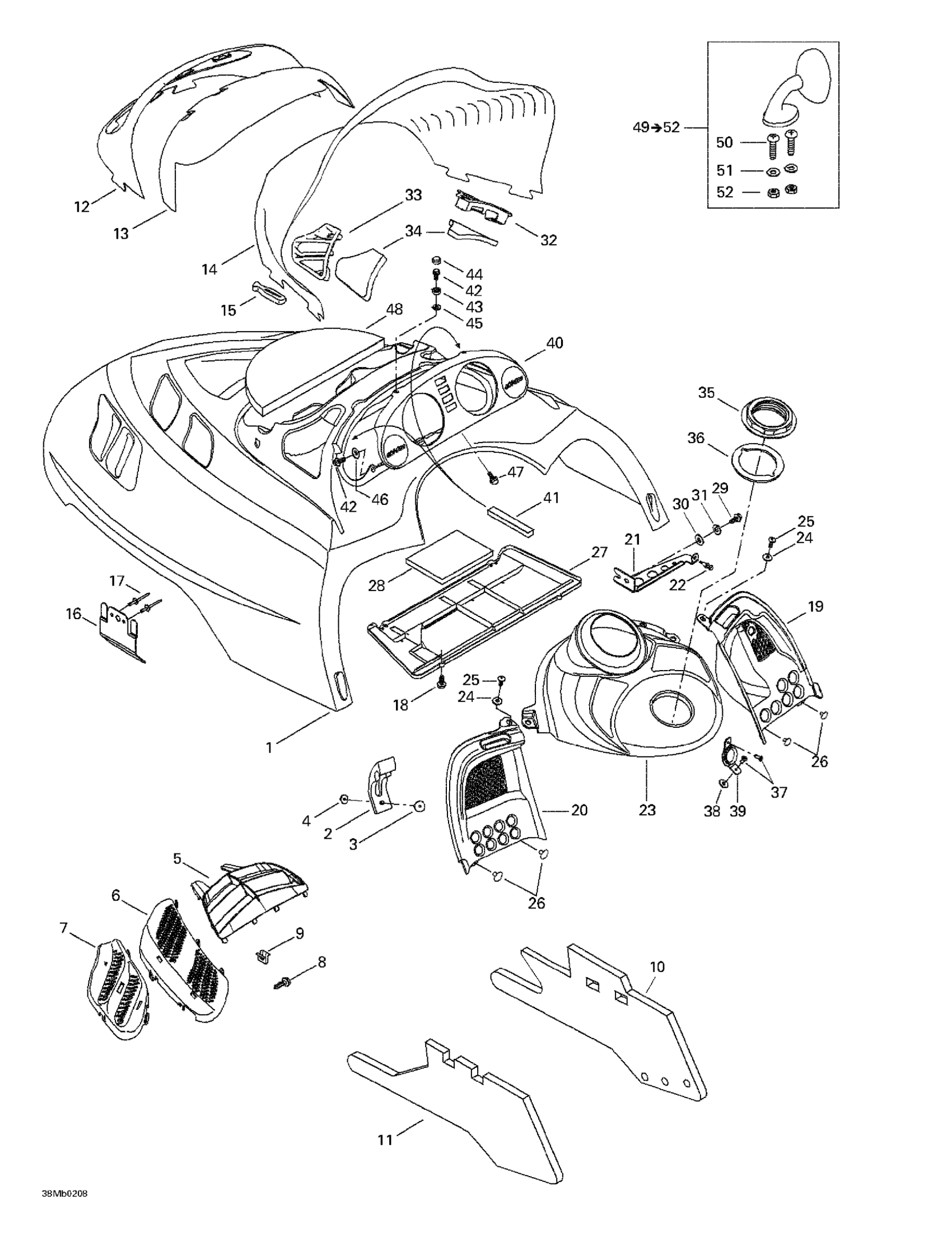

Ski-Doo Legend 380F/500F, 2002 09- Cab, Console Diagram

#

Description
Price

1

2000 Yellow, Hood | MX Z 380 F. MX Z 500 F.

517302528

Unavailable

Deep Black, Hood

517302529

Unavailable

Deep Black, Hood

517302529

Unavailable

Hood (Blue (B-225)) | Legend 380 F. Legend 500 F.

517302685

Unavailable

Hood (2 tons) | Legend 380 F. Legend 500 F.

517302581

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Washer

517124300

$0.19

5

Center Grill, Black

517302676

Unavailable

6

RH Intermediate Grill, Black

517302567

Unavailable

LH Intermediate Grill, Black

517302568

Unavailable

7

RH Side Grill

517302569

Unavailable

LH Side Grill

517302570

Unavailable

8

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

9

Edge Clip

517302785

$0.88

10

RH Side Foam

517302669

Unavailable

11

LH Side Foam

517302670

Unavailable

12

Headlamp Moulding

517302582

Unavailable

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

13

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

14

Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F

517302022

$95.99

WINDSHIELD - Call your local BRP dealership

517302356

Unavailable

15

Windshield Latch

570023800

$4.49

16

Hood Guide

517302615

Unavailable

17

Pop Rivet 3/16”

390910000

$0.57

18

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

19

RH Console

517302561

Unavailable

20

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

21

RH Console Support

517302621

Unavailable

22

Rubber Stopper

517302624

Unavailable

23

Deep Black, Center Console

517302563

Unavailable

2000 Yellow, Center Console | MX Z 380 F. MX Z 500 F.

517302566

Unavailable

Deep Black, Center Console

517302564

Unavailable

Deep Black, Center Console

517302564

Unavailable

24

Washer | DS 650 X

391301600

$0.48

25

Forming Screw M5 x 16

250000676

$1.01

26

Pop Rivet 3/16"

390406500

$0.88

27

Air Intake Plate

517302578

Unavailable

28

Secondary Foam

517302425

Unavailable

29

Hex. Flange Screw M6 X 12

210261250

$1.90

30

Flat Washer 6 mm

234061410

$1.36

31

Lock Washer M6, Black

234161471

$0.53

32

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

33

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

34

Air Intake Foam

517302151

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

293250029

$14.82

37

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

38

Rubber Stopper

517302286

Unavailable

39

Rope Guide

517302129

Unavailable

40

Indicator Support

517302536

Unavailable

41

Foam

517302420

Unavailable

42

Screw K40 X 10

241140060

$1.48

43

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

44

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

45

Flat Washer 4 mm, Stainless

234042600

$1.15

46

Washer

517124300

$0.19

47

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

48

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

Unavailable

49

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

Unavailable

50

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

51

Washer

517124300

$0.19

52

Elastic Stop Nut M4

232541414

$0.58
