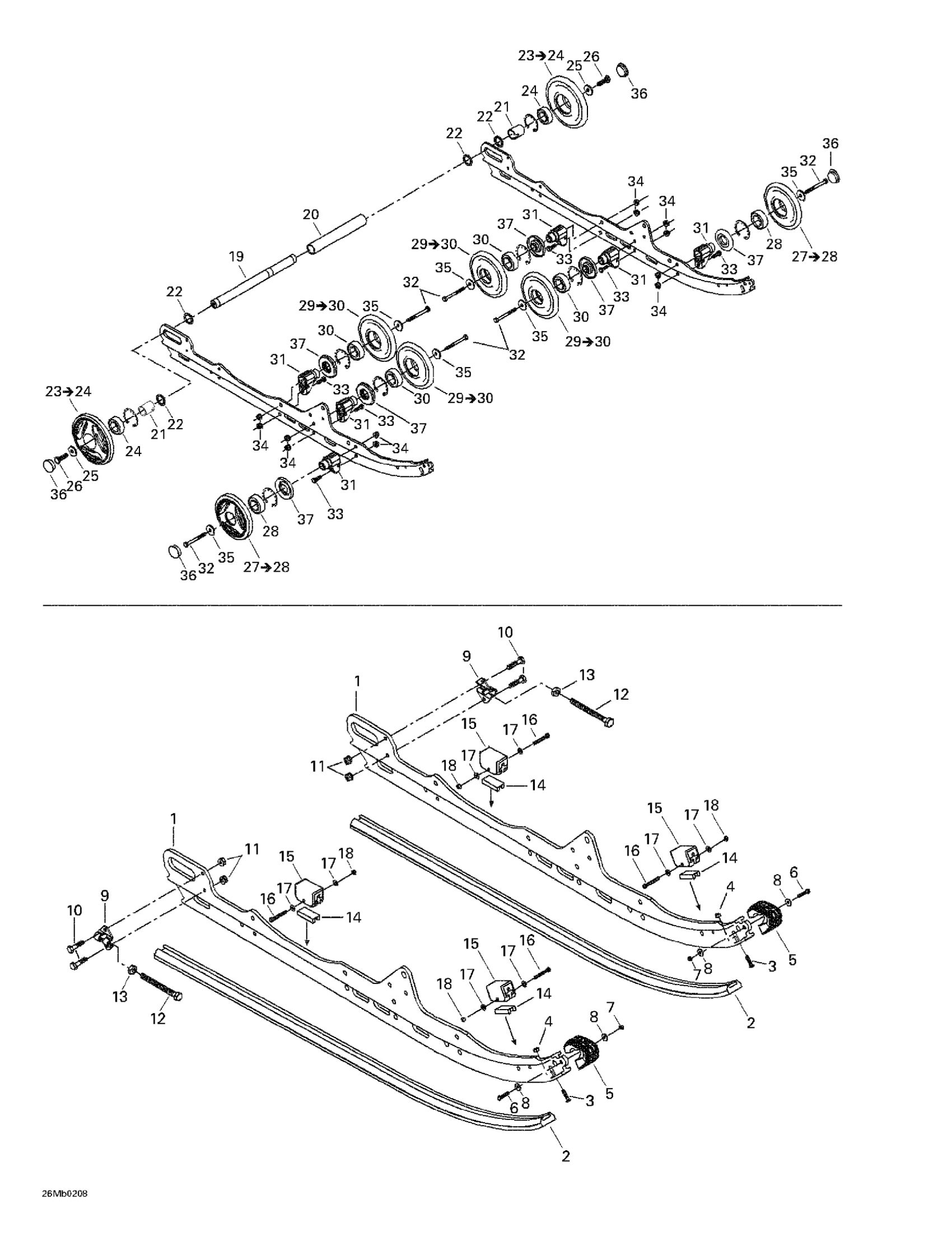

Ski-Doo Legend 380F/500F, 2002 08- Rear Suspension Diagram

Runner

503189707

Unavailable

Runner Shoe

560103300

$29.49

Phillips Screw M6 X 25

208562560

$2.32

Elastic Stop Nut M6

232561414

$0.55

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

Elastic Stop Nut M5

232551414

$0.87

Washer | DS 650 X

391301600

$0.48

Tensioner

503155300

Unavailable

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Reinforcement Stopper

572084800

$12.99

Rubber Stopper

570063000

Unavailable

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Elastic Stop Nut M5

232551414

$0.87

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

SPACER - Call your local BRP dealership

503188941

Unavailable

Outer Spacer

503189809

$18.89

Washer

503180400

$3.49

Wheel 165 mm Yellow

503190817

$51.99

Wheel 165 mm

503190856

$51.99

Ball Bearing

293350115

$12.11

Washer

503183300

$5.82

Hex. Screw With Nylon

250000019

$1.69

Wheel 135, Yellow

503190785

$33.99

Wheel 135 Ass'y (Full Moon) | Includes 27 - 28. Legend 380 F. Legend 500 F.

572189411

Unavailable

Ball Bearing

293350115

$12.11

Wheel 135

503191029

$33.99

Ball Bearing

293350115

$12.11

SUPPORT - Call your local BRP dealership

503190389

Unavailable

Hex. Screw M8 X 80

207088044

$1.68

Hex. Screw M8 X 25

207182544

$0.90

Hex. Flange Elastic Nut M8

233281414

$1.47

Washer

503183100

$3.17

Wheel Cap

570063600

$3.49

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
