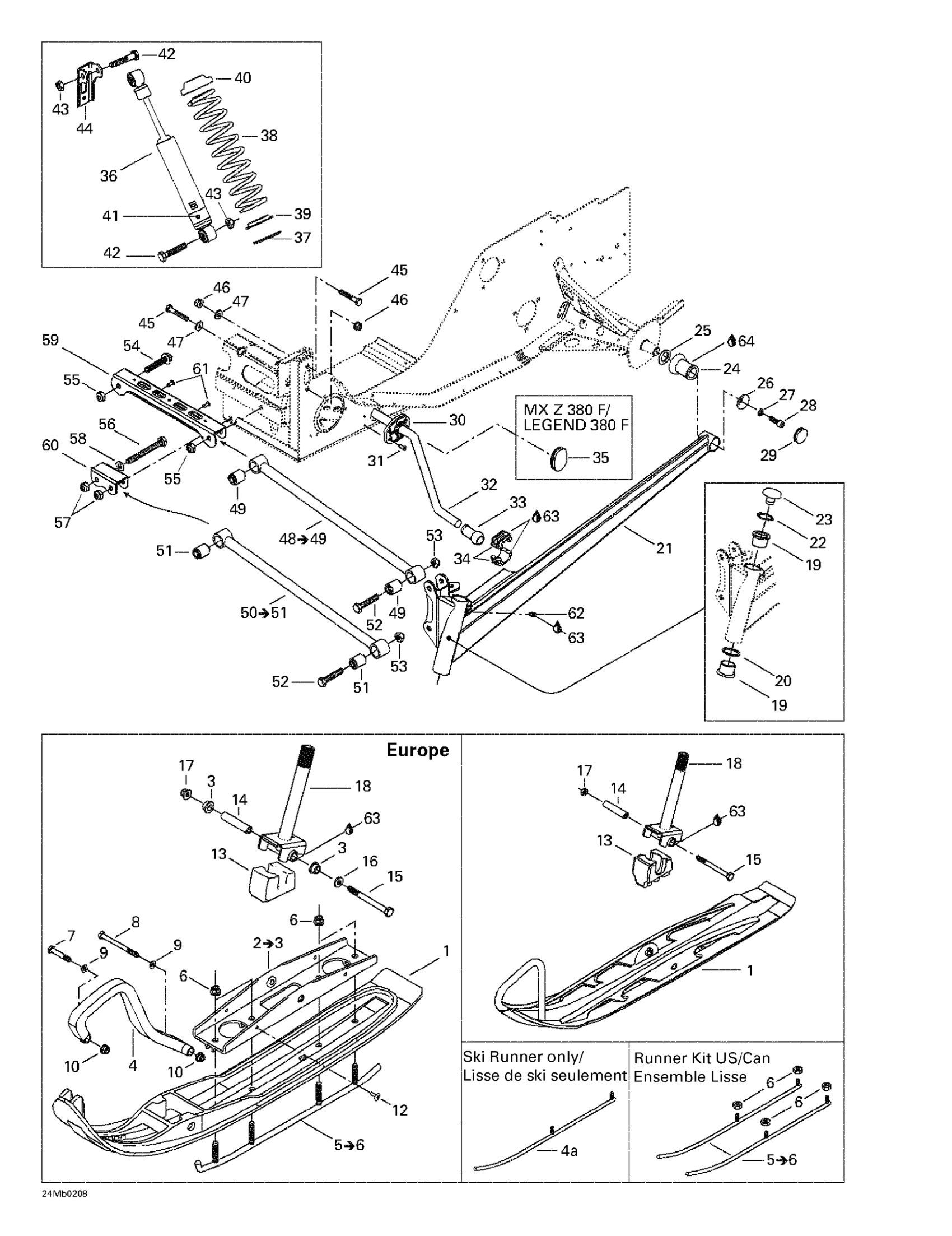

Ski-Doo Legend 380F/500F, 2002 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$127.99

1

Ski

505070325

Unavailable

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$35.99

4a

Ski Runner | All US/CAN Model and MXZ Europe

505070424

Unavailable

5

Carbide Runner Kit | Includes 5 to 6, US/CAN

860502300

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Elastic Locking Nut M10 X 1.5

233601416

$1.69

7

Hex. Screw M8 X 50

207085044

$1.48

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

13

Ski Stopper

505070324

Unavailable

13

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

14

Spacer

505070323

Unavailable

14

Spacer

506133300

$23.99

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

$0.58

17

Elastic Locking Nut M10 X 1.5

233601416

$1.69

17

Flange Nut M10

732610084

$6.79

18

Ski Leg

505070321

Unavailable

18

Ski Leg

506151234

Unavailable

19

Cushion

505070003

$9.23

20

WASHER - Call your local BRP dealership

505070004

Unavailable

21

RH ARM - Call your local BRP dealership

505070645

Unavailable

21

LH ARM - Call your local BRP dealership

505070646

Unavailable

22

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

23

Cap

572091300

$12.99

24

DAMPER - Call your local BRP dealership

570062200

Unavailable

25

WASHER - Call your local BRP dealership

503146700

Unavailable

26

CUP - Call your local BRP dealership

506079600

Unavailable

26

Cup | Package Hunter

705007171

$7.89

27

Lock Washer 8 mm

234181401

$0.92

28

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

29

CAP - Call your local BRP dealership

572045900

Unavailable

30

Bushing | 550F

505070191

Unavailable

31

Pop Rivet 3/16"

390402300

$0.75

32

Stabilisator | 550F

505070809

Unavailable

33

Ball Joint | 550F

505070816

Unavailable

34

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

35

Black, Nylon Cap

414916600

$4.69

36

Front Shock

505070695

Unavailable

37

WASHER - Call your local BRP dealership

505070401

Unavailable

38

Spring

505070393

Unavailable

Spring

505070686

Unavailable

39

Spring Guide

503187500

$10.49

40

Spring Stopper

706200881

$12.99

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Hex. Screw M10 X 55

207005544

$2.22

43

Elastic Locking Nut M10 X 1.5

233601416

$1.69

44

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

45

Hex. Screw M8 X 50

207085044

$1.48

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

Washer

506151245

$0.93

48

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

49

Bushing

505070025

Unavailable

50

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

51

Bushing

505070025

Unavailable

52

Hex. Screw M10 X 55

207005544

$2.22

53

Elastic Locking Nut M10 X 1.5

233601416

$1.69

54

Hex. Flange Screw M10 X 55

207605544

$3.38

55

Elastic Locking Nut M10 X 1.5

233601416

$1.69

56

Hex. Screw M10 X 95

207009544

Unavailable

57

Elastic Locking Nut M10 X 1.5

233601416

$1.69

58

Flat Washer 10 mm

234001410

$1.26

59

Upper Arm Bracket

505070010

Unavailable

60

Lower Arm Bracket

505070011

Unavailable

61

Pop Rivet 3/16"

390402200

$0.35

62

Grease Fitting

408200700

$3.49

63

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

64

Grease, Super Lube

293550030

$28.99
