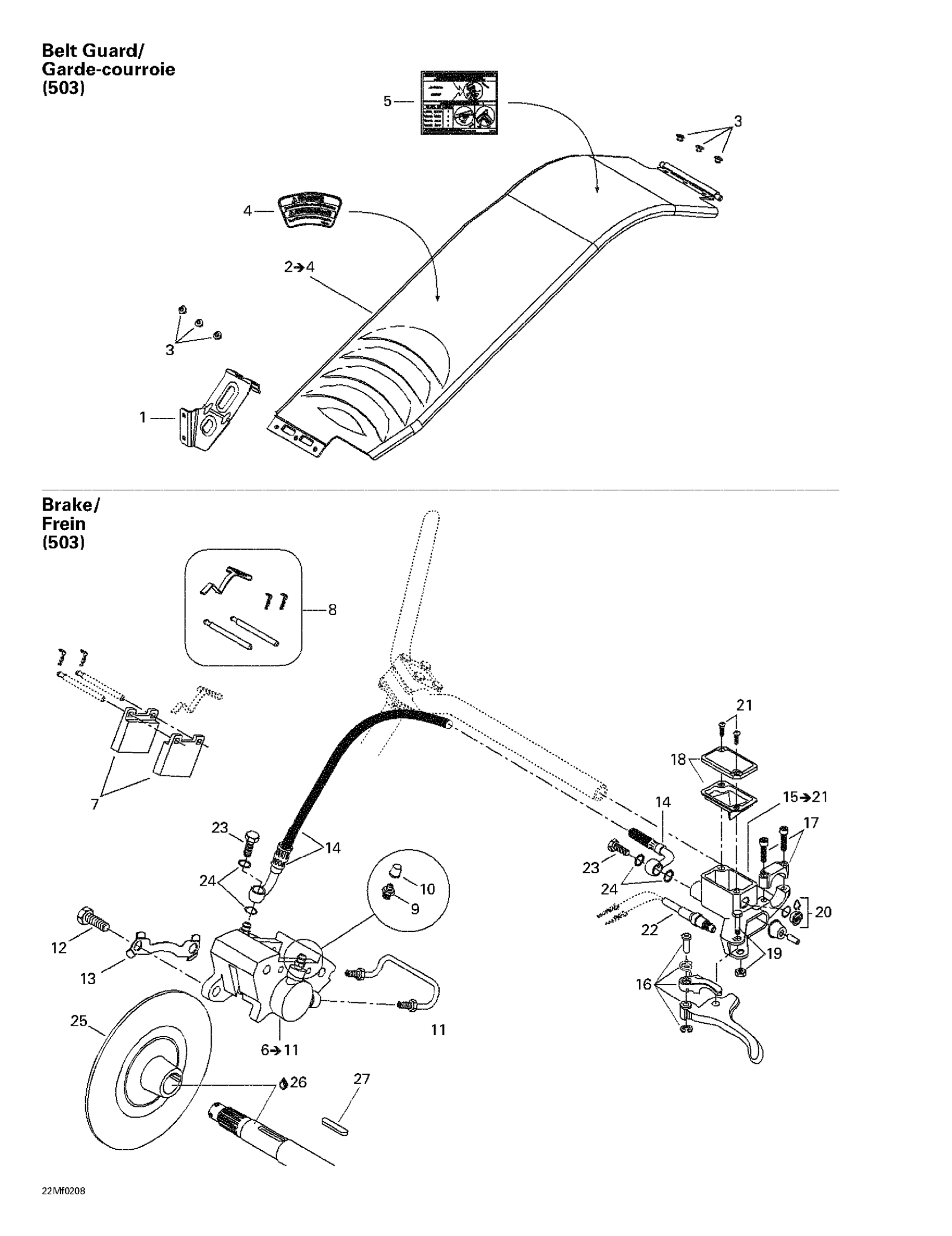

Ski-Doo Legend 380F/500F, 2002 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Bracket
417300172
Unavailable
2
Belt Guard Ass’Y | Includes Items 2 to 4
417300173
Unavailable
4
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
5
Suspension Adjustment Decal | MX Z 380 F. Legend 380 F.
516001244
Unavailable
6
Caliper | Includes 6 - 11. 500 F.
415034500
Unavailable
8
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
9
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
10
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
11
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
13
LOCKING TAB - Call your local BRP dealership
507032316
Unavailable
14
HOSE - Call your local BRP dealership
507032237
Unavailable
15
Master Cylinder | Includes 1 to 8
507032293
Unavailable
16
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
20
WINDOW - Call your local BRP dealership
414990600
Unavailable
21
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
25
Brake Disk
507032203
Unavailable
26
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
27
KEY - Call your local BRP dealership
507021300
Unavailable
