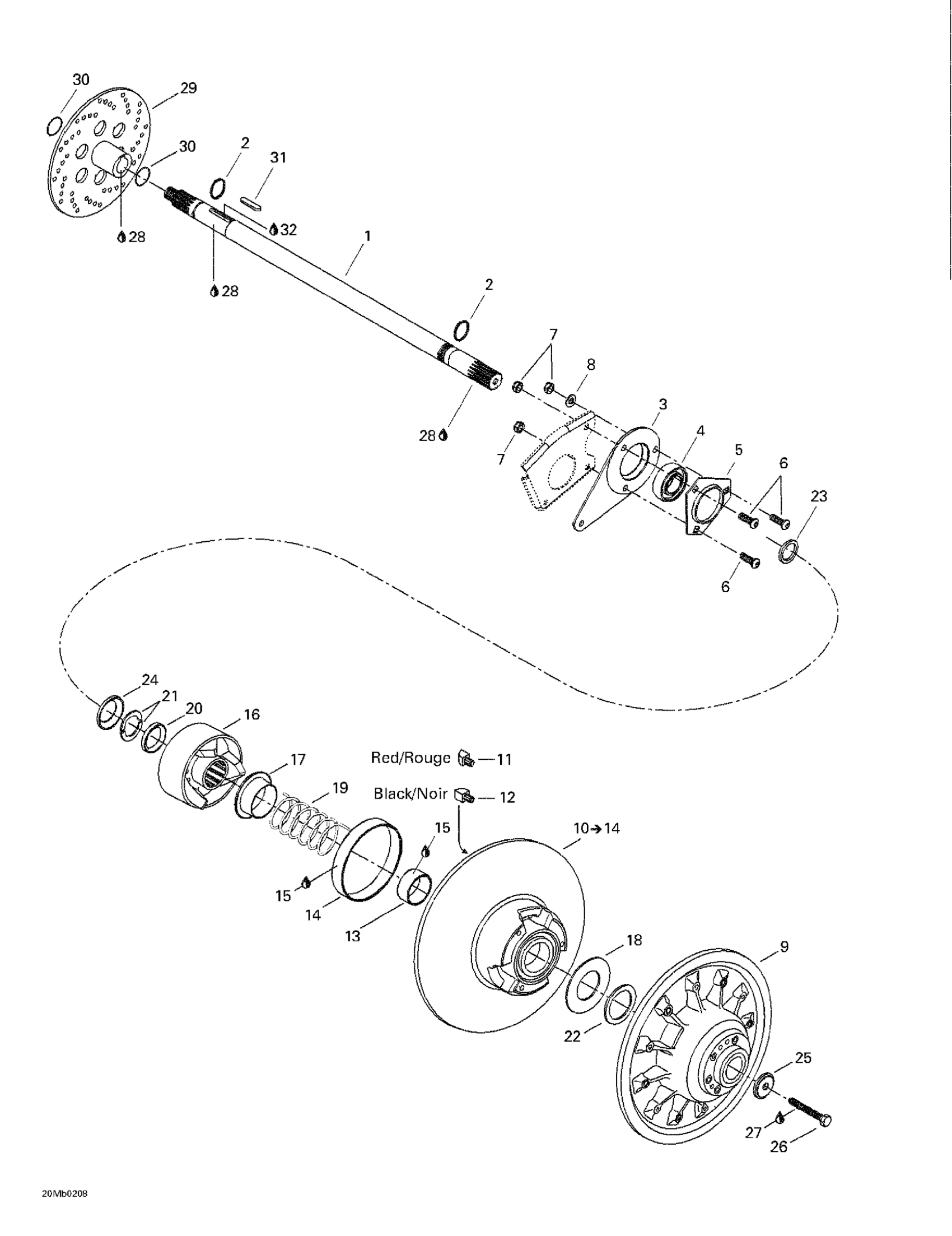

Ski-Doo Legend 380F/500F, 2002 05- Driven Pulley Diagram
#
Description
Price
1
Countershaft | 380F
504152041
Unavailable
COUNTERSHAFT - Call your local BRP dealership | 550F
504151858
Unavailable
4
BALL BEARING - Call your local BRP dealership
504152008
Unavailable
5
FLANGE - Call your local BRP dealership
501025000
Unavailable
6
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
9
Fixed Flange Ass'y
417126526
Unavailable
10
Sliding Flange Ass'y | Includes 2 to 6
417126403
Unavailable
13
BUSHING - Call your local BRP dealership
417126901
Unavailable
14
Bushing
415092700
Unavailable
16
CAM ASS'Y - Call your local BRP dealership
417126445
Unavailable
Cam Ass'y
417124700
Unavailable
17
GUARD - Call your local BRP dealership
415006000
Unavailable
18
STOPPER WASHER - Call your local BRP dealership
504099600
Unavailable
19
YELLOW SPRING - Call your local BRP dealership
415092800
Unavailable
20
Spacer
417126375
Unavailable
21
HALF KEY - Call your local BRP dealership
371911000
Unavailable
22
SHIM - Call your local BRP dealership
504112300
Unavailable
24
Protector
417300055
Unavailable
26
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
28
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
29
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
Brake Disk
507032203
Unavailable
30
O'RING - Call your local BRP dealership
414928900
Unavailable
31
KEY - Call your local BRP dealership
507021300
Unavailable
32
Loctite 277, 10 ml
293800073
Unavailable
