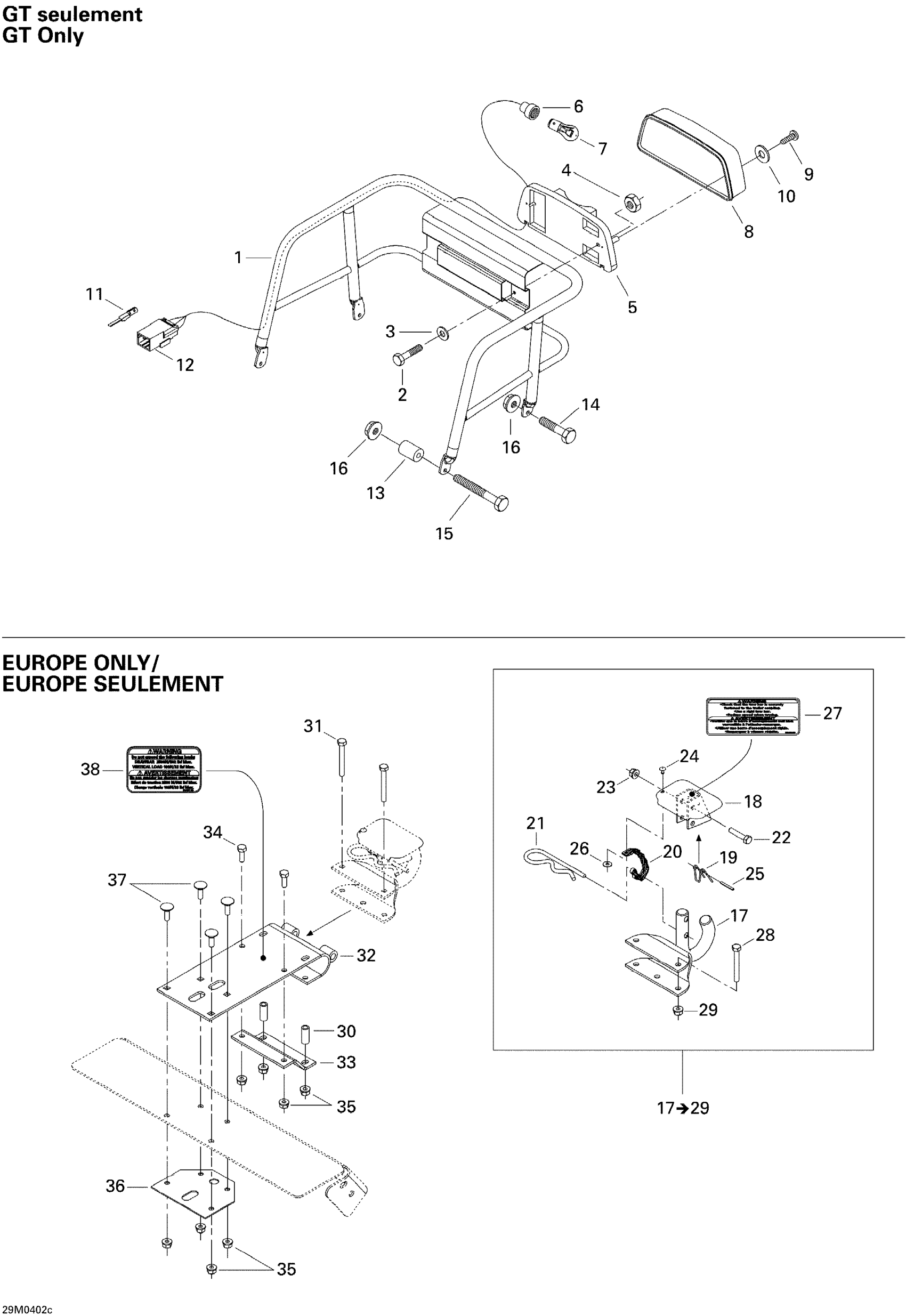

Ski-Doo Legend 380F, 2004 Rack (GT) Diagram

#

Description
Price

1

Rack | GT

517273100

Unavailable

2

Hex. Screw M5 X 30

207053044

$0.98

3

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

4

Hex. Flange Elastic Nut M5

233251414

$1.66

5

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Bulb

520000758

$7.49

8

Lens

414513700

$26.89

9

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

10

Washer - Call your local BRP dealership

414516400

Unavailable

11

Male Terminal

515175232

$1.49

12

Male Housing, 3 Circuits

515175494

$15.35

13

Spacer

517185600

Unavailable

14

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

15

Hex. Screw M6 X 40

207064044

$1.48

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

17

Hitch | Europe

517199300

Unavailable

18

Hitch Protector | Europe

517152700

Unavailable

19

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hair Pin

114045200

$10.69

22

Hex. Screw M6 X 30

207063044

$0.98

23

Elastic Stop Nut M6

232561414

$1.55

24

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

25

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Security Label, Hitch

516001243

Unavailable

28

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

30

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

31

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

32

Support

511000019

Unavailable

33

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

34

Hex. Screw M6 X 18

207161844

$0.62

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Inner Plate

517256100

Unavailable

37

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

38

Security Label, Hitch | Europe

516001709

Unavailable
