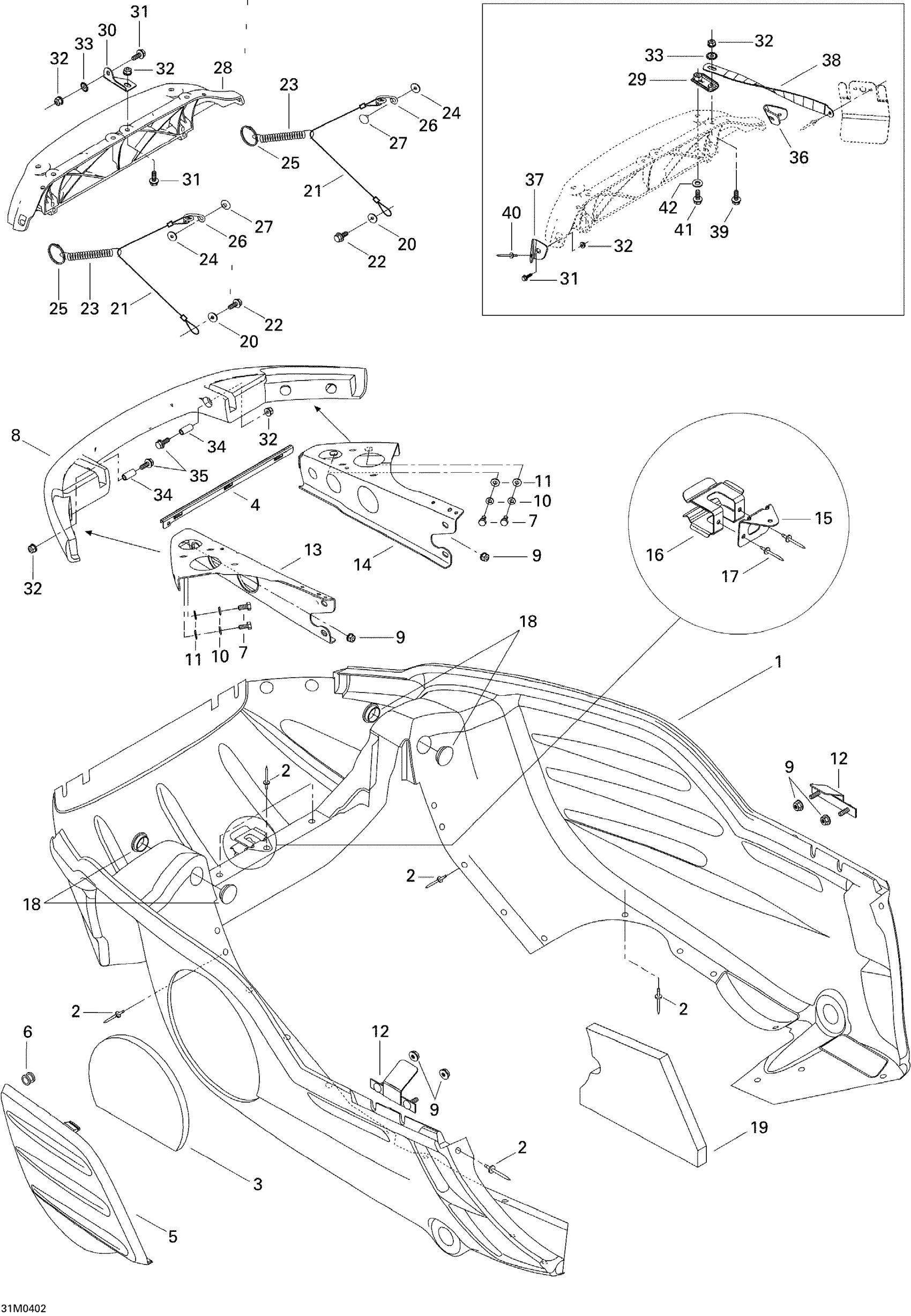

Ski-Doo Legend 380F, 2004 Bottom Pan Diagram

#

Description
Price

1

Deep Black, Bottom Pan

502006633

Unavailable

2

Pop Rivet 3/16”

293150108

$1.23

3

Bottom Pan Door Foam

502006559

Unavailable

4

Bottom Pan Reinforcement

502006647

Unavailable

5

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

6

Grommet

414036300

$2.22

7

Hex. Screw M6 X 14

207161444

$0.48

8

Bumper, Black

502006719

$98.43

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Lock Washer M6, Black

234161471

$0.52

11

Flat Washer

224061121

$0.44

12

LH Bracket

502006645

Unavailable

13

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

14

RH Support

502006602

Unavailable

15

Belt Support

502006599

Unavailable

16

Bracket

517281905

$15.35

17

Pop Rivet 3/16"

390402400

$0.25

18

Black, Nylon Cap

414916600

$4.32

19

Bottom Foam

502006558

Unavailable

20

Washer | DS 650 X

391301600

$0.48

21

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Spring

415043300

Unavailable

24

Washer

517124300

$0.16

25

RING - Call your local BRP dealership

415058300

Unavailable

26

Bracket

517262800

Unavailable

27

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

28

Hinge

517302631

$46.12

29

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

30

Hinge Center Plate

517302045

Unavailable

31

Hex. Flange Screw M6 X 16

207661654

$1.74

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Lock Washer Serrated M6

250200041

$0.92

34

BUSHING - Call your local BRP dealership

517302179

Unavailable

35

Hex. Flange Screw M6 X 35

207663544

$0.74

36

RH Corner Support

517302254

Unavailable

37

LH Corner Support

517302255

Unavailable

38

HOOD CLAMP - Call your local BRP dealership

517302837

Unavailable

39

Hex. Flange Screw M6 X 25

207662544

$0.53

40

Pop Rivet 3/16"

390406500

$0.70

41

Hex. Forming Screw M6 X 20

207162060

$1.03

42

Flat Washer M6, Stainless

234062600

$0.64
