1981 Yamaha LC50 (LC50H) Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

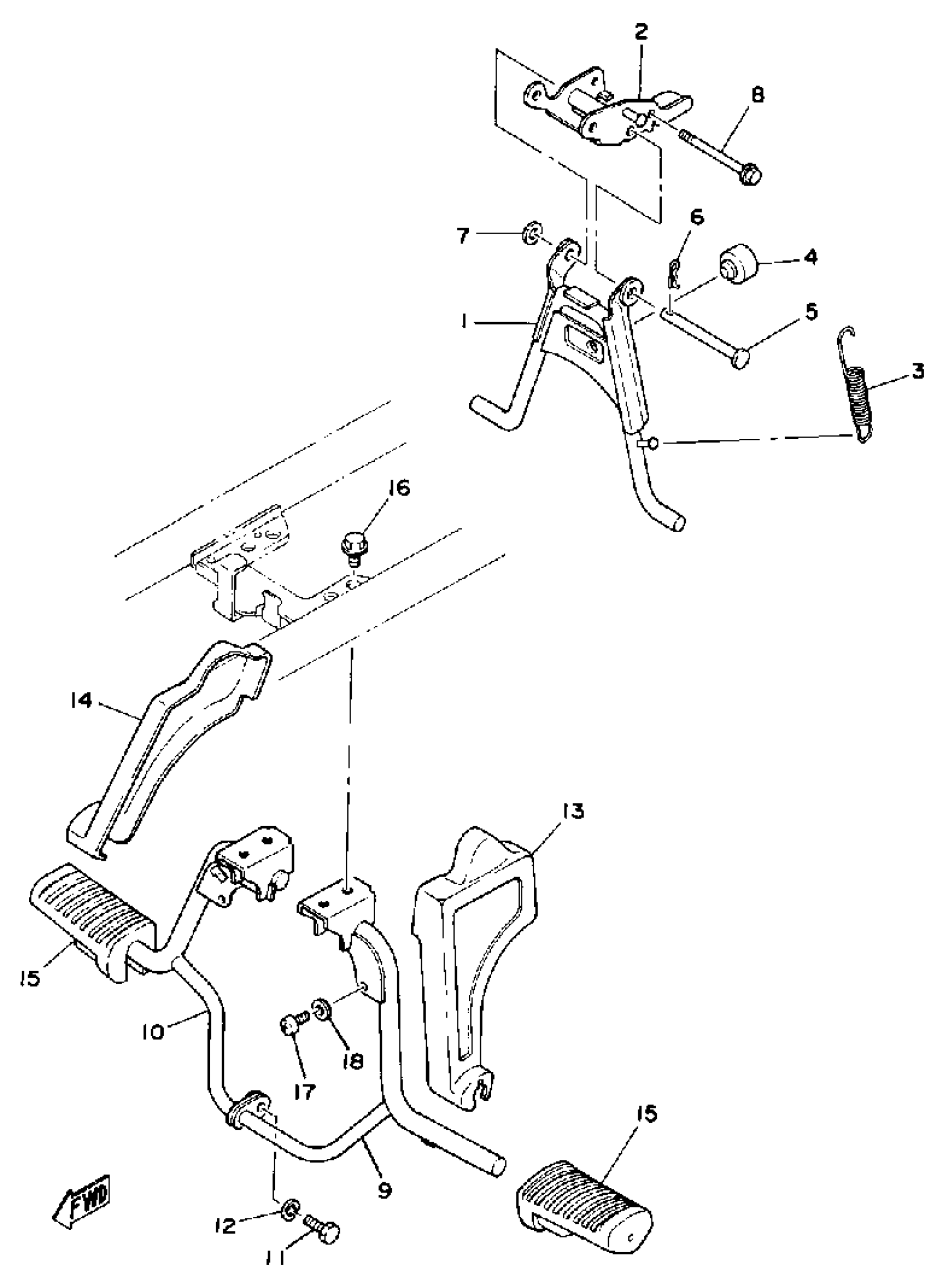

1981 Yamaha LC50 (LC50H) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, MAIN

3L6-27111-02-33

1
Out of stock

2

BRACKET, MAIN STAND

3L5-27151-02-00

1

$37.34

In stock

3

1

$9.80

In stock

4

STOPPER MAIN STAND

278-27114-00-00

1

$8.45

In stock

5

PIN, CLEVIS(1YU)

90240-08121-00

1

$8.54

In stock

6

CLIP 136253750000

90468-12006-00

1

$5.10

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

BOLT, WASHER BASED

90105-06809-00

1

$1.38

In stock

9

FOOTREST 1

3L6-27411-01-33

1
Out of stock

10

FOOTREST 2

3L6-27421-00-33

1
Out of stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

COVER, FOOTREST 1

3L6-27453-02-00

1
Out of stock

14

COVER, FOOTREST 2

3L6-27463-02-00

1
Out of stock

15

COVER, FOOT REST

441-27413-01-00

1

$15.43

In stock

16

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

. WASHER, PLATE

90201-06050-00

1
Out of stock
