1981 Yamaha LC50 (LC50H) Frame - Tool Diagram

← All diagrams

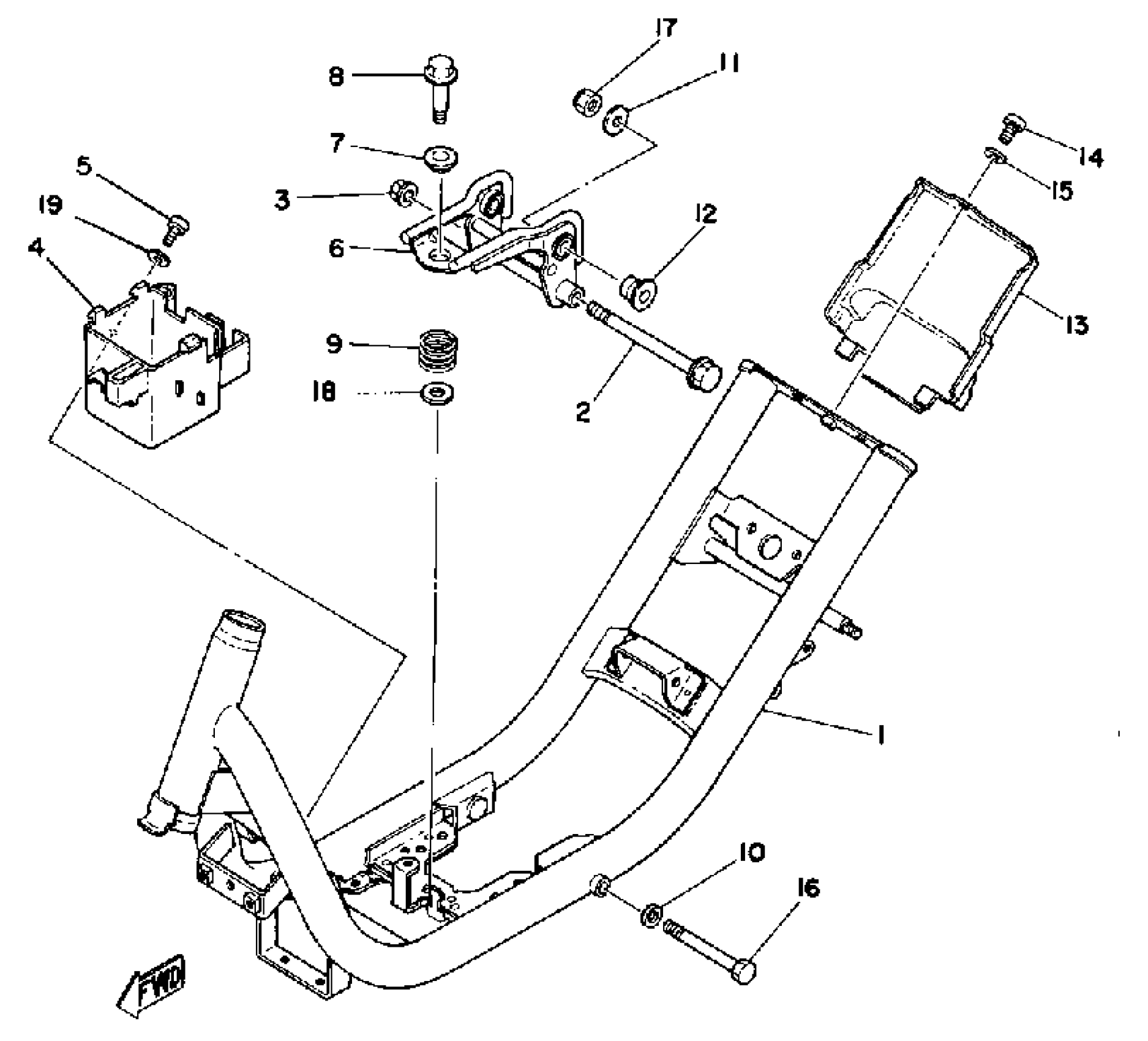

Find the part on the Frame - Tool diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha LC50 (LC50H) Frame - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3L6-21110-02-4G)

1
Out of stock

1

FRAME

(3L6-21110-02-E1)

1
Out of stock

2

BOLT, WASHER BASED

(90105-10134-00)

1
Out of stock

3

NUT, SELF-LOCKING

90185-10170-00

1

$7.98

In stock

4

BOX, TOOL

(3L6-21171-00-00)

1
Out of stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

ENGINE BRKT

(3L6-21410-02-00)

1
Out of stock

7

WASHER, SPEC''L SHAP

(90209-12184-00)

1
Out of stock

8

BOLT

(90109-10544-00)

1
Out of stock

9

SPRING, COMPRESSION

(90501-35571-00)

1
Out of stock

10

WASHER, PLATE

90201-10758-00

1
Out of stock

11

WASHER, PLATE(3GM)

90201-106M5-00

1

$6.92

In stock

12

COLLAR

(90387-10736-00)

1
Out of stock

13

PANEL, FRAME

(3L6-21221-00-00)

1
Out of stock

14

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

15

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

16

BOLT

90101-10452-00

1
Out of stock

17

NUT, U

95617-10100-00

—
Out of stock

18

WASHER, PLATE (3L6)

90201-10774-00

—

$6.25

In stock

19

. WASHER, PLATE

90201-06050-00

1
Out of stock
