Description

Price

1

KICK SHAFT ASSY

3L5-15601-01-00

$42.99

2

GUIDE, SPRING

3L5-15664-00-00

$20.99

3

SPRING, TORSION (3L5)

90508-28399-00

$12.49

4

KICK CRANK ASSEMBLY

34M-15620-00-00

Unavailable

5

LEVER, KICK

(4K5-15612-00-00)

Unavailable

6

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

7

WASHER,SPEC'L SHAPE

90209-10210-00

Unavailable

8

. CIRCLIP, OUTER

93440-10028-00

Unavailable

9

COVER, KICK LEVER

156-15618-01-00

$7.99

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

GEAR, KICK PINION (13T)

3L5-15631-00-00

$79.99

12

CLIP

3L5-15673-00-00

$7.99

13

GEAR, DRIVE

3L5-13178-00-00

$129.99

14

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

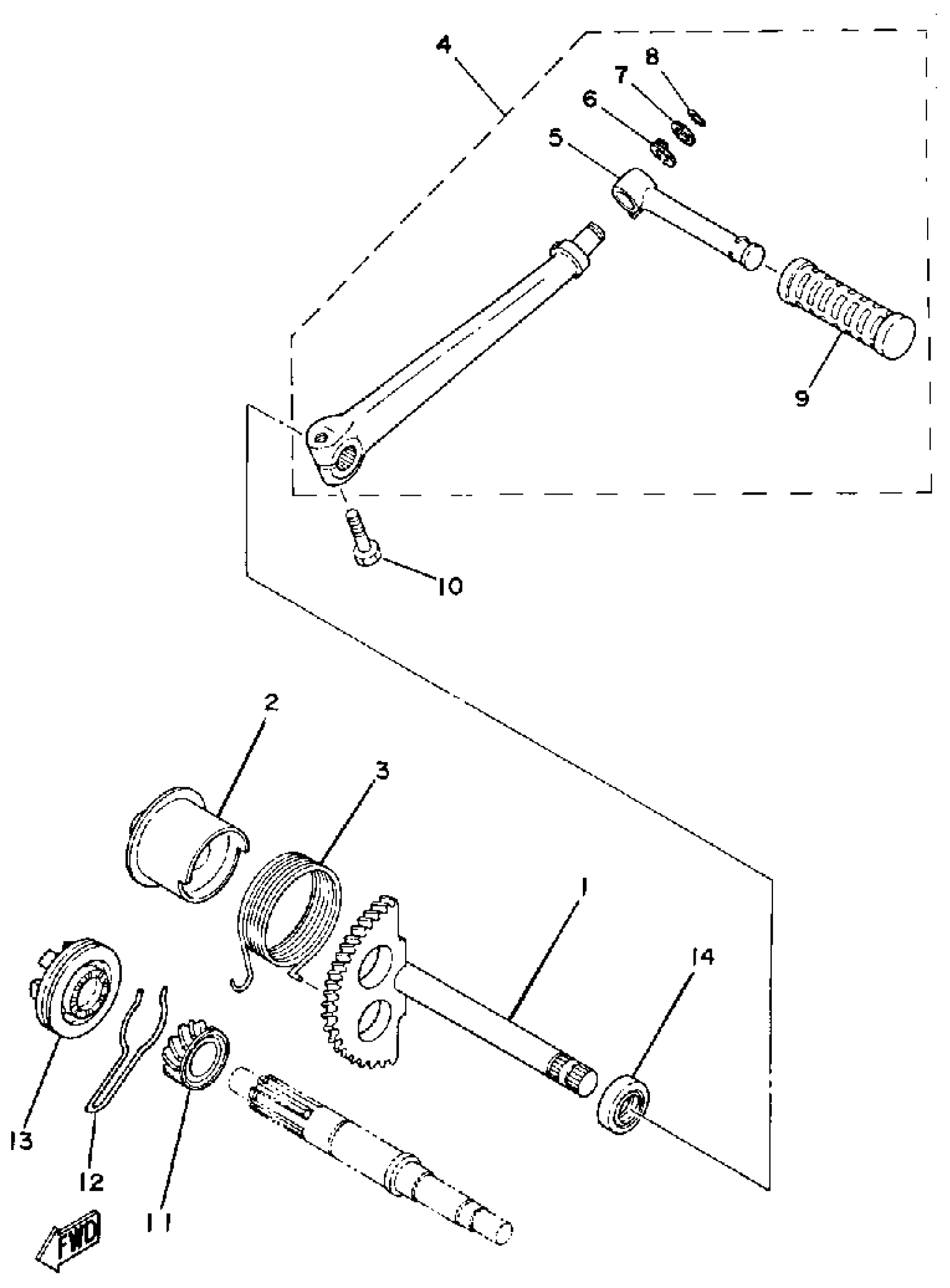

Yamaha LC50H (LC50) 1981 KICK STARTER Diagram

KICK SHAFT ASSY

GUIDE, SPRING

SPRING, TORSION (3L5)

KICK CRANK ASSEMBLY

LEVER, KICK

SPRING, COMPRESSION (5L1)

WASHER,SPEC'L SHAPE

. CIRCLIP, OUTER

COVER, KICK LEVER

BOLT, HEXAGON

GEAR, KICK PINION (13T)

CLIP

GEAR, DRIVE

OIL SEAL (15X26X6-102)
