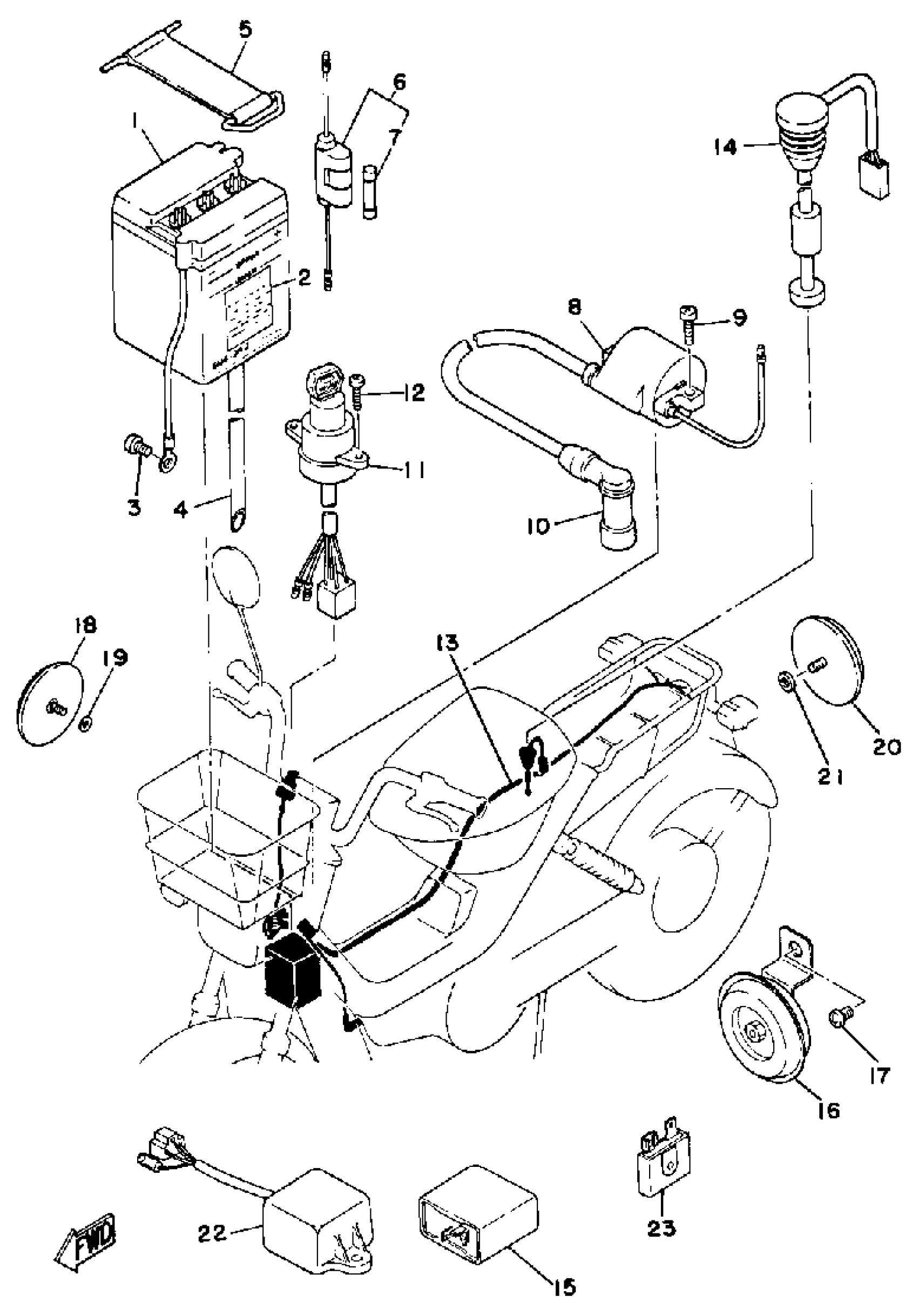

Yamaha LC50H (LC50) 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

4

PIPE, BREATHER

(3L6-82112-00-00)

Unavailable

5

BAND, BATTERY

2N3-82131-00-00

$7.99

6

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

7

FUSE

1A0-82151-00-00

$16.49

8

IGNITION COIL ASSY

4RP-82310-26-00

$73.99

9

SCREW, PAN

98507-06014-00

$8.49

10

PLUG CAP ASSY

7KA-82370-00-00

$67.99

10

PLUG CAP ASSY

56J-82370-00-00

$64.99

11

MAIN SWITCH ASSEMBLY

3L8-82510-20-00

Unavailable

12

SCREW

98980-04016-00

Unavailable

13

WIRE HARNESS ASSEMBLY

(3L9-82590-20-00)

Unavailable

14

OIL LVL GAUGE ASSEMBLY

(3L6-85720-01-00)

Unavailable

15

FLASHER RELAY ASSY

3BK-83350-00-00

Unavailable

16

HORN

3L6-83371-11-00

Unavailable

17

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

18

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

19

WASHER, PLATE(3AJ)

90202-05191-00

Unavailable

20

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

21

WASHER, PLATE(3AJ)

90202-05191-00

Unavailable

22

CDI UNIT ASSY

3L4-85540-M1-00

Unavailable

23

RECTIFIER ASSY

353-81970-M2-00

Unavailable
