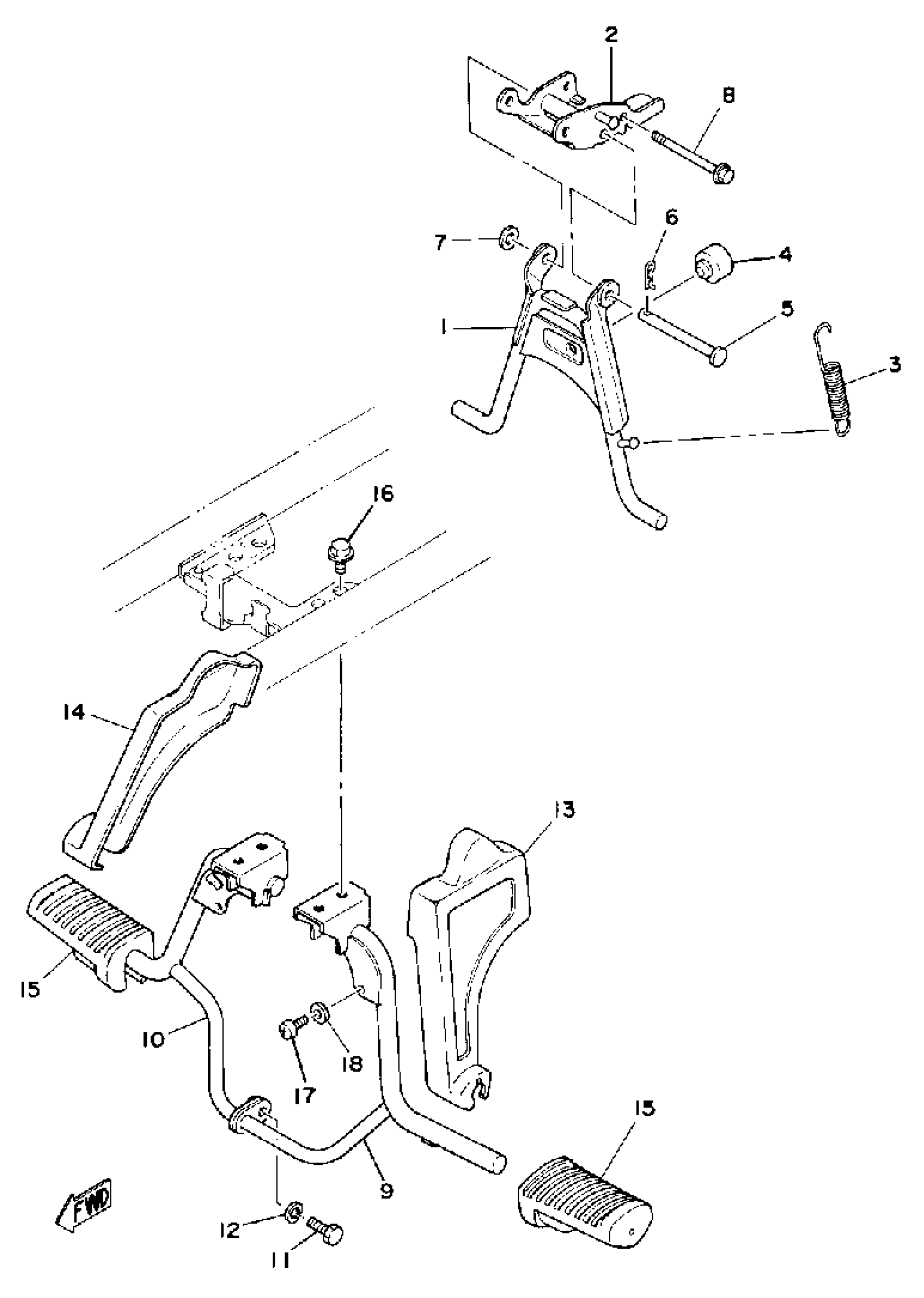

Yamaha LC50G (LC50) 1980 STAND-FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

3L6-27111-02-33

Unavailable

2

BRACKET, MAIN STAND

3L5-27151-02-00

$41.99

3

SPRING TENSION 146273160000

90506-29052-00

$11.49

4

STOPPER MAIN STAND

278-27114-00-00

$8.99

5

PIN, CLEVIS(1YU)

90240-08121-00

$9.49

6

CLIP 136253750000

90468-12006-00

$8.49

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

BOLT, WASHER BASED

90105-06809-00

$2.17

9

FOOTREST 1

3L6-27411-01-33

Unavailable

10

FOOTREST 2

3L6-27421-00-33

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

COVER, FOOTREST 1

3L6-27453-02-00

Unavailable

14

COVER, FOOTREST 2

3L6-27463-02-00

Unavailable

15

COVER, FOOT REST

441-27413-01-00

$17.49

16

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

. WASHER, PLATE

90201-06050-00

Unavailable
