1980 Yamaha LC50 (LC50G) Oil Pump Diagram

← All diagrams

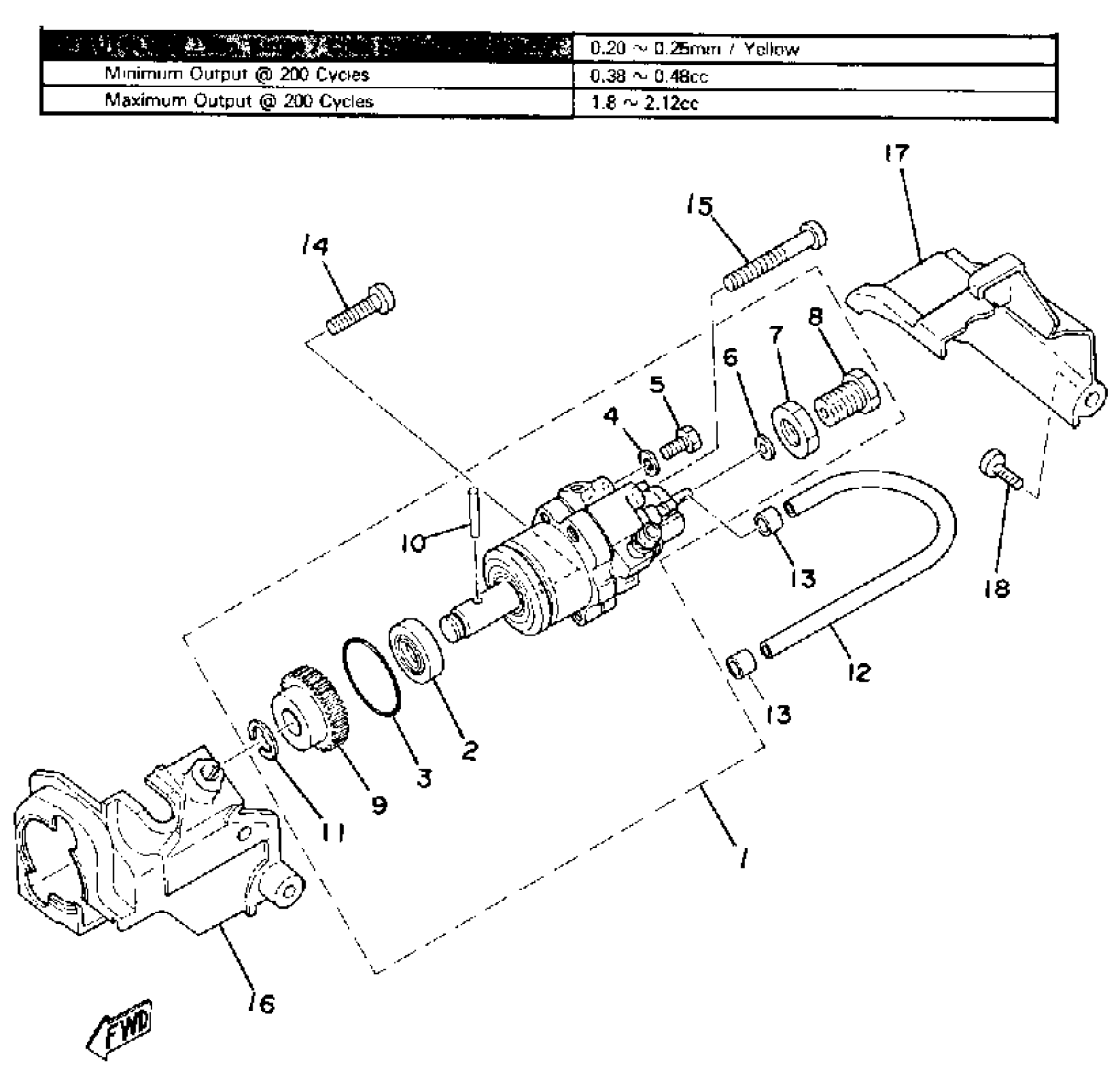

Find the part on the Oil Pump diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha LC50 (LC50G) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

3L5-13101-01-00

—
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1
Out of stock

3

O-RING

93210-26240-00

1
Out of stock

4

GASKET 137131870000

90430-04004-00

1
Out of stock

5

SCREW (3L5)

90149-04135-00

1
Out of stock

6

PLATE, ADJUSTING

384-13138-00-00

1
Out of stock

7

NUT

90170-10105-00

—
Out of stock

8

BOLT, UNION (527 CKD)

90401-10029-00

—
Out of stock

9

GEAR, WORM WHEEL (56T)

3L5-13124-00-00

—
Out of stock

10

PIN, DOWEL

93603-14026-00

1
Out of stock

11

CIRCLIP

99080-07600-00

1
Out of stock

12

PIPE, DELIVERY 1 (L200)

34M-13161-00-00

1
Out of stock

13

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

14

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

15

SCREW, PAN

98507-05035-00

1
Out of stock

16

COVER, OIL PUMP

17J-15416-00-00

1
Out of stock

17

COVER, OIL PUMP 2

3L5-15426-00-00

—
Out of stock

18

SCREW, PANHEAD TAPPING (682)

97780-50514-00

1
Out of stock
