1980 Yamaha LC50 (LC50G) LEG Shield Diagram

← All diagrams

Find the part on the LEG Shield diagram for your 1980 Yamaha LC50 (LC50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

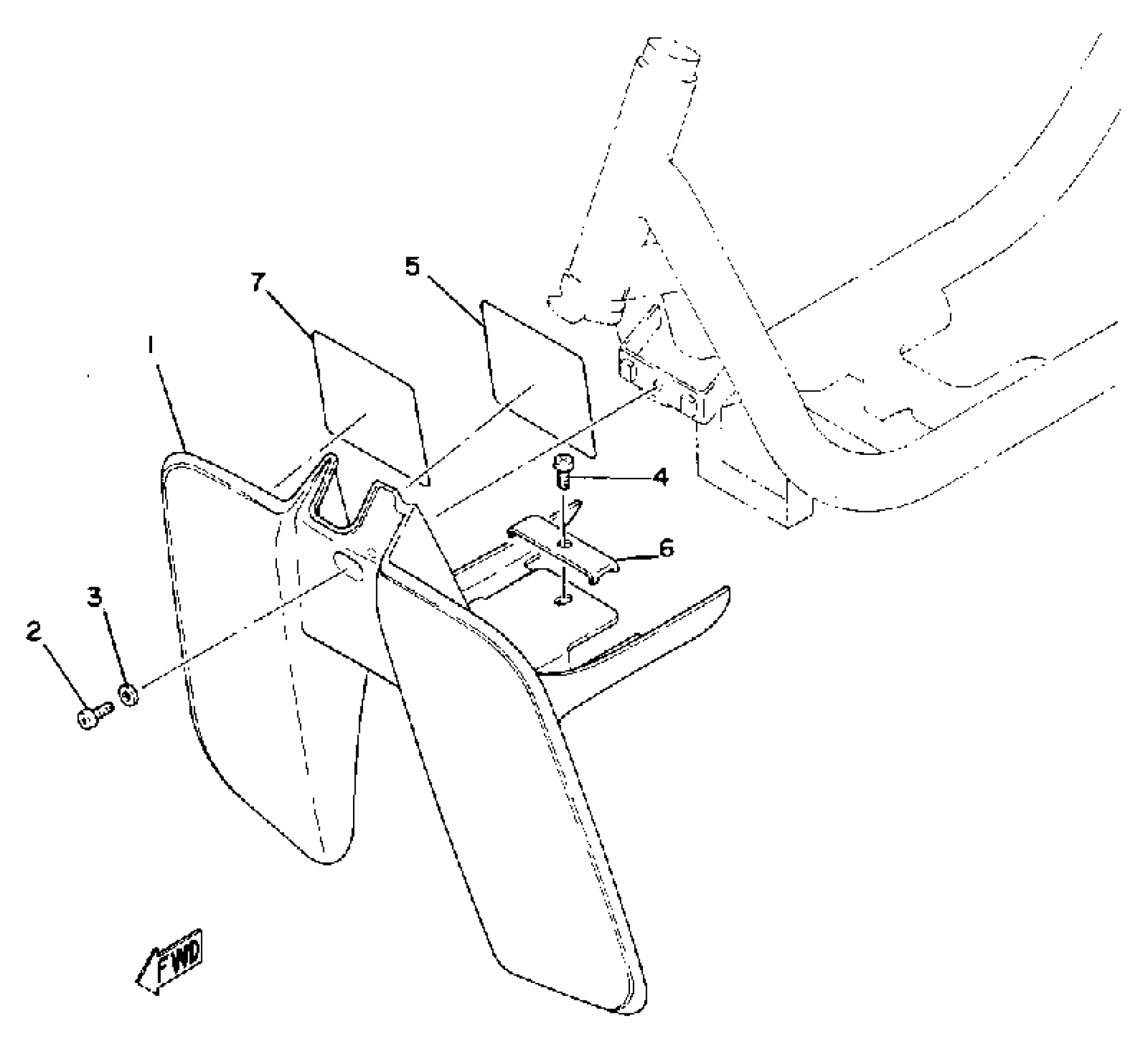

1980 Yamaha LC50 (LC50G) LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEG SHIELD 1

3L6-28311-00-00

1
Out of stock

2

SCREW, PAN

98507-06014-00

1

$6.18

In stock

3

. WASHER, PLATE

90201-06050-00

1
Out of stock

4

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

5

LABEL, CAUTION

(3L9-2415E-00-00)

1
Out of stock

6

WASHER

(3L6-28319-00-00)

1
Out of stock

7

LABEL, CAUTION

(3L9-2415E-00-00)

1
Out of stock
