Description

Price

1

HEAD LAMP UNIT ASSY

388-84110-61-00

Unavailable

2

LENS ASSY

388-84120-61-00

$149.99

3

SOCKET

371-84312-60-00

Unavailable

4

. RIM, HEADLIGHT

261-84315-61-00

Unavailable

5

SPRING

(132-84335-60-00)

Unavailable

6

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

NUT(6L4)

95380-04700-00

Unavailable

9

SCREW, RIM ADJUSTING

(198-84331-60-00)

Unavailable

10

. COLLAR, SCREW

233-84133-60-00

Unavailable

11

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

12

. SPACER

132-84328-60-00

Unavailable

13

NUT(6L4)

95380-04700-00

Unavailable

14

NUT, ADJUST

198-84334-60-00

$7.99

15

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

16

BODY ASSEMBLY, HEADLIGHT

393-84130-61-5F

Unavailable

16

BODY, HEAD LAMP

393-84130-61-E1

Unavailable

17

BOLT

90109-08534-00

Unavailable

18

NUT, FLANGE

95704-08500-00

Unavailable

19

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

20

WASHER, PLATE(3AJ)

90202-05191-00

Unavailable

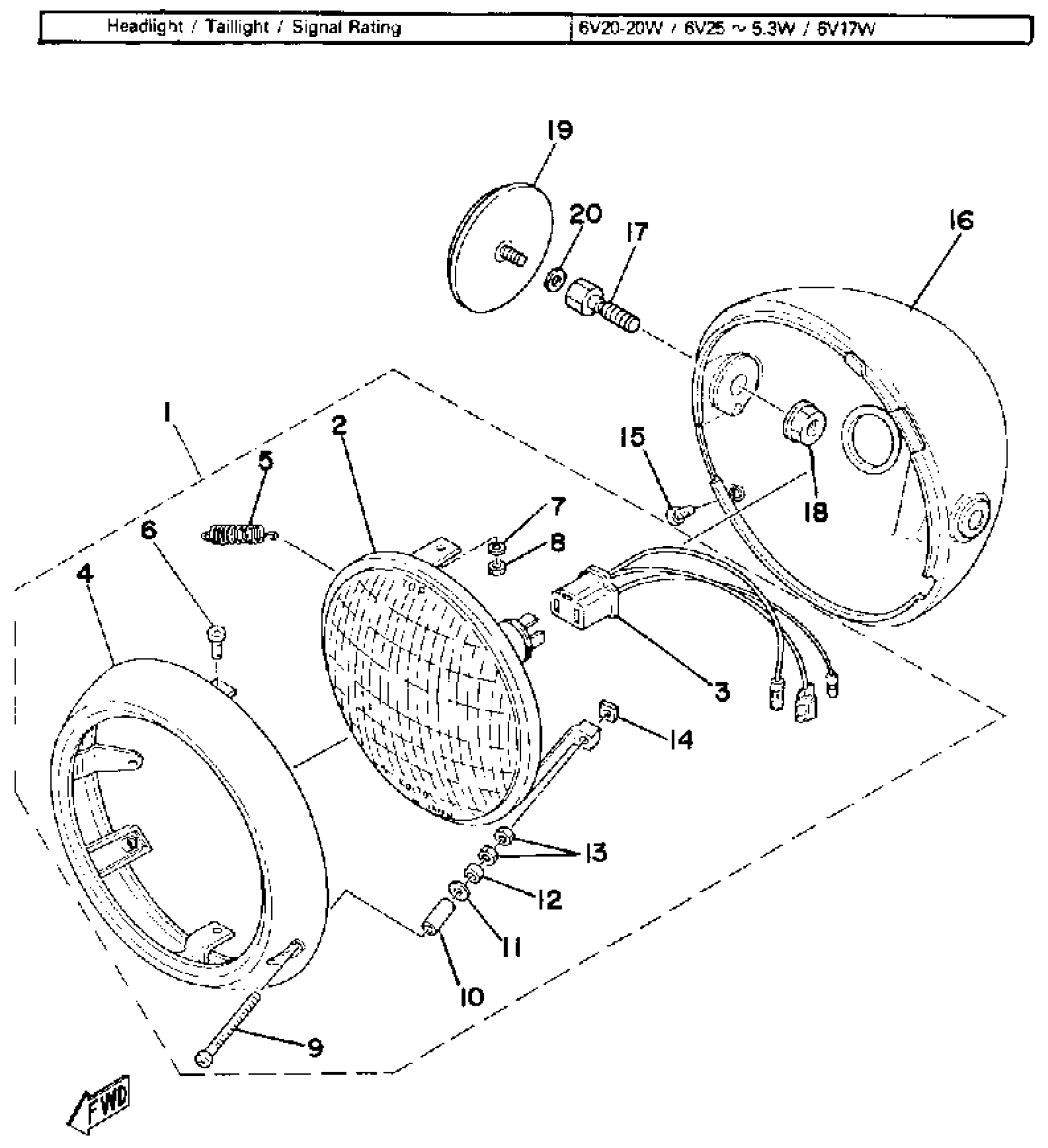

Yamaha LC50G (LC50) 1980 HEADLIGHT Diagram

HEAD LAMP UNIT ASSY

LENS ASSY

SOCKET

. RIM, HEADLIGHT

SPRING

SCREW, PAN HEAD (E56)

YBS67-4 WASHER, SPRING

NUT(6L4)

SCREW, RIM ADJUSTING

. COLLAR, SCREW

YBS66-4 WASHER, PLAIN

. SPACER

NUT(6L4)

NUT, ADJUST

SCREW, OVAL HEAD (1A0)

BODY ASSEMBLY, HEADLIGHT

BODY, HEAD LAMP

BOLT

NUT, FLANGE

REFLECTOR, FRONT 1

WASHER, PLATE(3AJ)
