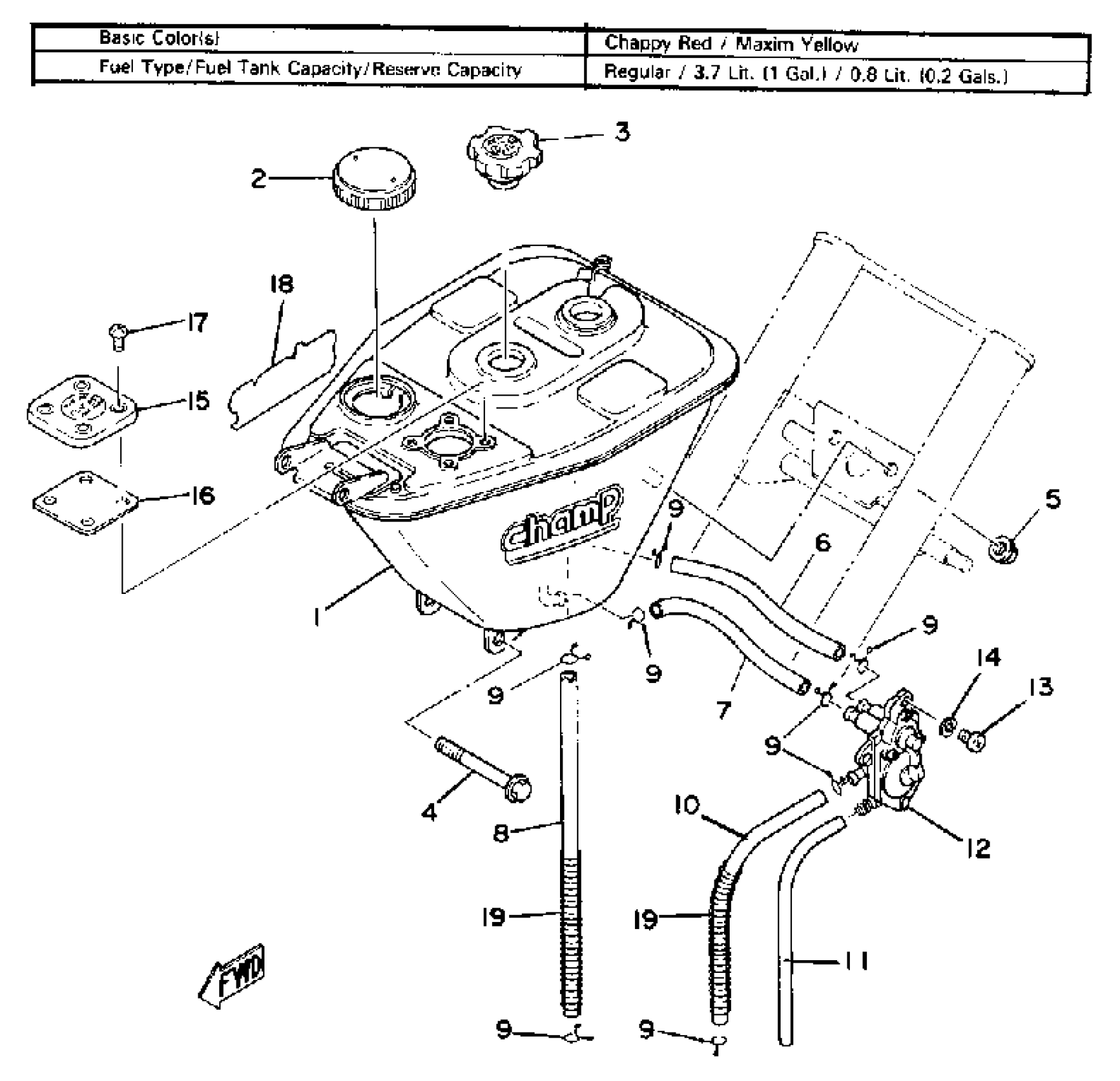

Yamaha LC50G (LC50) 1980 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(3L6-24110-00-5F)

Unavailable

1

FUEL TANK

3L6-24110-00-E1

Unavailable

2

CAP ASSY

22F-24610-10-00

Unavailable

3

. OIL TANK CAP ASSY

52W-21770-00-00

Unavailable

4

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

5

NUT, FLANGE

95704-08500-00

$8.49

6

HOSE (L420)

90445-092K1-00

$12.49

7

HOSE (L420)

90445-092K1-00

$12.49

8

HOSE (L420)

90445-092K1-00

$12.49

9

CLIP 101235600

90467-08003-00

$10.49

10

HOSE (L420)

90445-092K1-00

$12.49

11

HOSE (L200)

90445-07176-00

$7.60

12

FUEL COCK ASSEMBLY 1

3L9-24500-00-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

CAP ASSEMBLY

3L8-24610-00-00

Unavailable

16

GASKET, FUEL METER

(3L5-24268-00-00)

Unavailable

17

BOLT, WITH WASHER

90119-05071-00

Unavailable

18

EMBLEM 1

(3L9-24231-00-00)

Unavailable

19

SPRING, COMPRESSION

90504-06023-00

Unavailable
