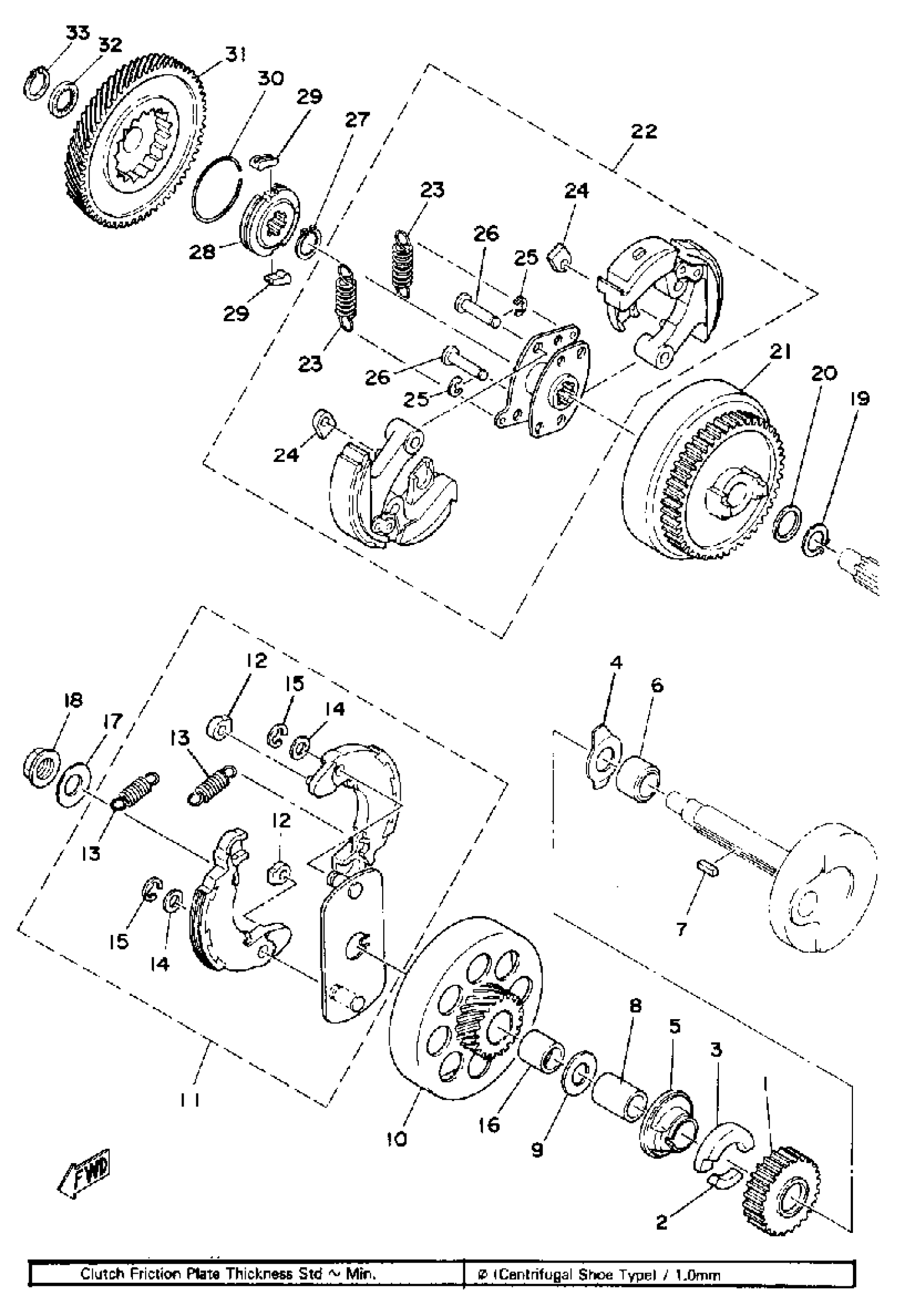

Yamaha LC50G (LC50) 1980 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

3L5-16111-00-00

$127.99

2

ABSORBER

3L5-16115-00-00

$5.49

3

ABSORBER

3L5-16125-00-00

$8.99

4

PLATE

3L5-16114-00-00

$6.99

5

SPACER 1

3L5-16181-01-00

$39.99

6

COLLAR (3L5)

90387-16730-00

$18.99

7

KEY, STRAIGHT (3L5)

90282-05034-00

$9.49

8

COLLAR

(90387-16731-00)

Unavailable

9

WASHER PLATE (3L6)

90201-16245-00

$10.49

10

HOUSING, CLUTCH

3L6-16611-00-00

Unavailable

11

CLUTCH CARRIER ASSEMBLY

3L6-16620-01-00

Unavailable

12

DAMPER, CLCH WEIGHT

(2E9-16629-00-00)

Unavailable

13

. SPRING, TENSION

90506-20165-00

Unavailable

14

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

15

CIRCLIP

99080-07600-00

Unavailable

16

COLLAR

90387-16680-00

Unavailable

17

WASHER, CONICAL SPR

90208-12007-00

Unavailable

18

NUT(1EE)

90179-12659-00

Unavailable

19

CIRCLIP(13T)

99009-16400-00

Unavailable

20

WASHER, PLATE (384)

90201-16383-00

Unavailable

21

HOUSING, CLUTCH

(3L6-16604-00-00)

Unavailable

22

CLUTCH CARRIER ASSEMBLY

3L6-16630-00-00

Unavailable

23

. SPRING, CLUTCH WT 2

3L6-16627-00-00

Unavailable

24

DAMPER, CLUTCH WEIGHT

2T4-16629-01-00

Unavailable

25

CIRCLIP (EU0)

99080-04600-00

Unavailable

26

SHAFT, CLUTCH WT 2

(3L6-16673-00-00)

Unavailable

27

CIRCLIP(13T)

99009-16400-00

Unavailable

28

ONE WAY BOSS

3L6-16180-00-00

Unavailable

29

PAWL, ONE WAY

384-15635-00-00

Unavailable

30

SPRING, PAWL

2T4-15637-01-00

Unavailable

31

PRI DRVN GEAR

3L6-16150-01-00

Unavailable

32

WASHER, SPEC''L SHAP

90209-13185-00

Unavailable

33

CIRCLIP(13T)

99009-16400-00

Unavailable
